10/100M 1 SFP port 1 RJ45 Media Converter

Factory Price 10/100M Fiber Converter Ethernet sfp Media Converter

 Description

1. 10/100m sfp optical media converter can convert Optical-Electric Ethernet signals between 10/100M UTP interface (TX) and 100M optical fiber interface (FX)
2.  It could extend traditional 10/100M Fast Ethernet to the distance of 90km through single optical fiber link. It possesses stable performance and good quality by adopting latest IC from USA and Taiwan.
3.  It must be used in couples,because the transmitted optical differs from the receive optical in wavelength. 6 Group LED indicated lights could fully monitor the working conditions of Converters.
4.  It is easy for users to observe network operation.

Feature

1. 1000Base-T to 1000BASE-SX/LX Converter
2. Standard : IEEE 802.3z & 802.3ab
3. Interface: 1 x RJ-45 connector
4. 1 x SFP Slot
5. MDI/MDIX Auto-Crossover supported
6. LED: Power , DUP,FP-LINK,RX,1000,TX
7. Plug-and-Play installation
8. Support Link Alarm
9. Support Jumbo Frame (64-9216 Byte)
10. Support Voltage Monitor
11. Supporting 1600 bytes packet for management.
12. Converter working mode could be chosen: Store and forward switch mode, Modified cut-through switch mode, or Converter mode.
13. Auto negotiation function allows UTP port to auto select 10M or 100M and Full Duplex or Half Duplex
14. Internal circuit of prevented thunder could greatly reduce damage of converters caused by thunderbolt induction.

Specification

1. Standard Protocol:IEEE802.3u,10/100Base-TX and 100Base-FX;
2. Connector:UTP Connector: RJ-45, 10/100Mbps; Fiber Connector: SC, 100Mbps
3. Cable UTP: Cat. 5 UTP cable (the max distance up to100m)
4. Operation mode: full duplex mode or half duplex mode
5. LED Power, FX SD, FX Link/Act, TX 100, TX FDX, TX Link/Act.
6. Power supply parameter:
7. Outside: 5V DC 1A Built-in: 110-265V AC 48VDC
8. Environmental temperature: 0℃-60 ℃
9. Relative humidity: 5%-90%
10. TP cable: Cat5 UTP cable
11. Fiber :50/125,62.5/125um multi-mode fiber ; 9/125,10/125um single-mode fiber.
12. Dimensions: External power supply: 26mmx 71mm x 94mm

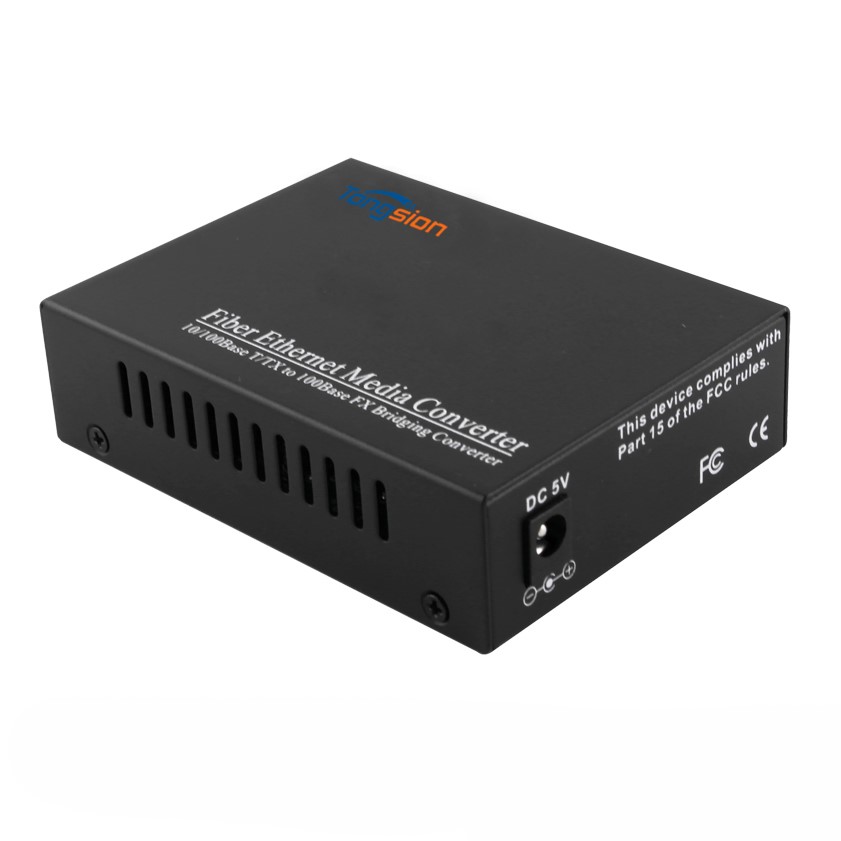

Product Picture

Shipping and Payment

Company Information

FAQ

1.    Are you the real manufacturer?

Yes. We are direct manufacturers of optical transceiver, media converter, POE switch, DAC/AOC cables, Patch cord, Fast connector and so on.

2.    Do you offer Compatible Services?

Yes, we offer compatible service with Cisco, Nortel, Huawei, Extreme, Foundry, Alcatel, Allied, HP, 3COM, Juniper, Enterasys....

3.    Does Tongsion accept a small order?

Yes, it is available. Tongsion support new projects of our customers and a long-term trustworthy relationship always starts from a small order.

4.    Can you supply OEM products under our brand?

Yes, we are manufacturer, we accept OEM service, you just need send us your detailed requirements.

5.   What payment methods do you support?

The methods are followed: T/T, Trade Assurance, Western Union and PayPal.

6.   Do you support sample service?

Of course, all of our products support sample services, samples are divided into paid and free

7.  What if there is quality problem when we get the goods?

If there is quality problem, you can take pictures for our reference, our QC department will check the problem and give best solutions to you, refund or return.
