1000Base-TX 1 SFP port 2 RJ45 Ports Media Converter

Place of Original: China
Brand Name: Tongsion/OEM
Model Number: TS-1G2ES-S20
MOQ: 1PC
Price: Negotiable
Packing Details: Plastic bag +inner box+outer carton
Delivery Time: 4-5 working days after payment
Payment Term: T/T, paypal, Western Union, Payoneer
Supply Ability: 50000pcs/Month

Factory Price 10/100/1000M Fiber Converter Ethernet sfp Media Converter

Product NameSFP Media Converter, SFP Fiber SwitchDatarate10/100M or 10/100/1000M
Wavelength1310nm-1610nmTransmission Distance550M-120KM
ConnectorSC ST FCFiber TypeDuplex, Single Mode
Power SupplyExternal/internal Power SupplyWarranty3 Years
High Lightsfp media converter, gigabit ethernet media converter, Optical Switch

 Description

1. 10/100m sfp optical media converter can convert Optical-Electric Ethernet signals between 10/100M UTP interface (TX) and 100M optical fiber interface (FX)
2.  It could extend traditional 10/100M Fast Ethernet to the distance of 90km through single optical fiber link. It possesses stable performance and good quality by adopting latest IC from USA and Taiwan.
3.  It must be used in couples,because the transmitted optical differs from the receive optical in wavelength. 6 Group LED indicated lights could fully monitor the working conditions of Converters.
4.  It is easy for users to observe network operation.

Feature

1. 1000Base-T to 1000BASE-SX/LX Converter
2. Standard : IEEE 802.3z & 802.3ab
3. Interface: 1 x RJ-45 connector
4. 1 x SFP Slot
5. MDI/MDIX Auto-Crossover supported
6. LED: Power , DUP,FP-LINK,RX,1000,TX
7. Plug-and-Play installation
8. Support Link Alarm
9. Support Jumbo Frame (64-9216 Byte)
10. Support Voltage Monitor
11. Supporting 1600 bytes packet for management.
12. Converter working mode could be chosen: Store and forward switch mode, Modified cut-through switch mode, or Converter mode.
13. Auto negotiation function allows UTP port to auto select 10M or 100M and Full Duplex or Half Duplex
14. Internal circuit of prevented thunder could greatly reduce damage of converters caused by thunderbolt induction.

Specification

1. Standard Protocol:IEEE802.3u,10/100Base-TX and 100Base-FX;
2. Connector:UTP Connector: RJ-45, 10/100Mbps; Fiber Connector: SC, 100Mbps
3. Cable UTP: Cat. 5 UTP cable (the max distance up to100m)
4. Operation mode: full duplex mode or half duplex mode
5. LED Power, FX SD, FX Link/Act, TX 100, TX FDX, TX Link/Act.
6. Power supply parameter:
7. Outside: 5V DC 1A Built-in: 110-265V AC 48VDC
8. Environmental temperature: 0℃-60 ℃
9. Relative humidity: 5%-90%
10. TP cable: Cat5 UTP cable
11. Fiber :50/125,62.5/125um multi-mode fiber ; 9/125,10/125um single-mode fiber.
12. Dimensions: External power supply: 26mmx 71mm x 94mm

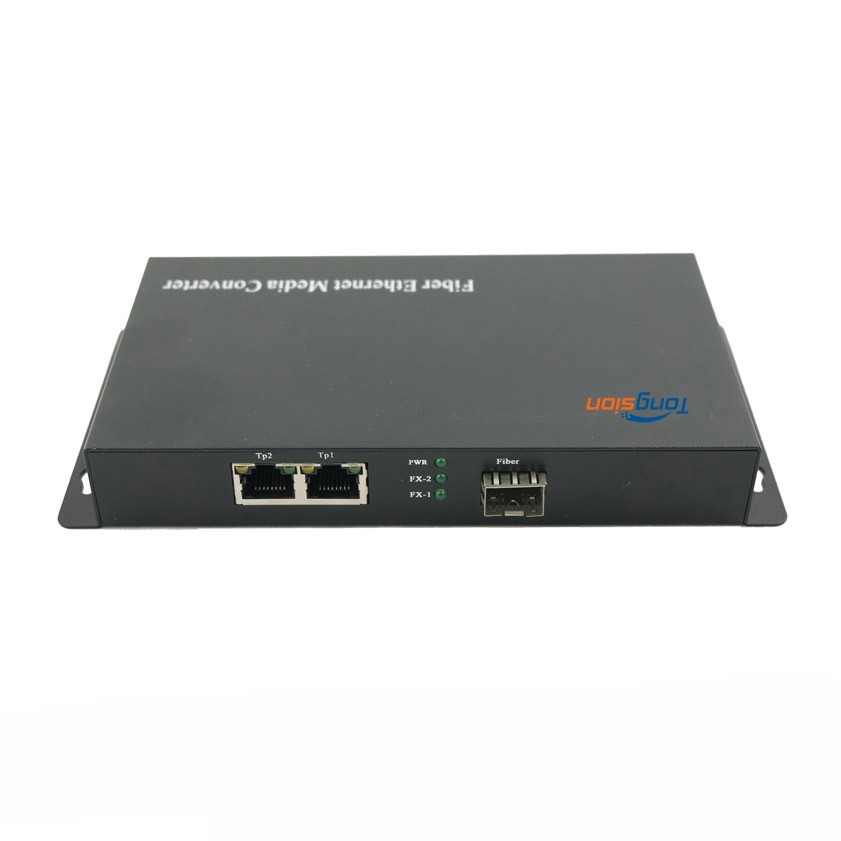

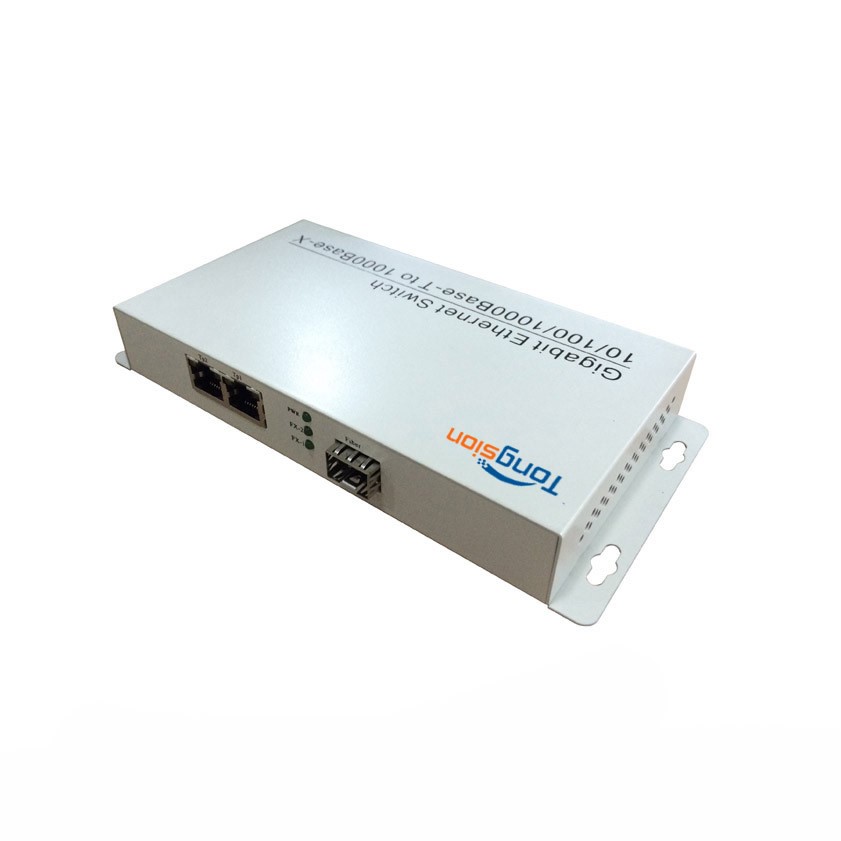

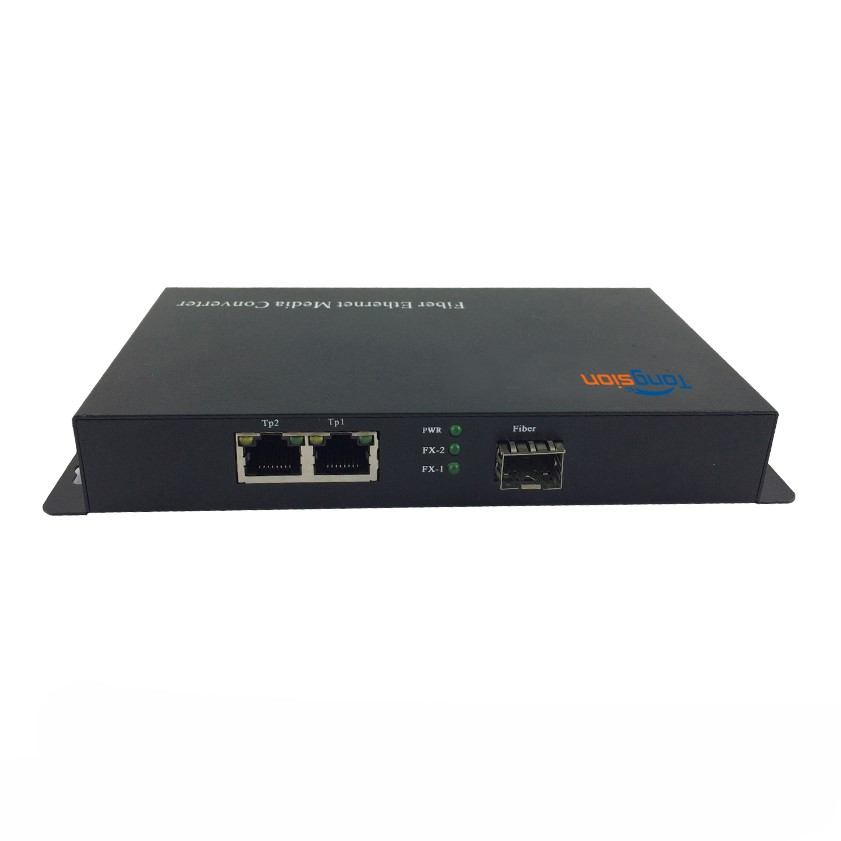

Product Picture
