10G SFP+ BIDI 80KM Optical Transceiver

Place of Original: China
Brand Name: Tongsion/OEM
Model Number: TS-SFP+-BIDI-ZR-45/54
MOQ: 1PC
Price: Negotiable
Packing Details: PVC box+plastic tray+outer carton
Delivery Time: 2-3 working days after payment
Payment Term: T/T, paypal, Western Union, Payoneer
Supply Ability: 50000pcs/Month

10Gb/s BIDI 1490/1550nm LC 80km sfp+ Transceiver Fiber Optical Transceiver

TS-SFP+-BIDI-ZR-45/54

Features

* Supports 9.95 to 11.3Gb/s bit rates

* Simplex LC Connector

* Hot pluggable SFP+ footprint

* Cooled 1490nm EML transmitter, 1550nm APD receiver

* Cooled 1550nm EML transmitter, 1490nm APD receiver

* Applicable for 80km SMF connection

* Low power consumption, < 1.5W

* Digital Diagnostic Monitor Interface

* Optical interface compliant to IEEE 802.3ae 10GBASE-ZR

* Electrical interface compliant to SFF-8431

* Operating case temperature: Commerical:0~70°C/-40~85°C

Applications

* 10.3125Gbps Ethernet

* 10GBASE-LW at 9.953Gbps

* Other optical link

Product description

The single mode transceiver is small form factor pluggable module for optical data communications such as 10G Ethernet. It is with the SFP+ 20-pin connector to allow hot plug capability. The TS-SFP+-BIDI-ZR-45/54 module is designed for single mode fiber and operates at a nominal wavelength of 1490nm or 1550nm; The transmitter section uses a EML laser, which is class 1 laser compliant according to International Safety Standard IEC-60825. The receiver section consists of a APD photodiode integrated with a TIA. The transceiver designs are optimized for high perform -ance and cost effective to supply customers the best solutions for telecommunication.

Product Name	Fiber Optical Transceiver	Datarate	10G
Wavelength	1490nm/1550nm	Transmission Distance	80KM
Connector	LC	Fiber Type	Single Fiber, Single Mode
Application	Gigabit Ethernet,Fiber Channel,Switch To Switch Interface	Warranty	3 Years
High Light	bidirectional fiber optic transceiver, fiber optic sfp module

Ordering information

Part Number	Product Description
TS-SFP+-BIDI-ZR-45	10Gbps, Tx1490/Rx1550nm, 80km, 0ºC ~ +70ºC, DDM
TS-SFP+-BIDI-ZR-54	10Gbps, Tx1550/Rx1490nm, 80km, 0ºC ~ +70ºC, DDM
TS-SFP+-BIDI-ZR-45I	10Gbps, Tx1490/Rx1550nm, 80km, -40ºC ~ +85ºC, DDM
TS-SFP+-BIDI-ZR-54I	10Gbps, Tx1550/Rx1490nm, 80km, -40ºC ~ +85ºC, DDM

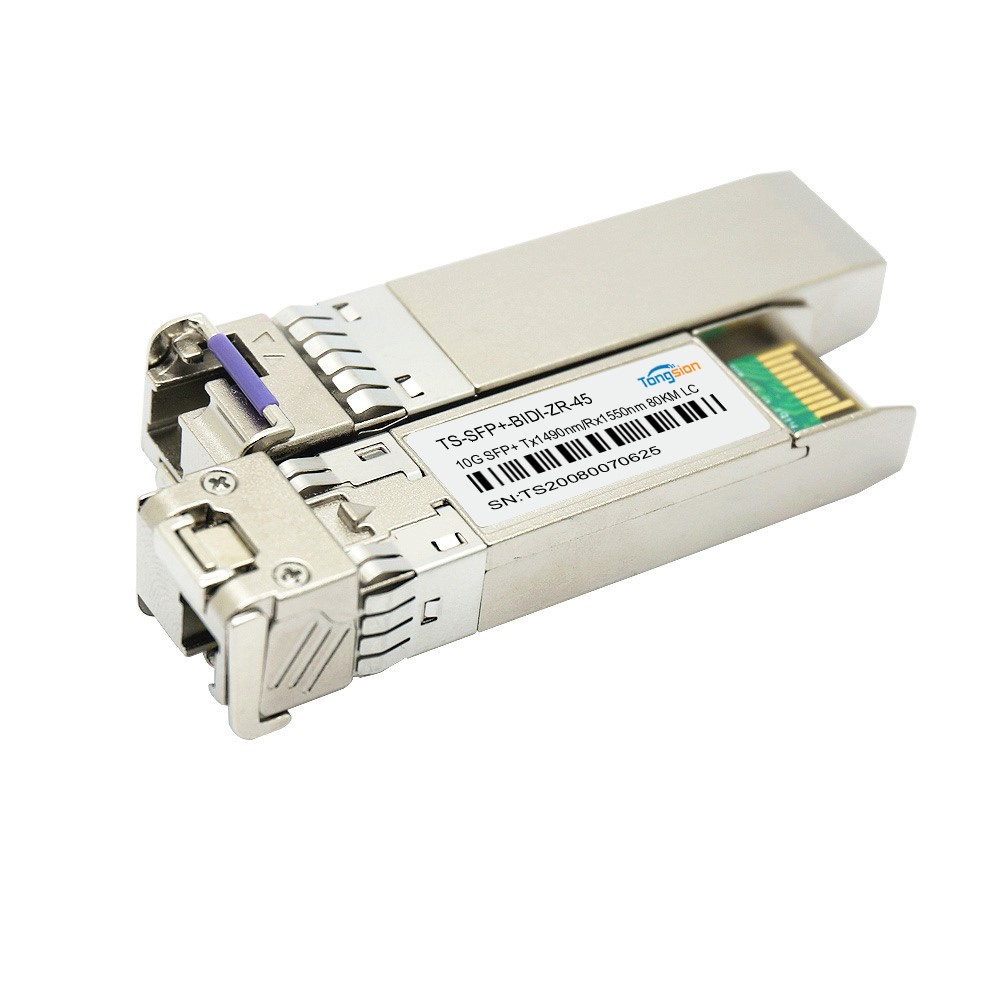

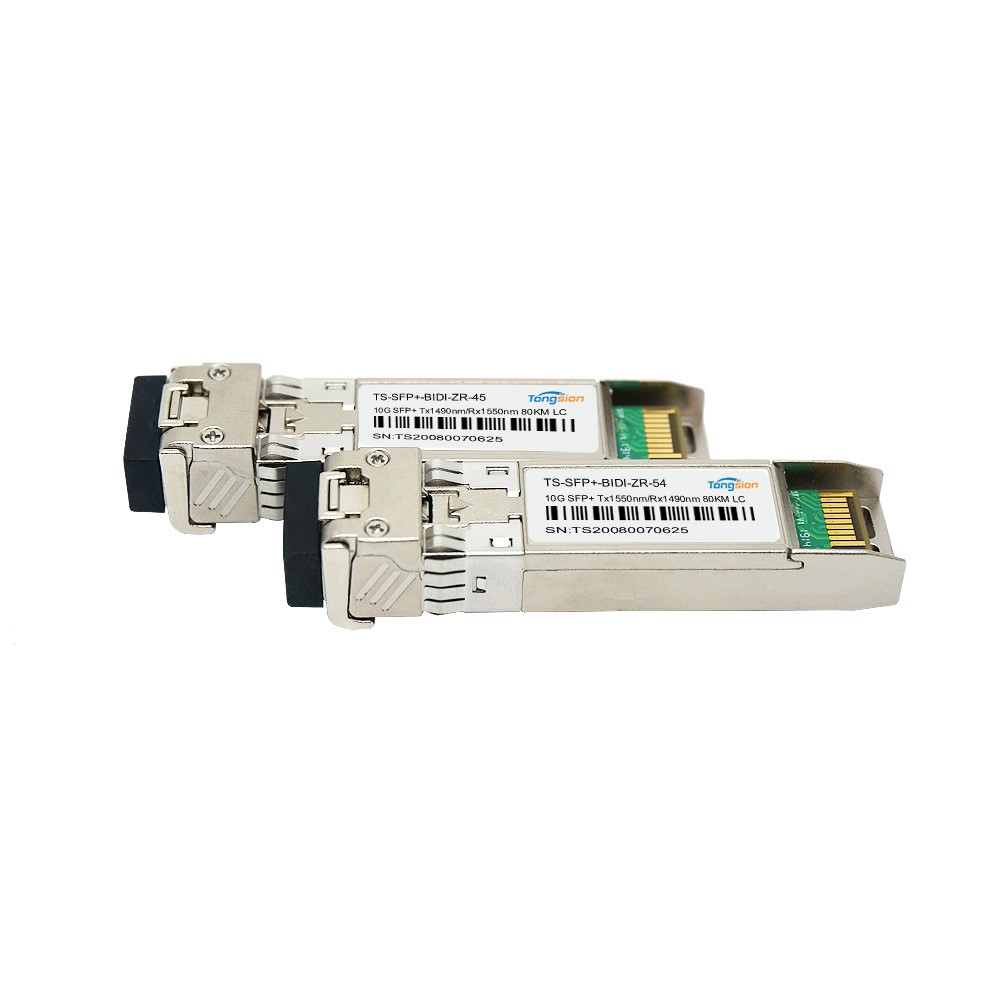

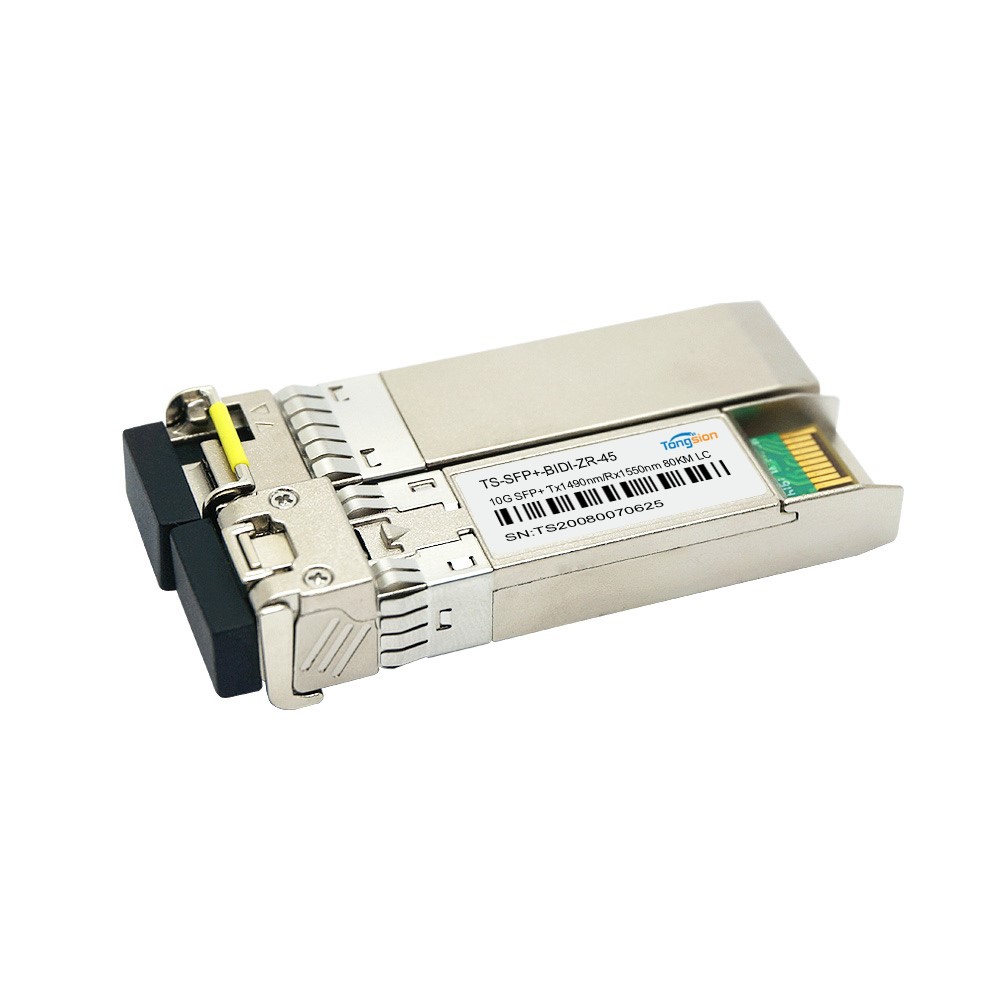

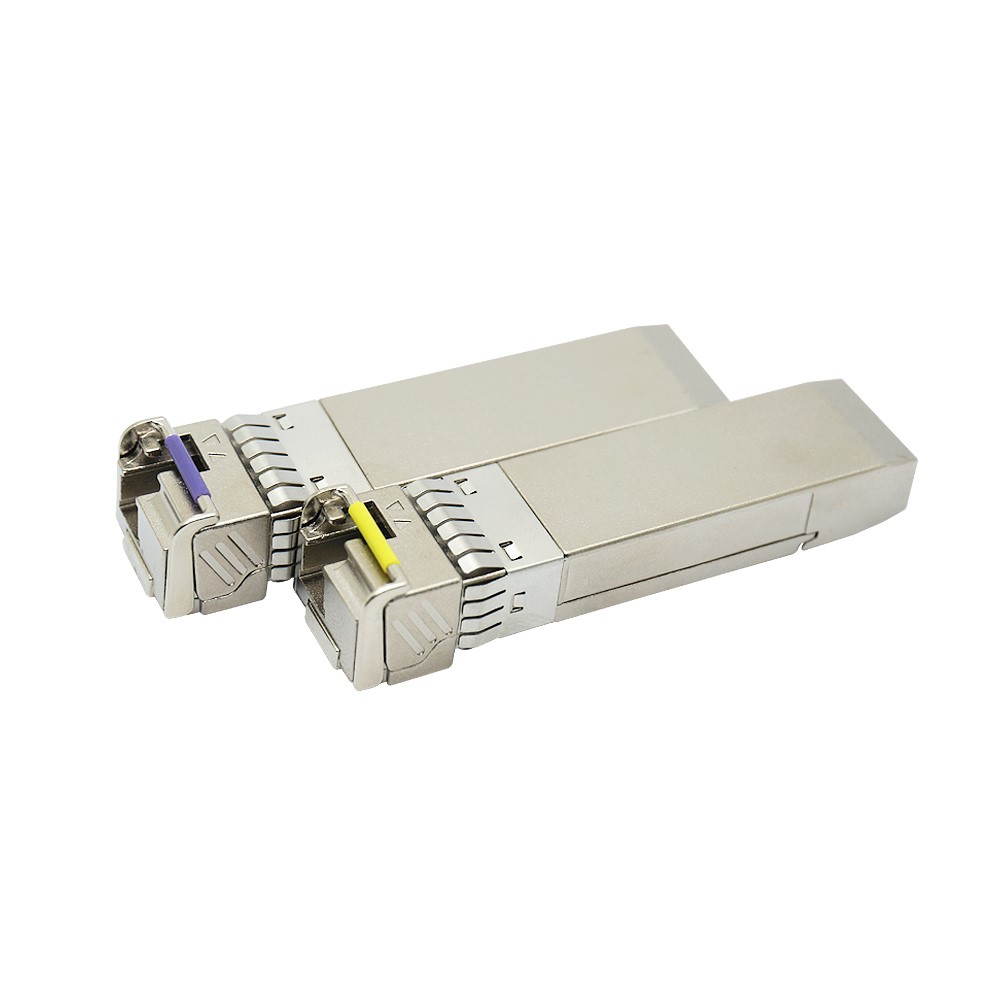

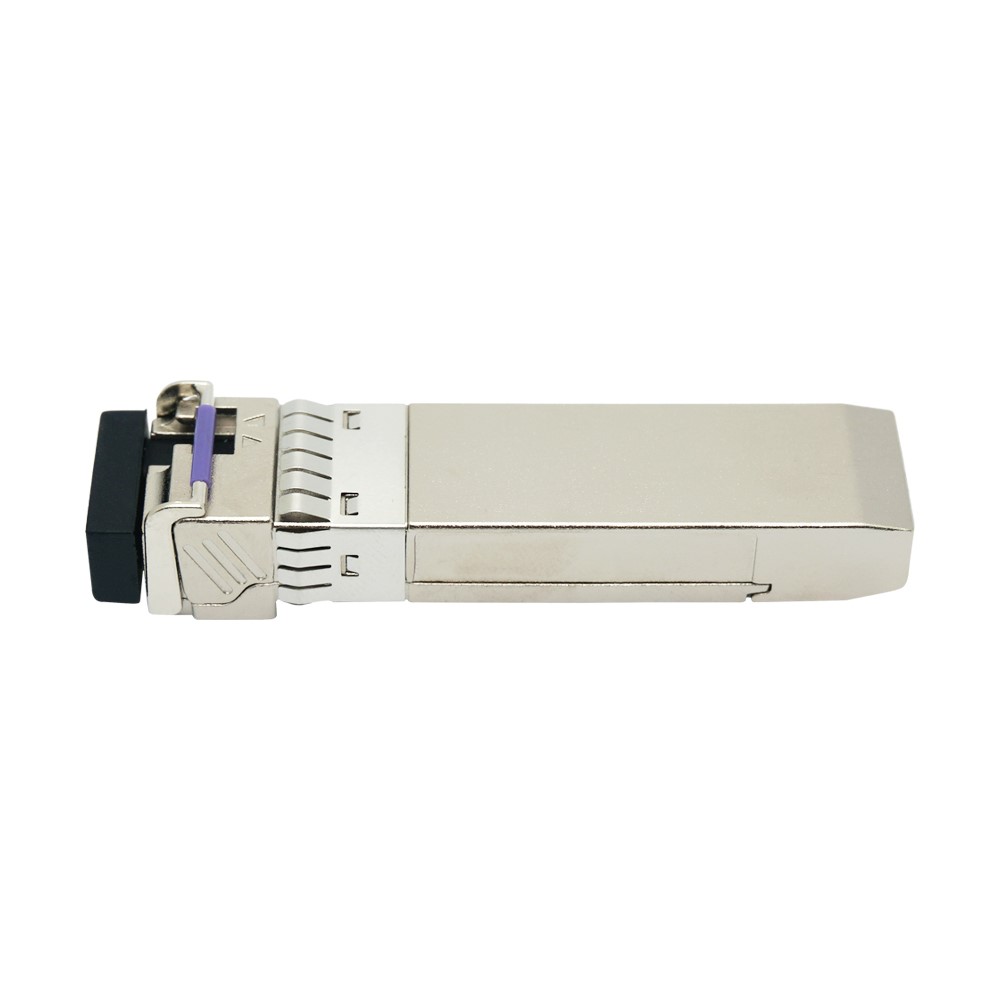

Product Picture



Payment and shipping

Shipping	Shipment: DHL, UPS, FedEx, TNT, EMS, by air or by sea Delivery time: 3-7 working days after received payment receipt Packing: standard export packing or customized packing as your request Port: Shenzhen or Hongkong Professional goods shipping forwarder Service: 7x24 hours reply
Payment	* Payment terms: T/T, Paypal, Western Union, Payoneer
