10G SFP+ BIDI 40KM Optical Transceiver

Place of Original: China
Brand Name: Tongsion/OEM
Model Number: TS-SFP+-BIDI-ER-23/32
MOQ: 1PC
Price: Negotiable
Packing Details: PVC box+plastic tray+outer carton
Delivery Time: 2-3 working days after payment
Payment Term: T/T, paypal, Western Union, Payoneer
Supply Ability: 50000pcs/Month

10Gb/s BIDI 1270/1330nm LC 40km sfp+ Transceiver Fiber Optical Transceiver

TS-SFP+-BIDI-ER-32/23

Features

Ÿ Operating data rate up to 10.3Gbps

Ÿ Two types:
1270nm DFB Transmitter/ 1330nm Receiver
1330nm DFB Transmitter/ 1270nm Receiver

Ÿ Distance up to 40km @50 / 125 um MMF

Ÿ Single 3.3V Power supply and TTL Logic Interface

Ÿ LC Connector Interface

Ÿ Hot Pluggable

Ÿ Power Dissipation < 1.5 W

Ÿ Compliant with MSA SFP+ Specification SFF-8431

Ÿ Compliant with IEEE 802.3ae 10GBASE-LR/LW

Ÿ Operating Case Temperature Standard : 0°C to +70°C

Applications

Ÿ 10GBASE-SW at 9.953Gbps

Ÿ 10GBASE-SR at 10.3125Gbps

Ÿ Other optical links

Description

The TS-SFP+-BIDI-ER-xx series single mode transceiver is small form factor pluggable module for duplex optical data communications such as 10GBASE-LR/LW defined by IEEE 802.3ae. It is with the SFP+ 20-pin connector to allow hot plug capability.

The TS-SFP+-BIDI-ER-23 module is designed for single mode fiber and operates at a nominal wavelength of 1270nm; TS-SFP+-BIDI-ER-32 module is designed for single mode fiber and operates at a nominal wavelength of 1330nm. The transmitter section uses a multiple quantum well DFB, which is class 1 laser compliant according to International Safety Standard IEC-60825.

The receiver section uses an integrated InGaAs detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.

Product Name	Fiber Optical Transceiver	Datarate	10G
Wavelength	1330nm/1270nm	Transmission Distance	40KM
Connector	LC	Fiber Type	Single Fiber, Single Mode
Application	Gigabit Ethernet,Fiber Channel,Switch To Switch Interface	Warranty	3 Years
High Light	bidirectional fiber optic transceiver, fiber optic sfp module

Ordering information

Part No.	Data Rate	DDM	TX/RX	Fiber Type	Dist.	Temp.	Optical Interface
TS-SFP+-BIDI-ER-23	10Gbps	yes	1270nm/1330nm	SMF	40km	0~70℃	BiDi LC
TS-SFP+-BIDI-ER-32	10Gbps	yes	1330nm/1270nm	SMF	40km	0~70℃	BiDi LC
TS-SFP+-BIDI-ER-23I	10Gbps	yes	1270nm/1330nm	SMF	40km	-40~85℃	BiDi LC
TS-SFP+-BIDI-ER-32I	10Gbps	yes	1330nm/1270nm	SMF	40km	-40~85℃	BiDi LC

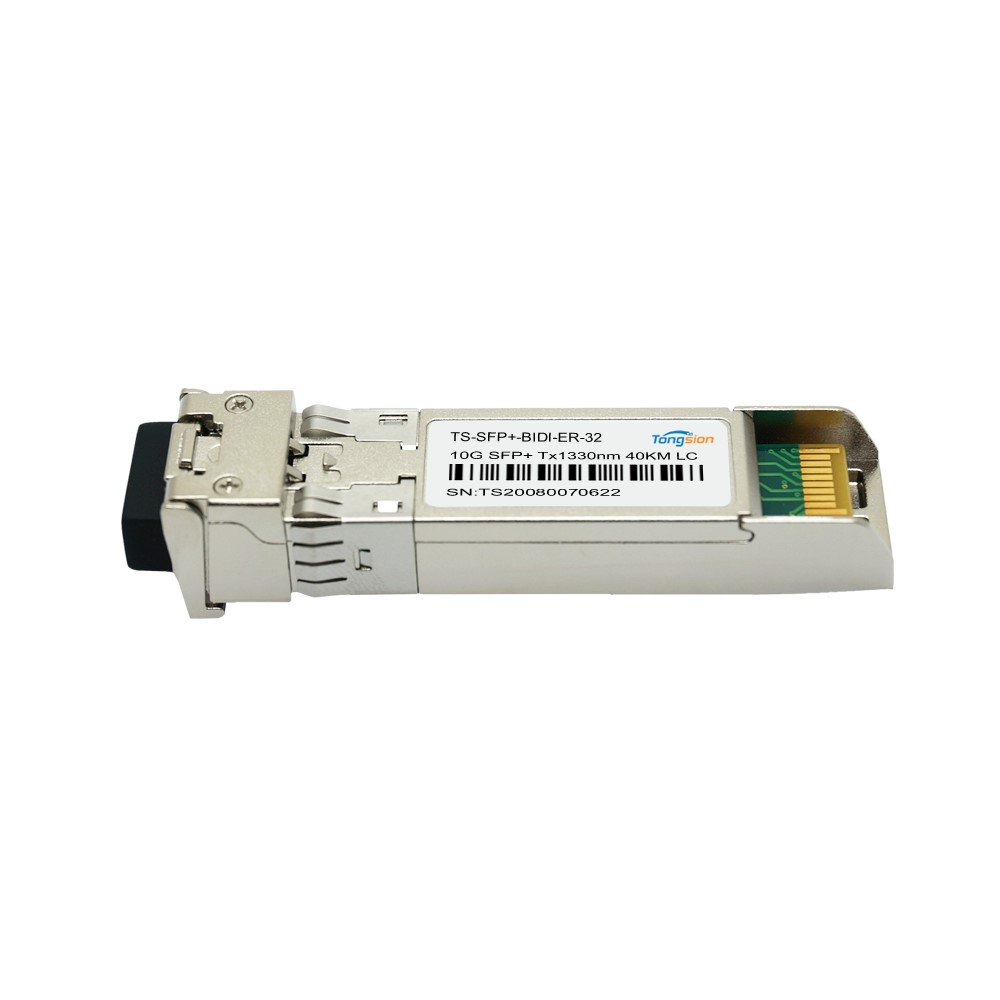

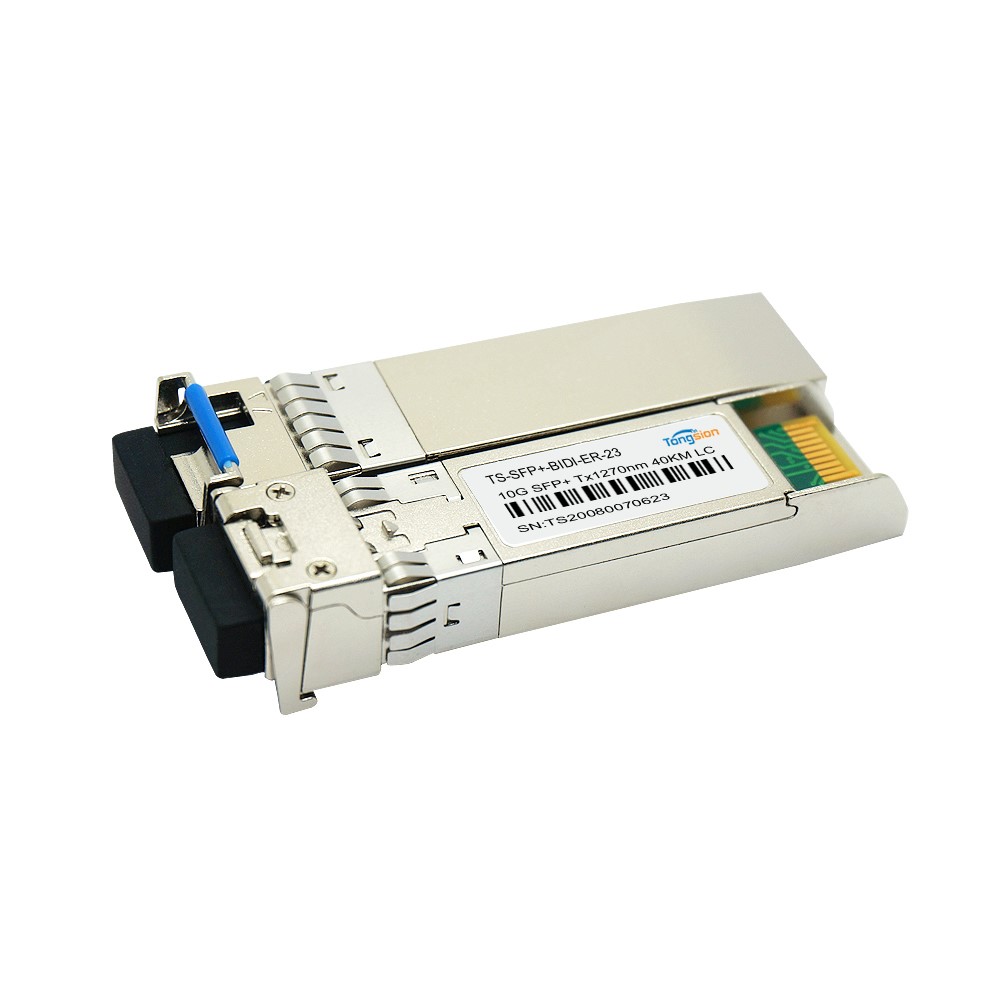

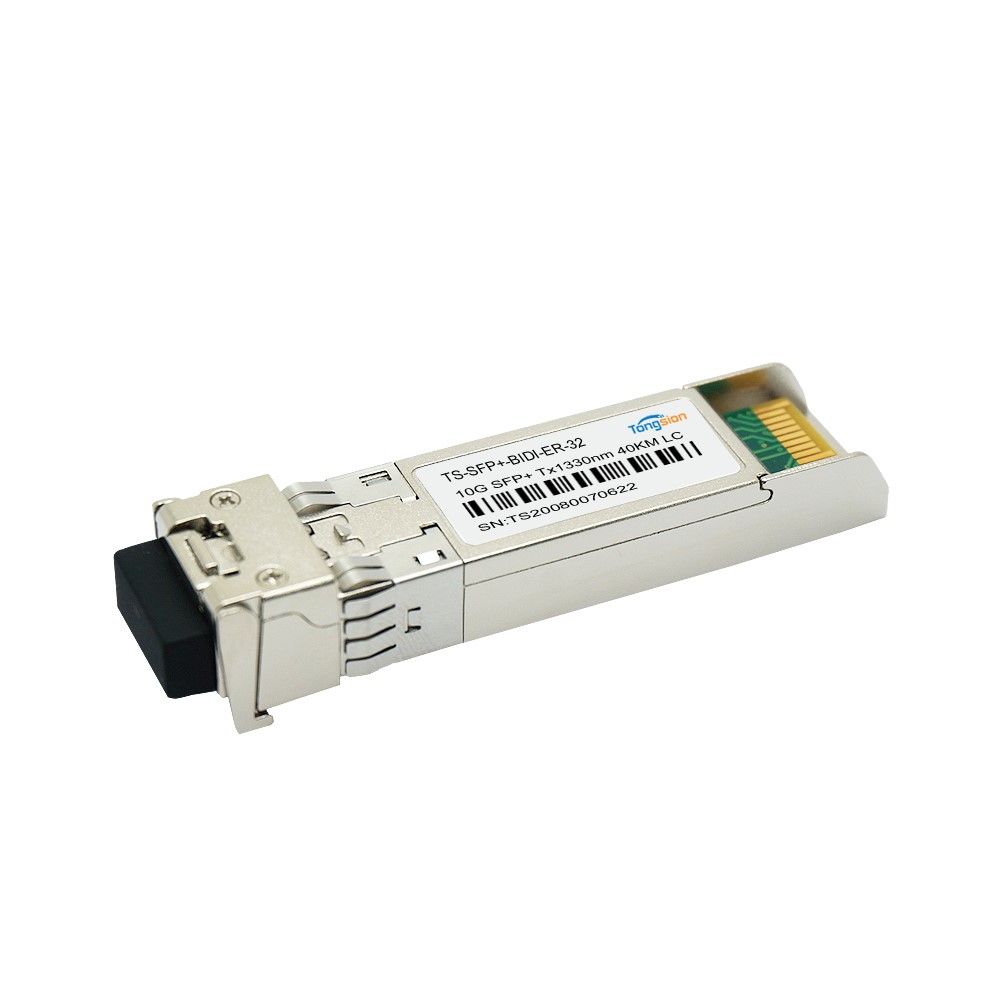

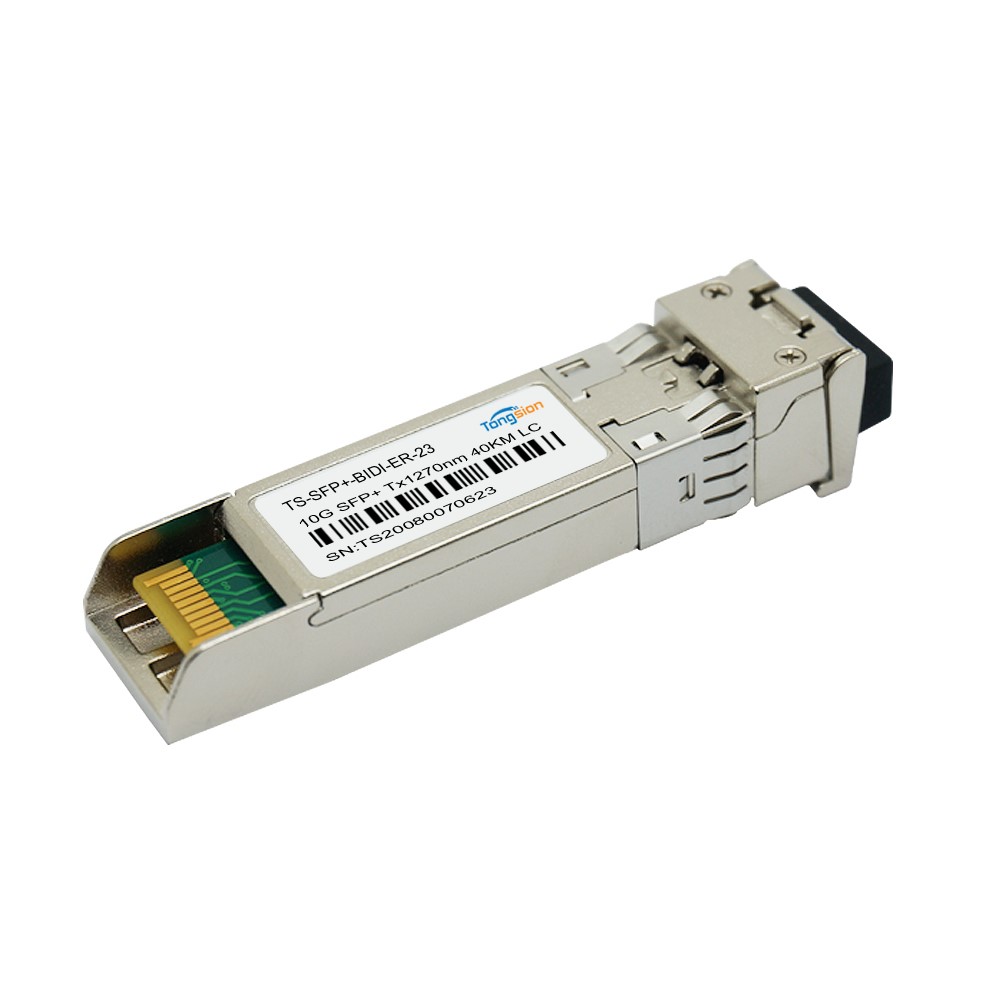

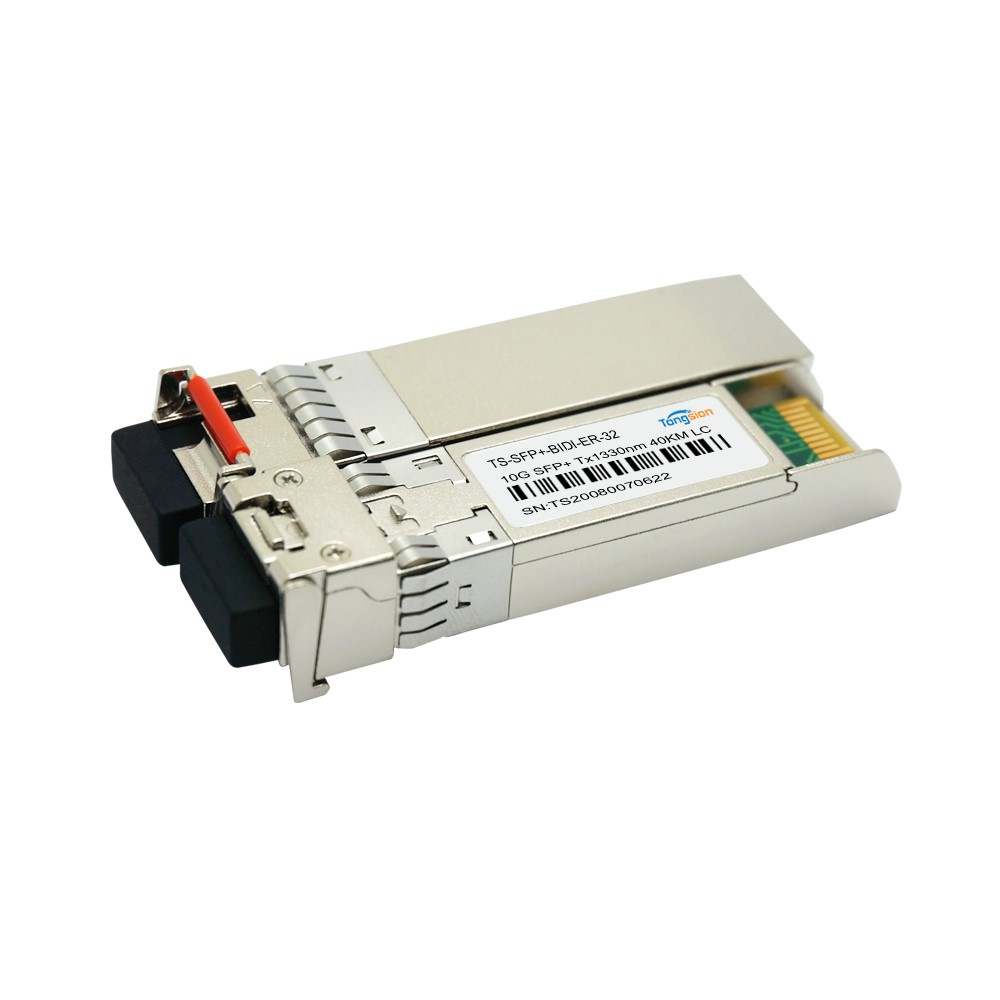

Product Picture

SFP+-ERAB (1)_副本.jpg
