1.25G 850nm 550M LC SFP Module

Place of Original: China
Brand Name: Tongsion/OEM
Model Number: TS-SFP-0205
MOQ: 1 PC
Price: Negotiable
Packing Details: 10pcs/plastic tray
Delivery Time: 3-5 working days after payment
Payment Term: T/T, Paypal, Western Union, Payoneer
Supply Ability: 50000pcs/Month



1.25G sfp Modules 850nm 550M LC Dual Fiber Single Mode Optic Transceiver Compatible With Cisco Huawei HP

TS-SFP-0205

Features

Ÿ Data-rate of 1.25Gbps operation

Ÿ 850nm VCSEL laser and PIN photodetector

Ÿ Compliant with SFP MSA and SFF-8472 with duplex LC receptacle

Ÿ Digital Diagnostic Monitoring:Internal Calibration or External Calibration

Ÿ 550m transmission with 50/125µm MMF

Ÿ 270m transmission with 62.5/125µm MMF

Ÿ Compatible with SONET OC-24-LR-1

Ÿ Compatible with RoHS

Ÿ +3.3V single power supply

Ÿ Operating case temperature range of 0°C to +70°C (Standard) or -40°C to +85°C (Industrial)



Applications

Ÿ Gigabit Ethernet

Ÿ Fiber Channel

Ÿ Switch to Switch interface

Ÿ Switched backplane applications

Ÿ Router/Server interface

Ÿ Other optical transmission systems



Description

The SFP transceivers are high performance, cost effective modules supporting data-rate of 1.25Gbps and 550m transmission distance with MMF.

The transceiver consists of three sections: a VCSEL laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.


Optical and Electrical Characteristics

Parameter

Symbol

Min

Typical

Max

Unit

Notes

Transmitter

Centre Wavelength

λc

830

850

860

nm


Spectral Width (RMS)

∆λ



0.85

nm


Average Output Power

Pout

-9


-3

dBm

1

Extinction Ratio

ER

9



dB


Optical Rise/Fall Time (20%~80%)

tr/tf



0.26

ns


Data Input Swing Differential

VIN

400


1800

mV

2

Input Differential Impedance

ZIN

90

100

110

Ω


TX Disable

Disable


2.0


Vcc

V


Enable


0


0.8

V


TX Fault

Fault


2.0


Vcc

V


Normal


0


0.8

V


Receiver

Centre Wavelength

λc

770


860

nm


Receiver Sensitivity




-17

dBm

3

Receiver Overload


0



dBm

3

LOS De-Assert

LOSD



-18

dBm


LOS Assert

LOSA

-35



dBm


LOS Hysteresis


1


4

dB


Data Output Swing Differential

Vout

400


1800

mV

4

LOS

High

2.0


Vcc

V


Low



0.8

V



Ordering Information

Part Number

Product Description

TS-SFP-0205

850nm, 1.25Gbps, LC, 550m, 0°C~+70°C

TS-SFP-0205D

850nm, 1.25Gbps, LC, 550m, 0°C~+70°C, With Digital Diagnostic Monitoring

TS-SFP-0205I

850nm, 1.25Gbps, LC, 550m, -40°C~+85°C

TS-SFP-0205DI

850nm, 1.25Gbps, LC, 550m, -40°C~+85°C, With Digital Diagnostic Monitoring

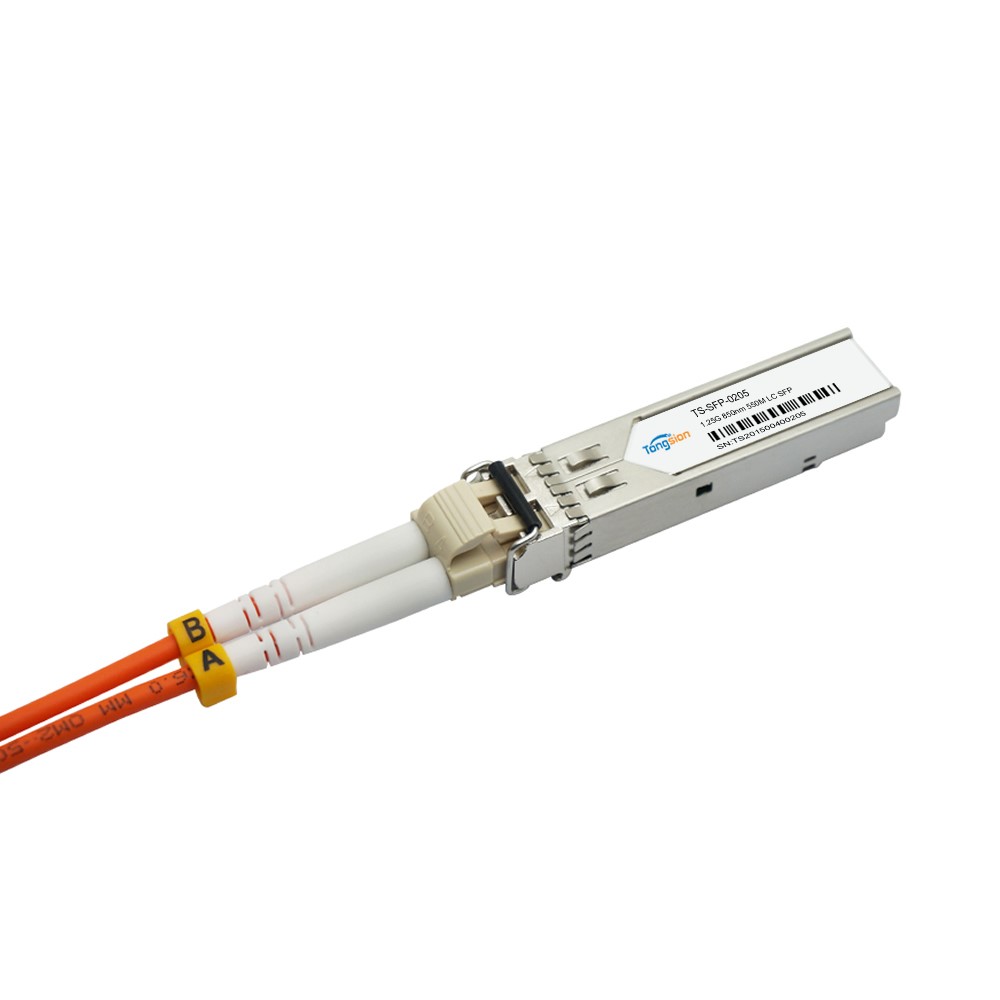

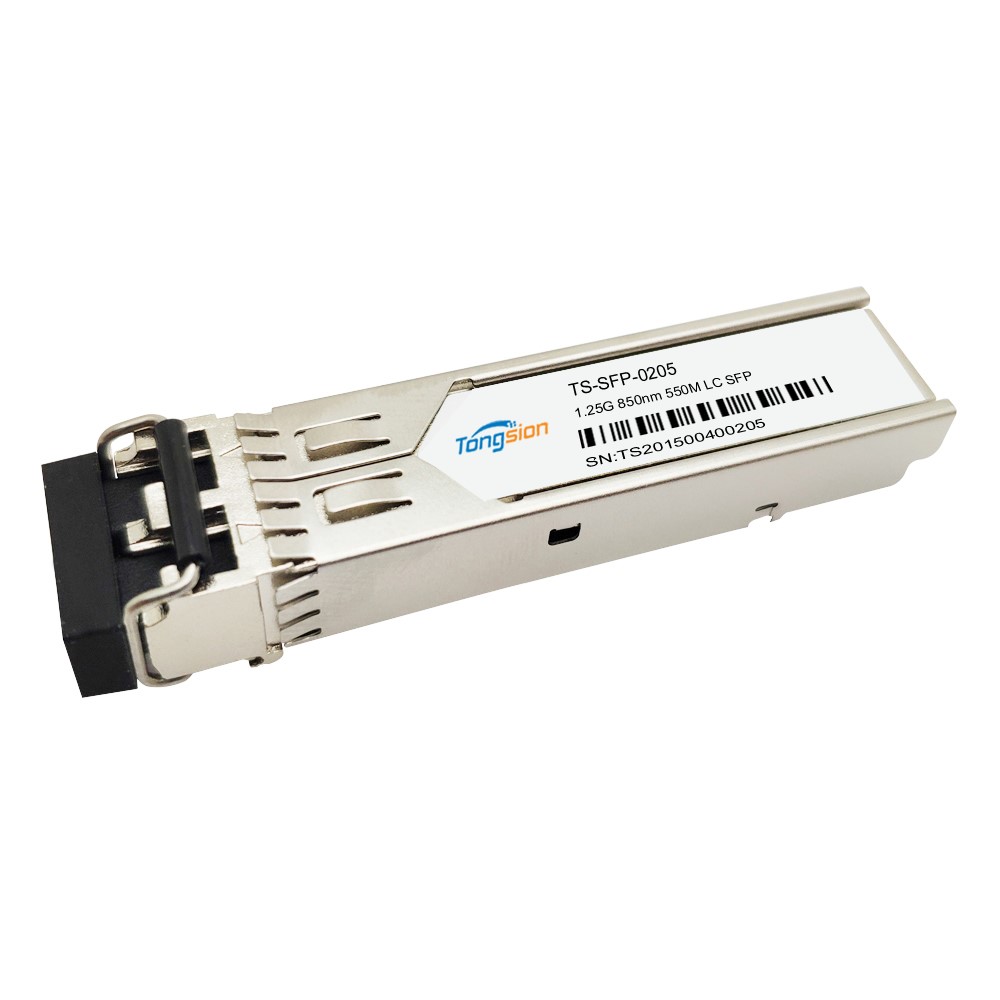

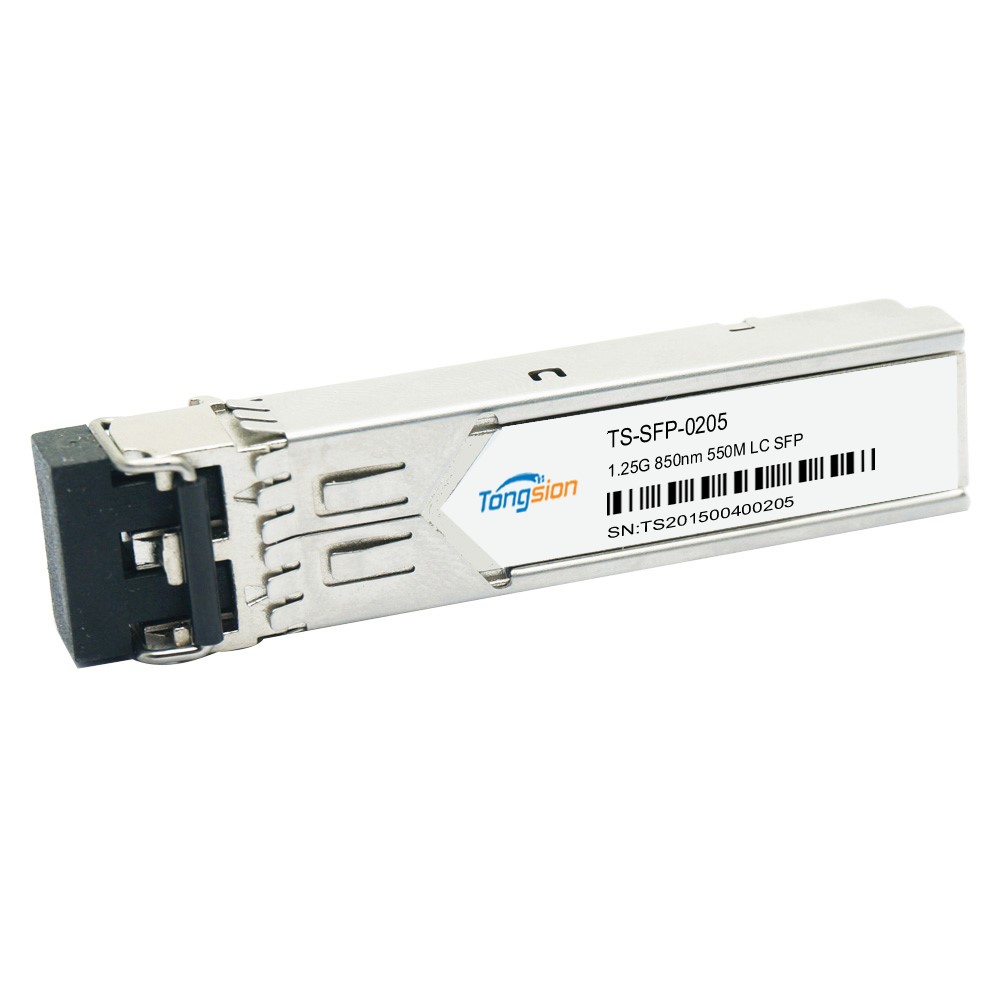

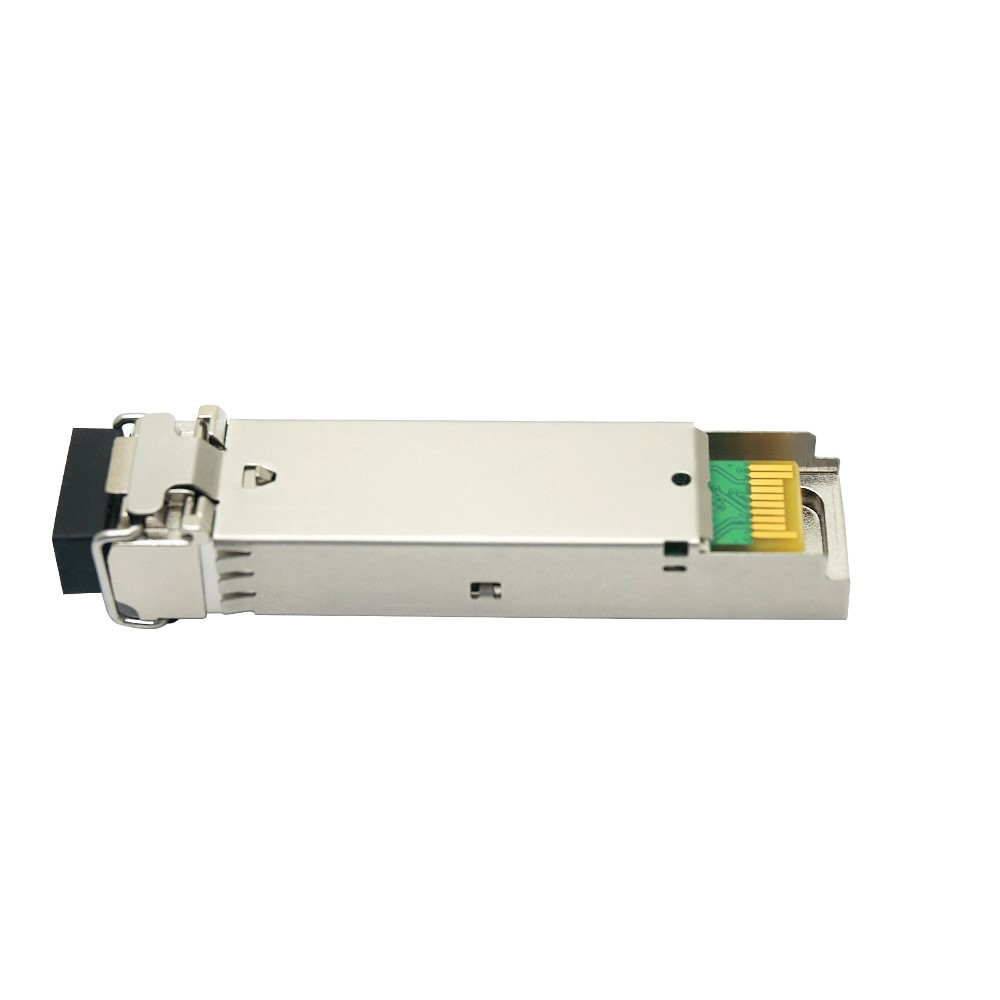

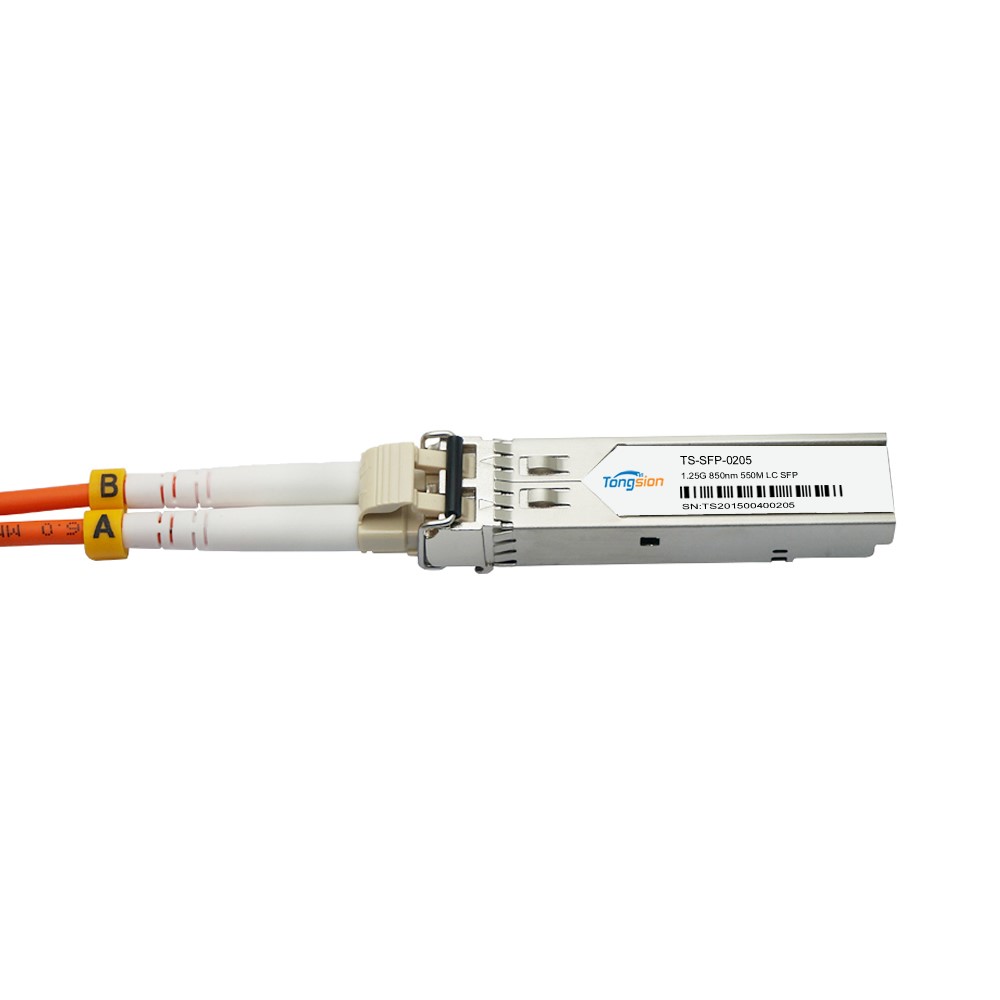

Product Pictures





Payment and shipping


Shipping*Shipment: DHL, UPS, FedEx, TNT, EMS, by air or by sea
*Delivery time: 3-7 working days after received payment receipt
*Packing: standard export packing or customized packing as your request
*Port: Shenzhen or Hongkong
*Professional goods shipping forwarder
*Service: 7x24 hours reply
Payment* Payment terms: T/T, Paypal, Western Union, Payoneer


FAQ

1.    Are you the real manufacturer?

Yes. We are direct manufacturers of optical transceiver, media converter, POE switch, DAC/AOC cables, Patch cord, Fast connector and so on.

2.    Do you offer Compatible Services?

Yes, we offer compatible service with Cisco, Nortel, Huawei, Extreme, Foundry, Alcatel, Allied, HP, 3COM, Juniper, Enterasys....

3.    Does Tongsion accept a small order?

Yes, it is available. Tongsion support new projects of our customers and a long-term trustworthy relationship always starts from a small order.

4.    Can you supply OEM products under our brand?

Yes, we are manufacturer, we accept OEM service, you just need send us your detailed requirements.

5.   What payment methods do you support?

The methods are followed: T/T, Trade Assurance, Western Union and PayPal.
