Émetteur-récepteur optique 40G QSFP + 100M MPO

Émetteur-récepteur optique 40G QSFP + 100M MPO

Lieu d’origine: Chine
Nom de marque: Tongsion/OEM
Numéro de
modèle: TS-SFP28-LR MOQ: 1PC
Prix: Negotiable
Packing Détails: PVC box+plastic tray+outer carton
Delivery Time: 2-3 jours ouvrables après paiement
Durée de paiement: T/T, PayPal, Western Union, Payoneer
Supply Ability: 50000pcs/Month

40GBASE-SR4 Qsfp+ SR4 optical transceiver,40Gb/s,MMF,850nm,100m

TS-QSFP+-SR

TS-QSFP+-SR is a high performance and cost effective 40G QSFP+ SR4 transceiver designed for 40 Gigabit Ethernet (40GbE) applications. The 40G QSFP+ SR4 transceiver comply with QSFP+ MSA and IEEE 802.3ba 40GBASE-SR4 specifications.

Features

* Transmission data rate up to 11.1Gbps per channel

* Electrically hot-swappable

* 40G Ethernet, Infiniband QDR, SATA/SAS3, IEEE 802.3ba, MSA Compliant

* Compliant with QSFP+ MSA

* Compliant to INF-8438

* Operating temperature range:0~70℃

* Power dissipation < 3.5 W

* Supports Digital Diagnostics Monitoring

* RoHS6 Compliant

Specifications

* Form Factor: QSFP+

* Data Rate: 40Gb/s

* Wavelength: 850nm

* Fiber Type: MMF

* Max Distance: 100m

* Optical Components: DFB/PIN

* Operating Temperature: 0~70℃

* Diagnostics: Yes

* Connector: MTP/MPO

* Application: 40GBASE-SR4 40G Ethernet,Data Center and LAN

Product Name	Fiber Optical Transceiver	Datarate	40G QSFP+
Wavelength	850nm	Transmission Distance	100M
Connector	MTP/MPO	Fiber Type	Dual fiber, Multi Mode
Application	Gigabit Ethernet,Fiber Channel,Switch To Switch Interface	Warranty	3 Years
High Light	fiber optic transceiver, fiber optic sfp module. 40G QSFP+ Transceiver

Ordering information

Part Number	Product Description
TS-QSFP+SR4	optical transceiver,40Gb/s,QSFP+ MMF,850nm,100m, SR4 MPO
TS-QSFP+CSR4	optical transceiver,40Gb/s,QSFP+ MMF, 1310nm, 300m, CSR4 MPO
TS-QSFP+IR4	optical transceiver,40Gb/s,QSFP+ SMF, 1310nm, 2KM, IR4 LC
TS-QSFP+LR4	optical transceiver,40Gb/s,QSFP+ SMF, 1310nm, 10KM, LR4 LC
TS-QSFP+LR4	optical transceiver,40Gb/s,QSFP+ SMF, 1310nm, 10KM, LR4 MPO
TS-QSFP+ER4	optical transceiver,40Gb/s,QSFP+ SMF, 1310nm, 40KM, ER4 LC

Competitive advantage:
1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Full compatible (CISCO/HP/Extreme/Juniper/H3C…)
4. OEM/ODM Customized label
5. Keep stock,Fast delivery

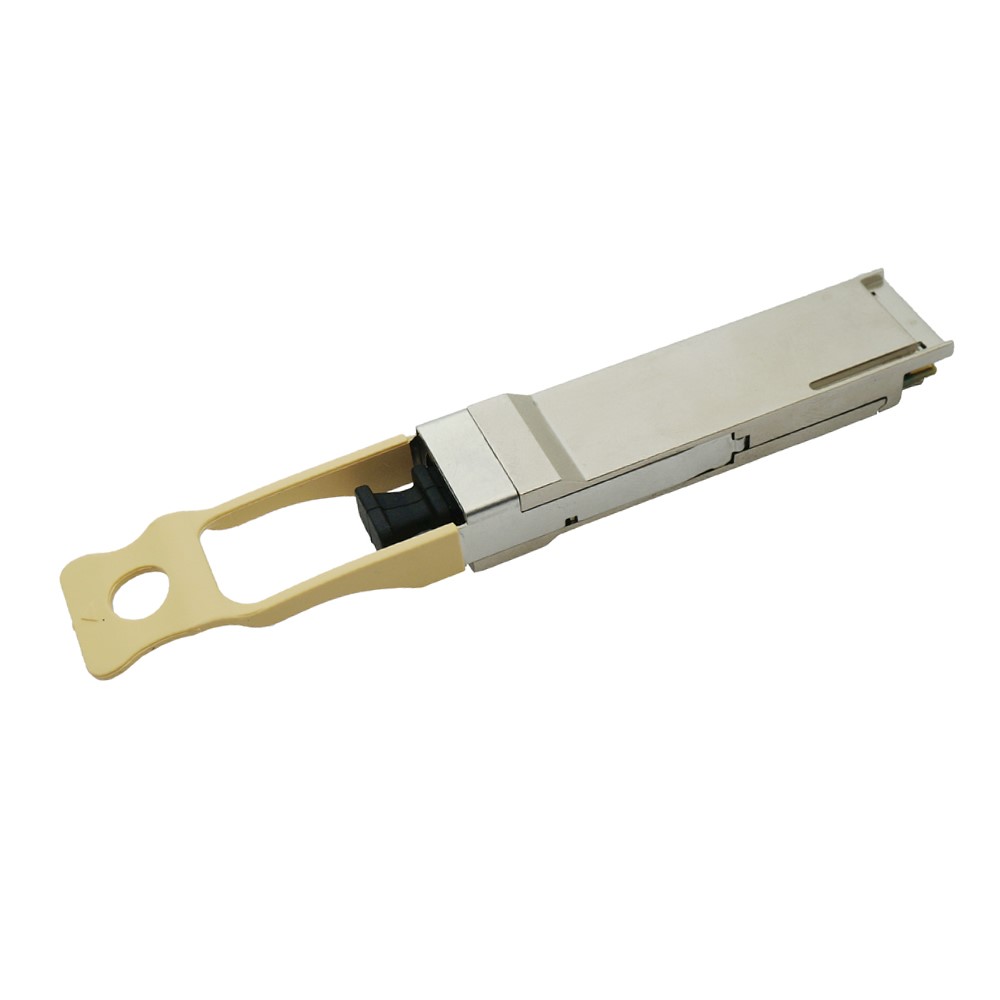

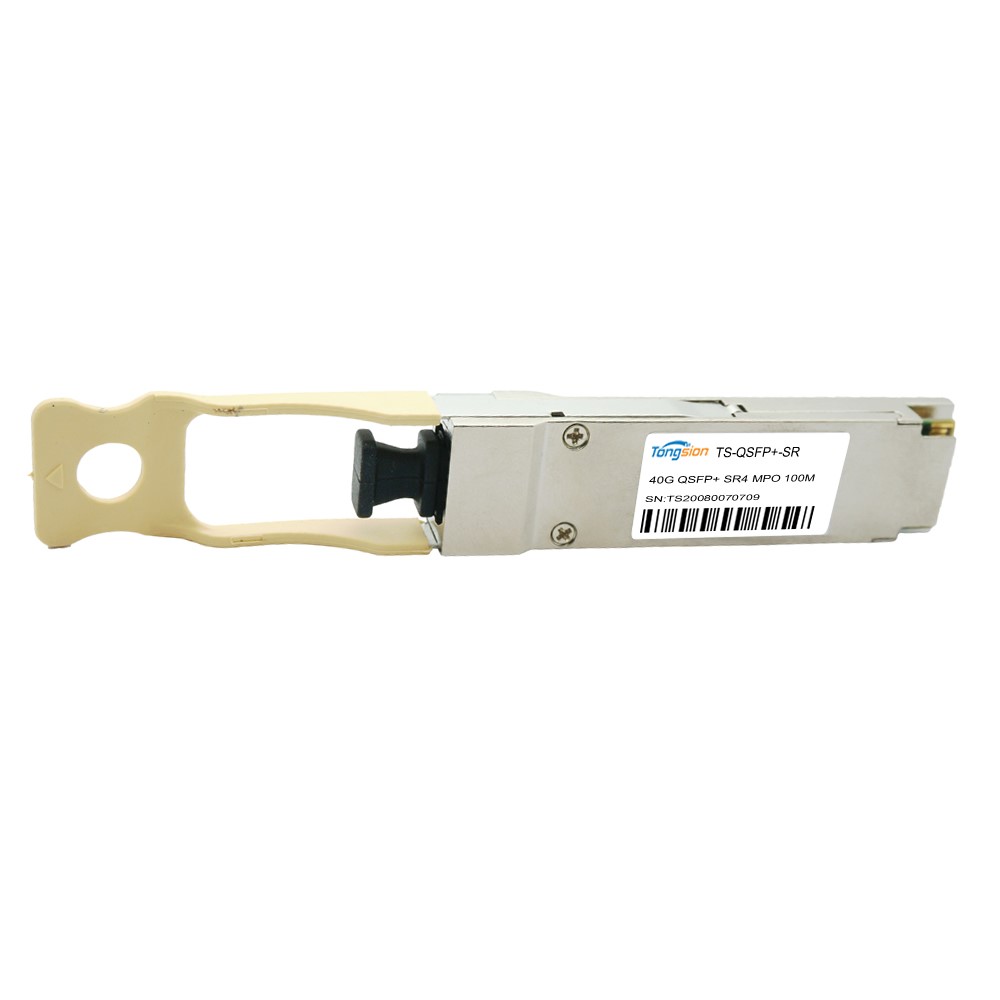

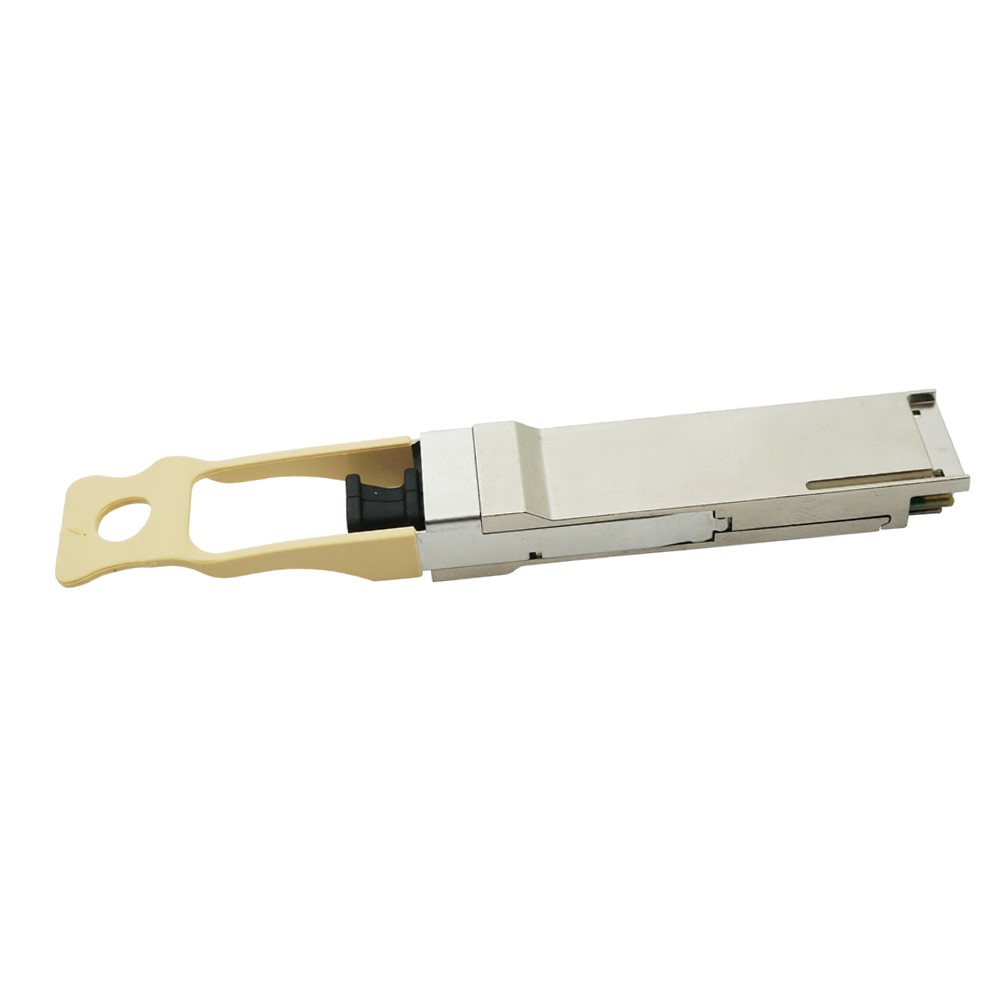

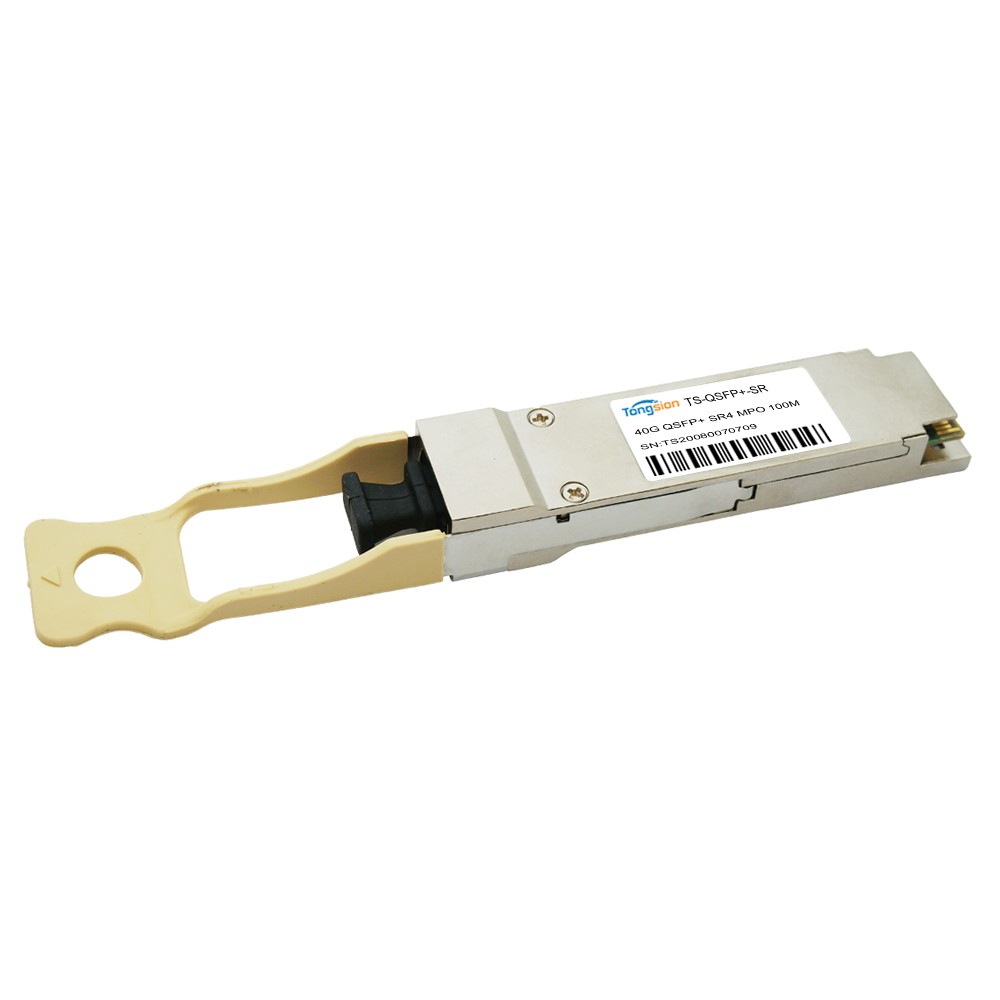

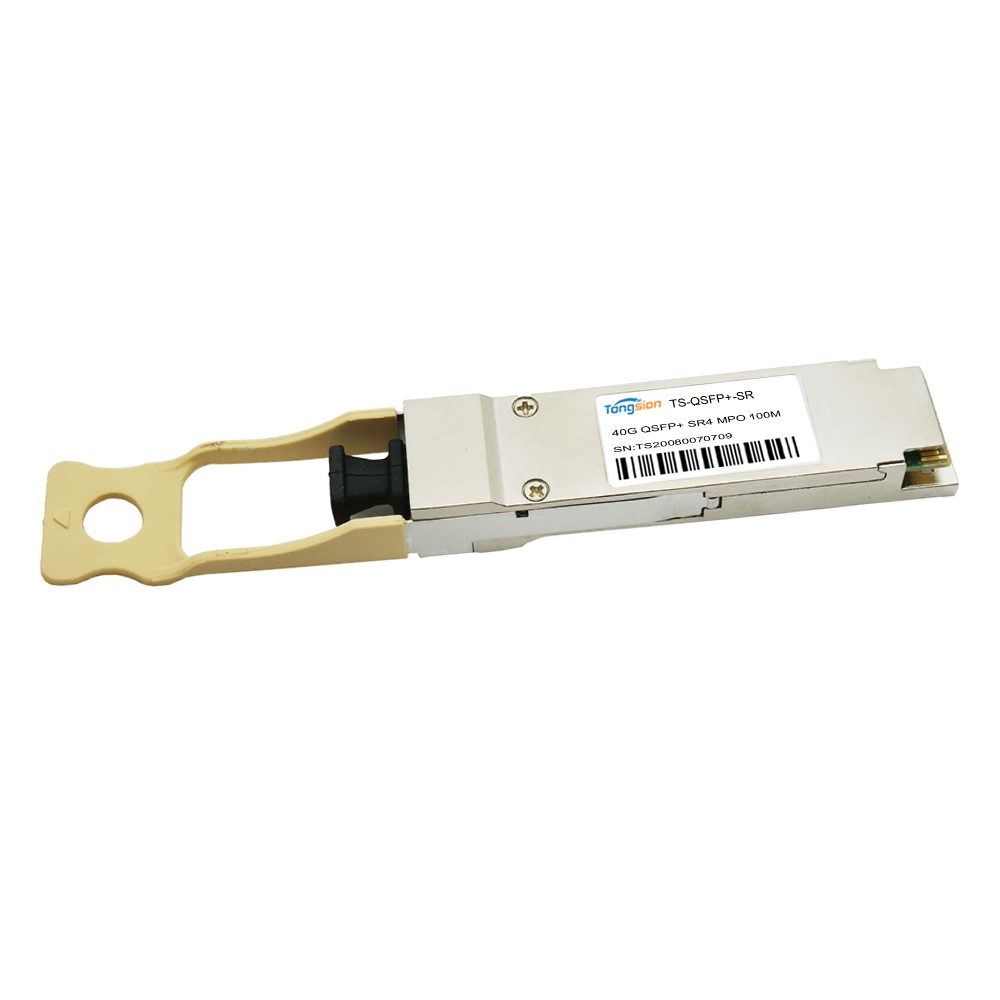

Product Picture

40G SR.jpg
