SFP Single-Mode to Multi-Mode Fiber Internet Media Converter

155M or 1000M Single-Mode to Multi-Mode Fast Ethernet Fiber Media Converter

Description:

10/100/1000M adaptive fast Ethernet optical Media Converter is a new product used for optical transmission via high-speed Ethernet. It is capable of switching between twisted pair and optical and relaying across 10/100/1000Base-TX to 1000Base-FX network segments, meeting long-distance, high-speed and high-broadband fast Ethernet workgroup users’ needs, achieving high-speed remote interconnection for up to 100 km's relay-free computer data network. With steady and reliable performance, design in accordance with Ethernet standard and lightning protection, it is particularly applicable to a wide range of fields requiring a variety of broadband data network and high-reliability data transmission or dedicated IP data transfer network, such as telecommunication, cable television, railway, military, finance and securities, customs, civil aviation, shipping, power, water conservancy and oilfield etc, and is an ideal type of facility to build broadband campus network, cable TV and intelligent broadband FTTB/FTTH networks.

Features:
· conform to the IEEE802.3u 100BASE-TX/FX standards
· connector:FX connector are all SC
· Work mode: full-duplex
· light wave length:single mode:1300nm、1310nm1550nm、multi mode:1300nm、850nm
· Power supply: 5V DC 1A(External Power)
· Work temperature:0℃-65℃
· Storage temperature: -40~70℃
· Humidity: 5-90%(non-condensing)

· Dimension:140mm*110mm*30mm(Inner power supply)

Ordering information

INSTALLATION :

• Attach fiber cable form the media converter to the fiber network .The fiber connections must be matched transmit socket to receive socket , the TX , RX fiber cable must be paired at both ends .

• Attach a UTP cable from the 10/100/1000BASE-T network to the RJ45 port on the media converter .

• Connector the power adapter to the media converter and check that the Power LED lights up.The TX-LINK/ACTand FX-LINK/ACT LEDs will light up when all the cable connections are satisfactory .

•

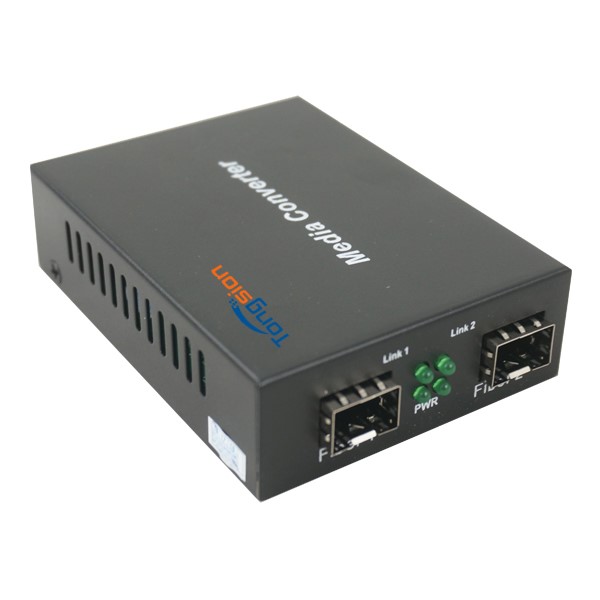

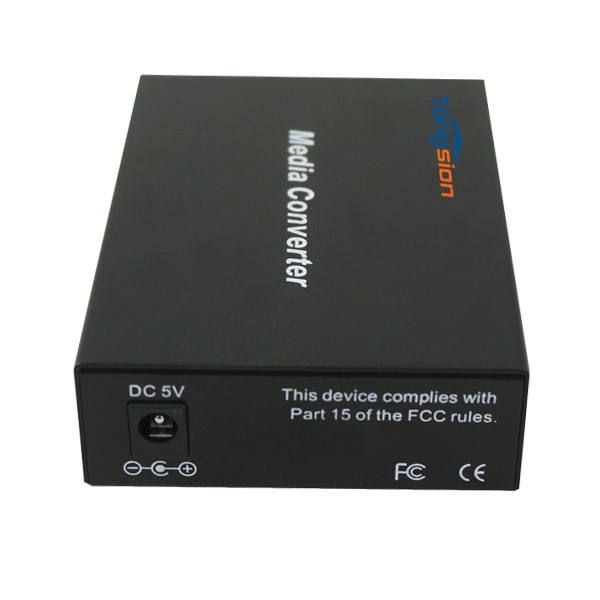

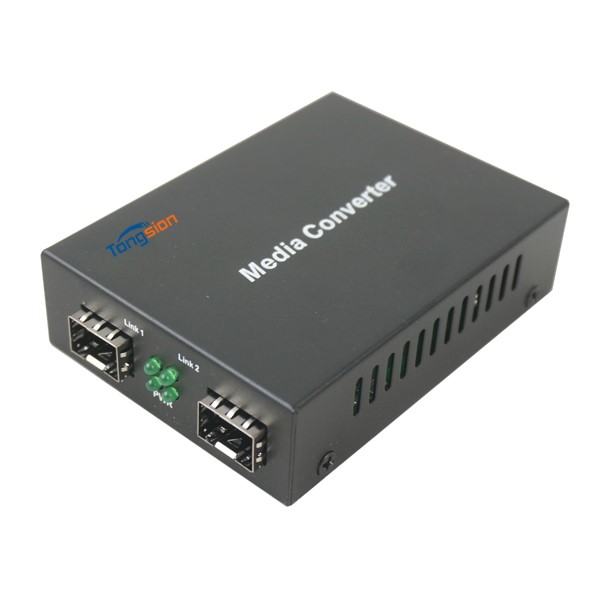

• Product Picture

•


•


Shipping and Payment

Company Information

FAQ

1.    Are you the real manufacturer?

Yes. We are direct manufacturers of optical transceiver, media converter, POE switch, DAC/AOC cables, Patch cord, Fast connector and so on.

2.    Do you offer Compatible Services?

Yes, we offer compatible service with Cisco, Nortel, Huawei, Extreme, Foundry, Alcatel, Allied, HP, 3COM, Juniper, Enterasys....

3.    Does Tongsion accept a small order?

Yes, it is available. Tongsion support new projects of our customers and a long-term trustworthy relationship always starts from a small order.

4.    Can you supply OEM products under our brand?

Yes, we are manufacturer, we accept OEM service, you just need send us your detailed requirements.

5.   What payment methods do you support?

The methods are followed: T/T, Trade Assurance, Western Union and PayPal.

6.   Do you support sample service?

Of course, all of our products support sample services, samples are divided into paid and free

7.  What if there is quality problem when we get the goods?

If there is quality problem, you can take pictures for our reference, our QC department will check the problem and give best solutions to you, refund or return.
