Network Black Box 2Fiber+3RJ45 Ports Duplex Fiber Media Switch

Place of Original: China
Brand Name: Tongsion/OEM
Model Number: TS-2G3E-S20
MOQ: 1PC
Price: Negotiable
Packing Details: Plastic bag +inner box+outer carton
Delivery Time: 2-3 working days after payment
Payment Term: T/T, paypal, Western Union, Payoneer
Supply Ability: 50000pcs/Month


Fiber Media Converter 10/100/1000M 2 Fiber+3Rj45 Ports Dual Fiber Ethernet to Fiber Media Converter

Description

The series is Ethernet media converter that converts the copper UTP media to the multimode or single mode fiber with duplex SC, ST, and LC interface. The equipped auto-negotiation function enables the media converters to operate at 10 or 100Mbps copper Ethernet or Fast Ethernet and the 100Mbps fiber. This conversion complies with IEEE802.3 and IEEE802.3u standards with two different network connection media, 10/100Base-TX and 100Base-FX. The data transmission is realized by switching and store-and-forward technologies.
Link fault pass through capability is built inside the media converters. LEDs on the front panel therefore display the media converter status and the far end fault conditions for network diagnosis purpose.
This series of media converter can be used as a stand-alone device or be directly mounted into 2U 19”rack mount chassis. Fourteen/Sixteen media converter slots can be accommodated in this chassis.

Product NameMedia Converter, Fiber SwitchDatarate10/100/1000M
ApplicationEthernet to FiberTransmission Distance20KM
ConnectorSCFiber TypeDuplex, Single Mode
Dimension113*92*28mmWarranty3 Years
High Lightsfp media converter, 10/100/1000M ethernet media converter, Fiber Switch

Technical Parameters

Technical Parameters for 10/100M Adaptive Fast Ethernet Optical Media Converter
Number of Network Ports3 channel
Number of Optical Ports2 channel2_副本.jpg
NIC Transmission Rate10/100/1000 Mbit/s
NIC Transmission Mode10/100/1000M adaptive with support for automatic inversion of MDI/MDIX
Optical Port Transmission Rate1000Mbit/s
Operating VoltageAC 220V or DC +5V
Overall Power<1W
Network PortsRJ45 port
Optical SpecificationsOptical Port: SCMulti-Mode: 50/125, 62.5/125um Single-Mode: 8.3/125, 8.7/125um, 8/125,10/125um
Data ChannelIEEE802.3x and collision base backpressure supportedWorking Mode: Full/half duplex supported Transmission Rate: 100Mbit/swith error rate of zero

Desk Type Dual-Optical Single-Mode/Multi-Mode Media Converter
P/NWavelength (nm)Optical PortElectric PortOptical Power (dBm)Receiving Sensitivity (dBm)Transmission Range (km)
1850SCRJ-45-8~ -3≤-190.55
21,310SCRJ-45-20~ -15≤-342
31,550SCRJ-45-15~ -8≤-3410
41,310SCRJ-45-15~ -3≤-3420
51,310SCRJ-45-8~ -3≤-3440
61,310SCRJ-45-5~0≤-3460
71,550SCRJ-45-5~0≤-3480
81,550SCRJ-45-3~3≤-36100
91,550SCRJ-450~5≤-36120

 Feature

1. Complies with IEEE 802.3 10 Base-T standard.

2. Complies with IEEE 802.3u 10/100 Base-TX/FX standard

3. Complies with IEEE 802.3X standard.

4. 10/100Mbps port with full/half duplex auto-negotiation

5. Back pressure flow control for full duplex

6. Converter mode with auto-change-forward(Switch)function

7. Back pressure flow control for full/half duplex IEEE802.3X.

8. Automatic identification of MDI/MDI-X cross-line.

9. High-performance 155Mbps bandwidth.

10. Complies with FCC, 15 CLASS A ,Rosh and CE MARK

 Specificaion

Rate: self-adaptive 10/100M or 10/100/1000MOptic wavelength: 850nm, 1310nm, 1550nm
Protocol supported: IEEE802.3/IEEE802.3U etc.BER: < 1/1000000000
Cable type: Dual fiber/Single FiberMTBF: 3 years
Optic mode: single / multimodePower: 2.5W
Transmission mode: half / full duplexPower supply: AC220V/0.5A, DC-48 V /0.5A, DC5V/1A
Ethernet interface: 3 × RJ-45Working temperature: 0~50°C
Optic interface: SC/FC/STWorking humidity: 5%-95%
Storage humidity: 5%~95%(no-condensing)Storage temperature: -40°C~70°C



Please Note:please tell us before order

1.Your quantity

2.Power adpter type:UK,US,EU ect

3.With our logo or OEM,with your logo

4.Other requirements

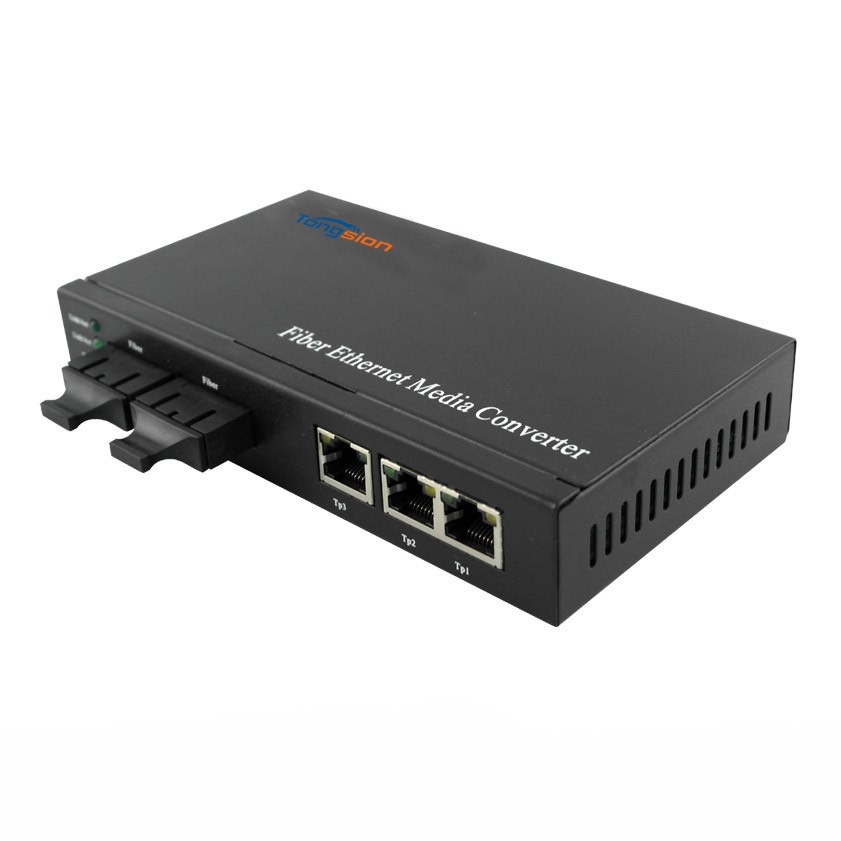

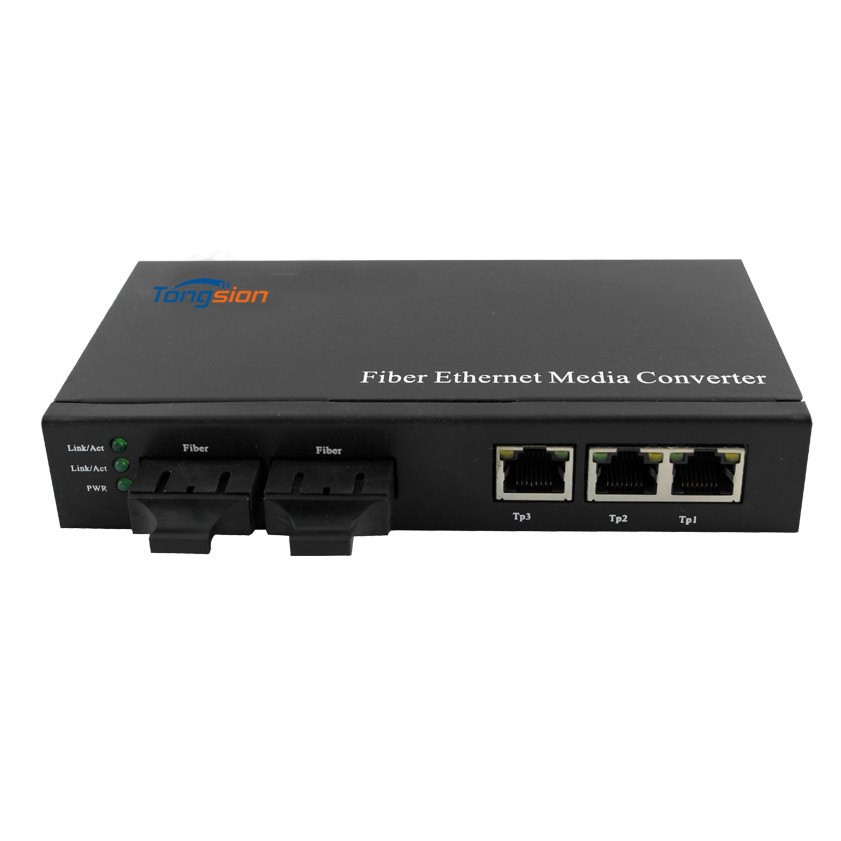

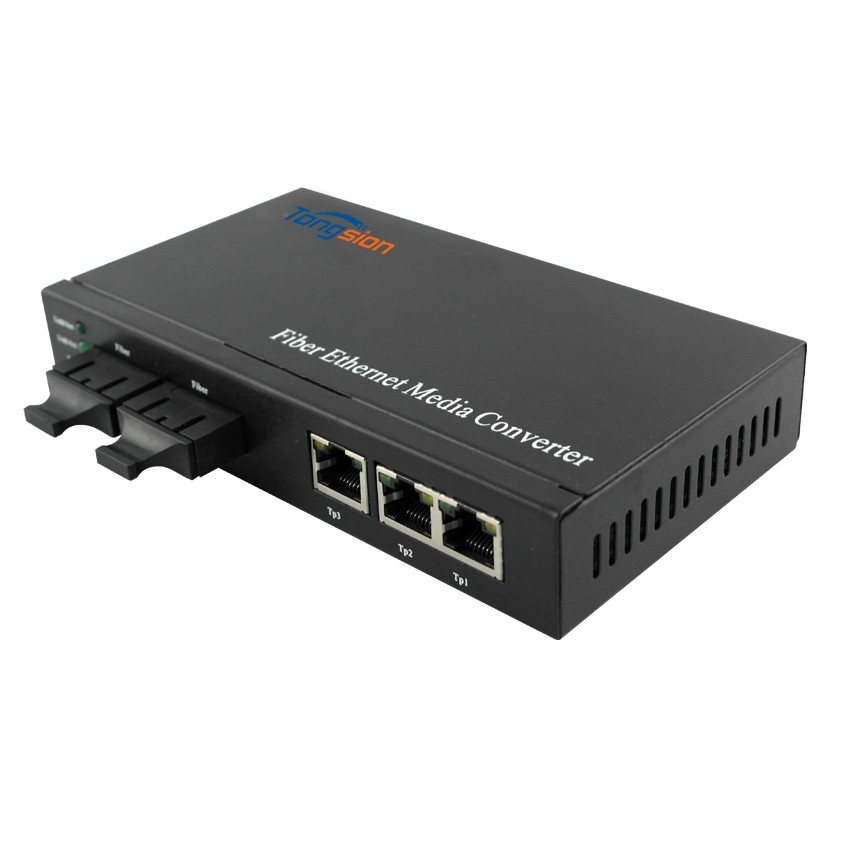

Product Picture




Shipping and Payment




SHIPPING

*Shipment: DHL, UPS, FedEx, TNT, EMS, by air or by sea

*Delivery time: 3-7 working days after received payment receipt

*Packing: standard export packing or customized packing as your request

*Port: Shenzhen or Hongkong

*Professional goods shipping forwarder

*Service: 7x24 hours reply

PAYMENT

* Payment terms: T/T, Paypal, Western Union
* Online trade assurance order


Company Information



FAQ

1.    Are you the real manufacturer?

Yes. We are direct manufacturers of optical transceiver, media converter, POE switch, DAC/AOC cables, Patch cord, Fast connector and so on.

2.    Do you offer Compatible Services?

Yes, we offer compatible service with Cisco, Nortel, Huawei, Extreme, Foundry, Alcatel, Allied, HP, 3COM, Juniper, Enterasys....

3.    Does Tongsion accept a small order?

Yes, it is available. Tongsion support new projects of our customers and a long-term trustworthy relationship always starts from a small order.

4.    Can you supply OEM products under our brand?

Yes, we are manufacturer, we accept OEM service, you just need send us your detailed requirements.

5.   What payment methods do you support?

The methods are followed: T/T, Trade Assurance, Western Union and PayPal.

6.   Do you support sample service?

Of course, all of our products support sample services, samples are divided into paid and free

7.  What if there is quality problem when we get the goods?

If there is quality problem, you can take pictures for our reference, our QC department will check the problem and give best solutions to you, refund or return.
