1.25Gbps 1310nm 40km Optical Transceiver

1.25Gbps 1310nm 40km Optical Transceiver

Place of Original: China
Brand Name: Tongsion/OEM
Model Number: TS-SFP-0240
MOQ: 1PC
Price: Negotiable
Packing Details: PVC box+plastic tray+outer carton
Delivery Time: 2-3 working days after payment
Payment Term: T/T, paypal, Western Union, Payoneer
Supply Ability: 50000pcs/Month

1.25G sfp Modules 1310nm 40KM LC Single Mode Dual Fiber Optic Transceiver Compatible With Cisco Huawei HP

TS-SFP-0240

Features

Dual data-rate of 1.25Gbps/1.063Gbps operation
1310nm DFB laser and PIN photodetector for 40km transmission
Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
Digital Diagnostic Monitoring:
Internal Calibration or External Calibration
Compatible with SONET OC-24-LR-1
Compatible with RoHS
+3.3V single power supply
Operating case temperature range of
0°C to +70°C (Standard) or -40°C to +85°C (Industrial)

Applications

Gigabit Ethernet
Fiber Channel
Switch to Switch interface
Switched backplane applications
Router/Server interface
Other optical transmission systems

Description

The SFP transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps/1.063Gbps and 40km transmission distance with SMF.

The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.

Data Rate	1.25G	Fiber Mode	Single Mode Fiber (SMF)
Types of Interface	LC	Types of Laser	FP
Operating Temperature	Standard 0~70°C	Operating Humidity	0%~90% RH (non condensing)
Transmission distance	10/20/40km	Modes of Communications	Duplex
Wavelength	1310nm	Hot Pluggable Times	200
Receiver Sensitivity	<-23dBm	Extinction Ratio	>9dB
Saturated Optical Power	-3dBm	Power Consumption	<3W
Weight	0.024kg	Power Supply	+3.3V
Hot Pluggable Times	200	Average Output Power	-9 ~ -3dBm

Product parameters:

Part No.	Wavelength	Connector	Temp.	TX Power (dBm)	RX Sens (Max.) (dBm)	DDMI	Distance
TS-SFP-0210	T 1310FP/rx 1100~1610	LC	-20 to 70	-9 to-1	-22	F	10km
TS-SFP-0220	T 1310FP/rx 1100~1610	LC	-20 to 70	-9 to-0	-23	F	20km
TS-SFP-0240	T 1550DFP /R 1100~1610	LC	-20 to 70	-5~0	-24	T	40Km
TS-SFP-0280	T 1610 CWDM/ R 1100~1610	LC	-20 to 70	-3 to 2	-26	T	80km

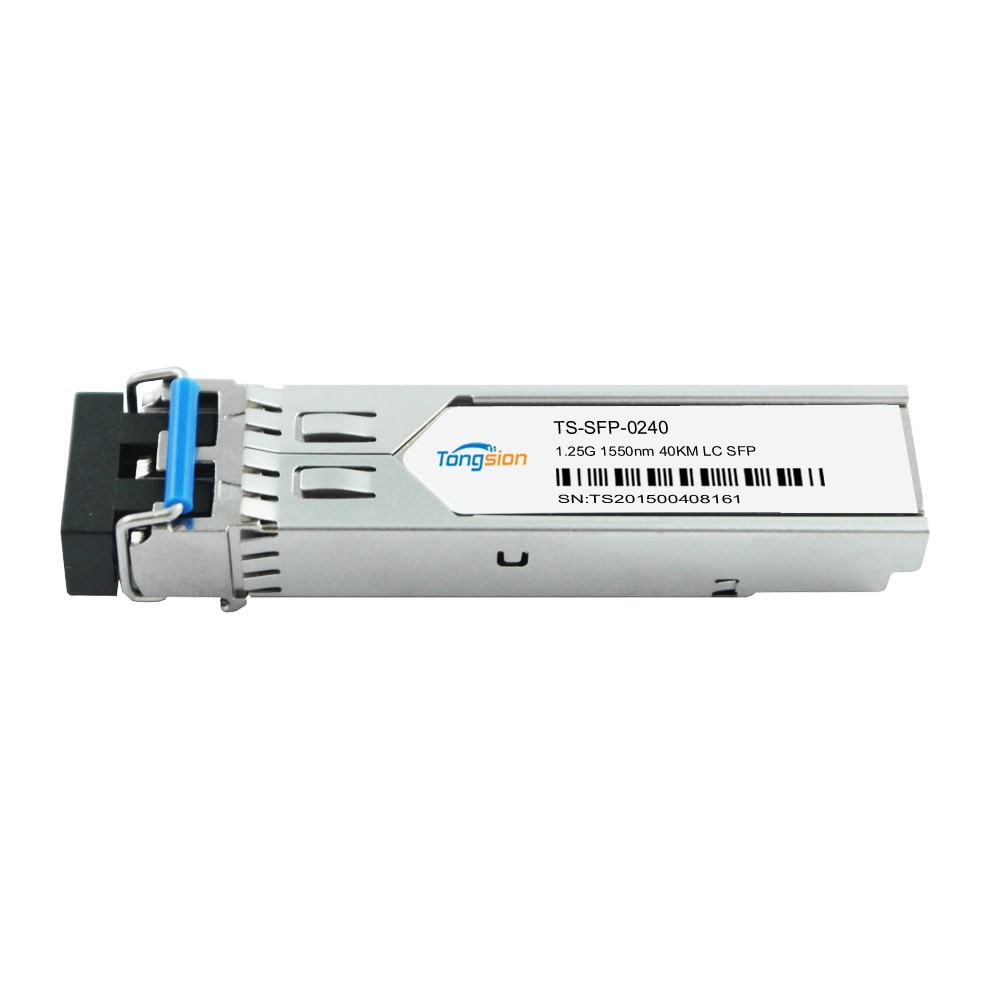

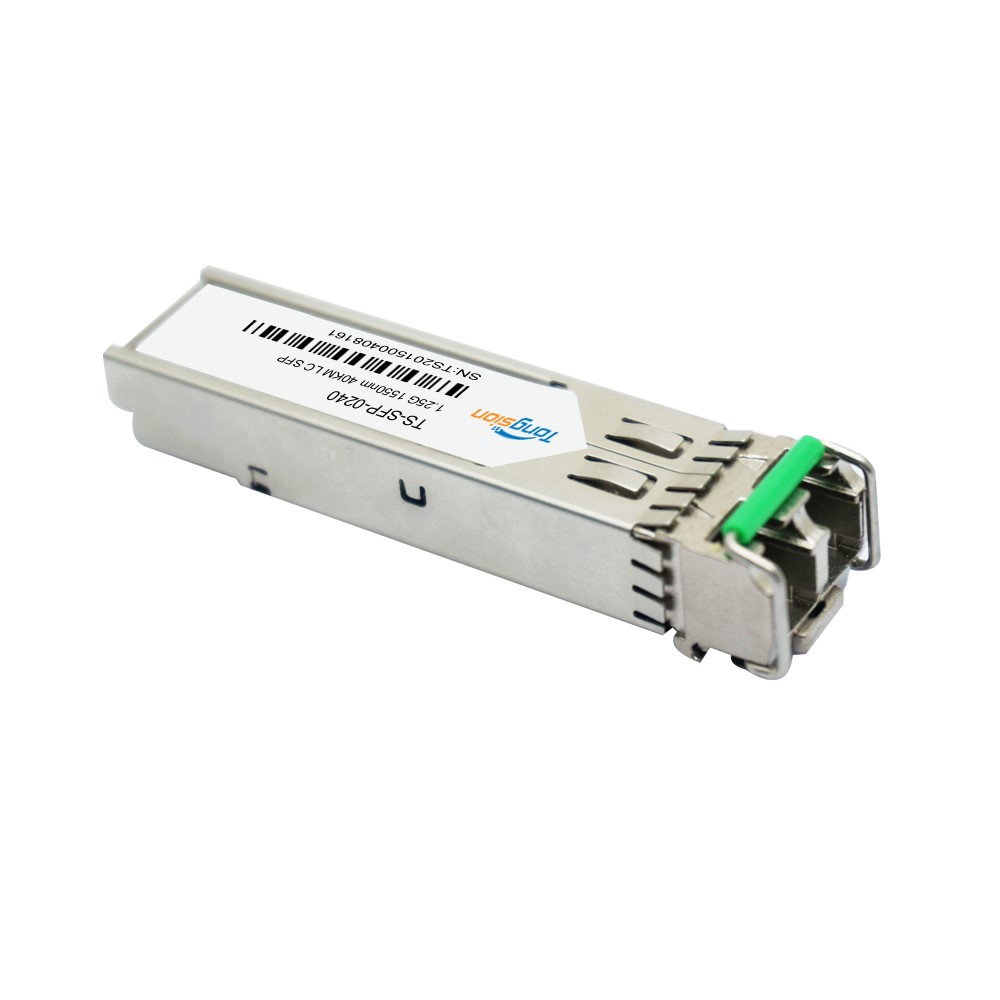

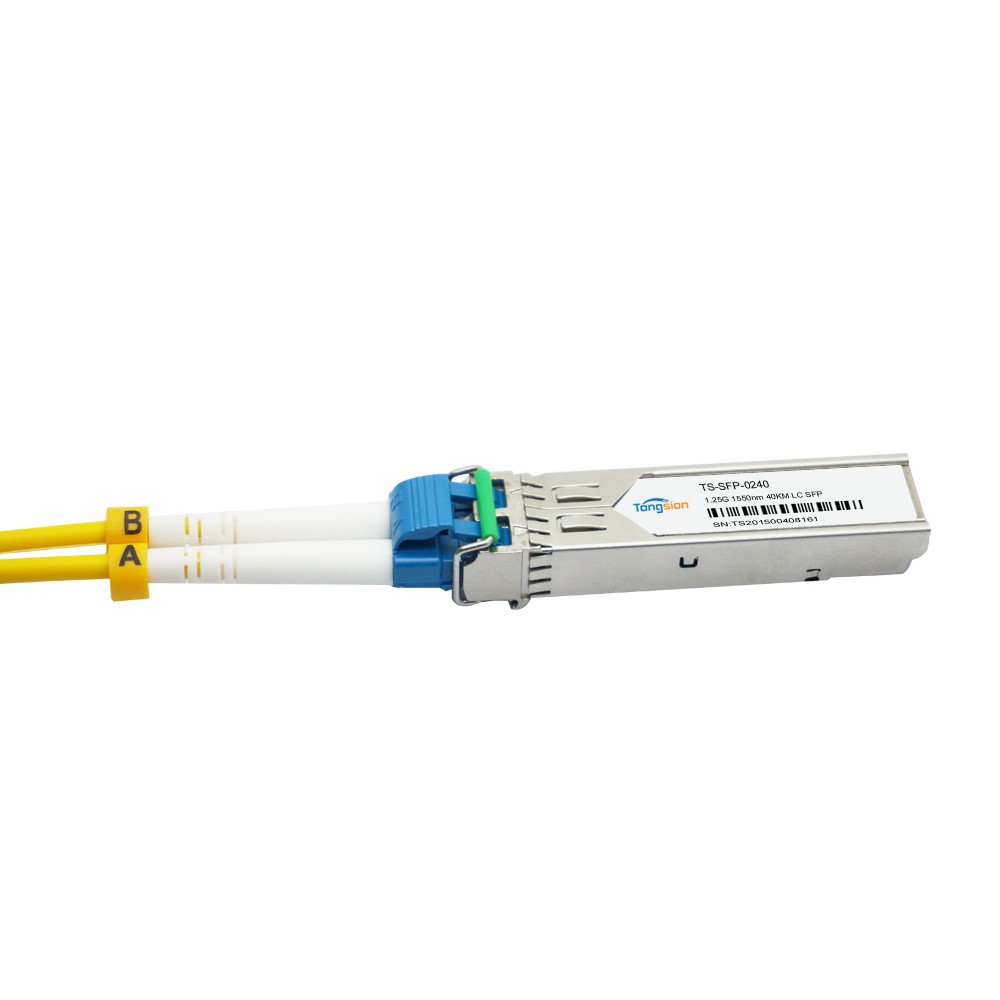

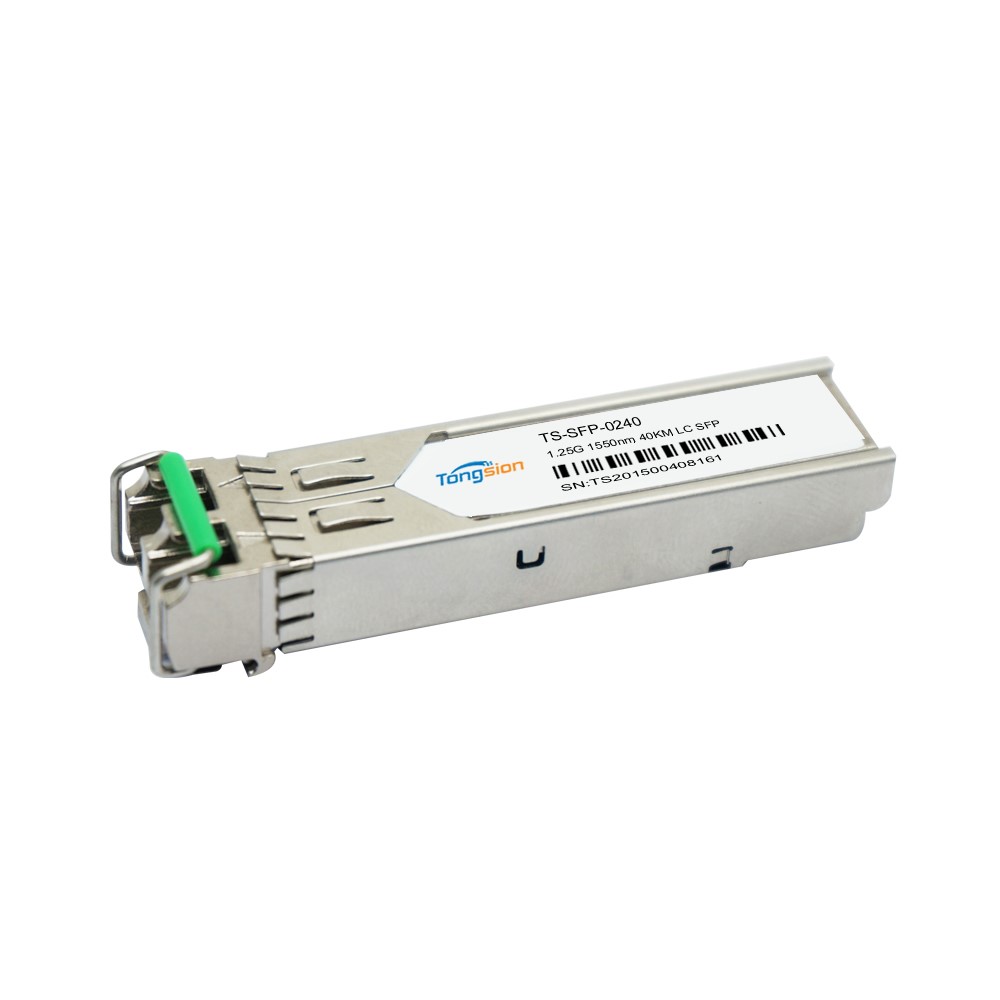

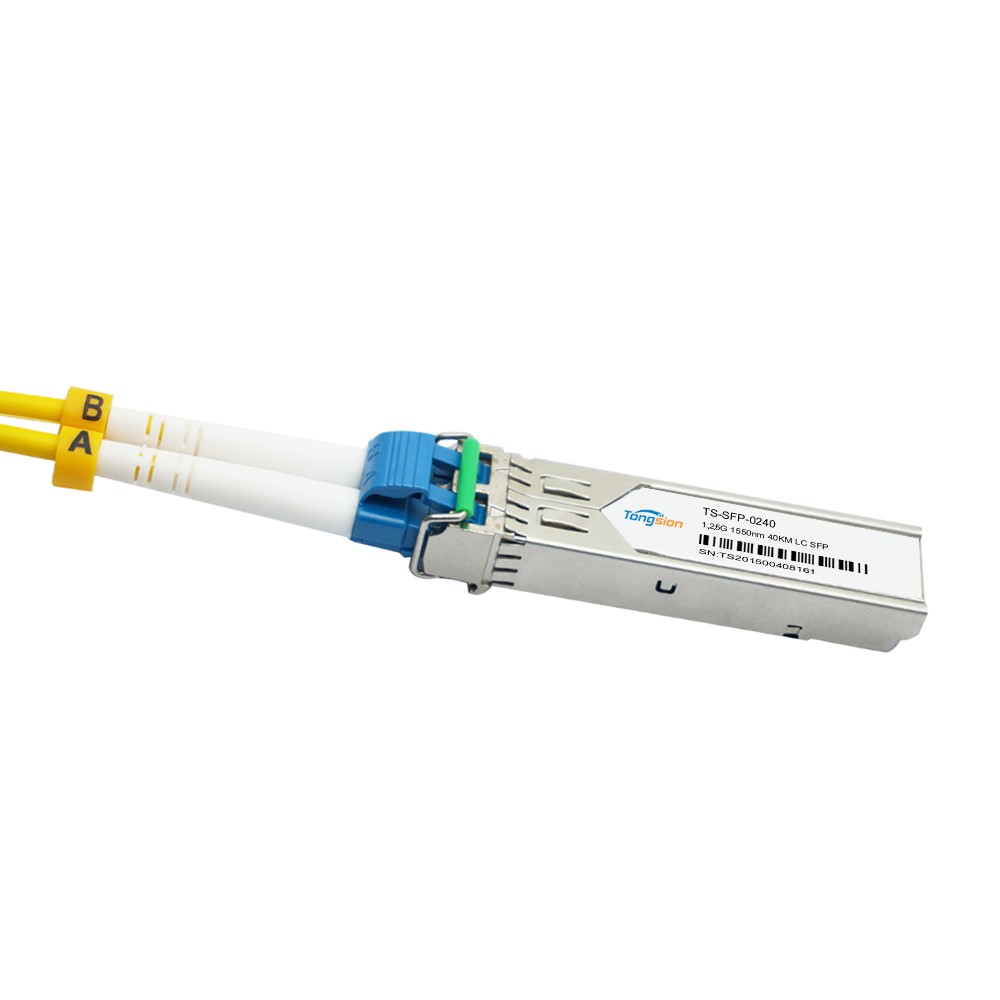

Product Pictures

Payment and Shipping

SHIPPING

*Shipment: DHL, UPS, FedEx, TNT, EMS, by air or by sea

*Delivery time: 3-7 working days after received payment receipt

*Packing: standard export packing or customized packing as your request

*Port: Shenzhen or Hongkong

*Professional goods shipping forwarder

*Service: 7x24 hours reply

PAYMENT

* Payment terms: T/T, Paypal, Western Union
* Payoneer
