10/100M Simplex SM 1310nm Media Converter2

Ethernet Fiber Media Converter 10/100M Singlemode Single Fiber To Rj45 Media Converter

Description

The media converter transforms the transmission media of Ethernet signal from CAT5 to optical fiber. it can extend the transmission distance to several kilometer or hundred kilometer.Using media converter is a economical solution to achieve long distance transmission base on current status.

Technical Parameters

Technical Parameters for 10/100M Adaptive Fast Ethernet Optical Media Converter
Number of Network Ports	1 channel
Number of Optical Ports	2 channel
NIC Transmission Rate	10/100Mbit/s
NIC Transmission Mode	10/100M adaptive with support for automatic inversion of MDI/MDIX
Optical Port Transmission Rate	100Mbit/s
Operating Voltage	AC 220V or DC +5V
Overall Power	<3W
Network Ports	RJ45 port
Optical Specifications	Optical Port: SC, FC,ST (Optional) Multi-Mode: 50/125, 62.5/125um Single-Mode: 8.3/125, 8.7/125um, 8/125,10/125um Wavelength: Single-Mode: 1310/1550nm
Data Channel	IEEE802.3x and collision base backpressure supported Working Mode: Full/half duplex supported Transmission Rate: 1000Mbit/s with error rate of zero

Feature

Specificaion

In accordance with IEEE802.3 10Base-T, IEEE802.3u 100Base-T,
IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-FX
Supported Ports: SC for optical fiber; RJ45 for twisted pair
Auto-adaptation rate and full/half-duplex mode supported at twisted pair port
Auto MDI/MDIX supported without need of cable selection
Up to 6 LEDs for status indication of optical power port and UTP port
External and built-in DC power supplies provided
Up to 1024 MAC addresses supported
512 kb data storage integrated, and 802.1X original MAC address authentication supported
Conflicting frames detection in half-duplex and flow control in full duplex supported

Operating Environment

1) Operating Voltage

AC 220V/ DC +5V

2) Operating Humidity

Operating Temperature: 0℃ to +50℃
Storage Temperature: -20℃ to +70℃
Humidity: 5% to 90%

Application

For intranet prepared for expansion from 100M to 1000M
For integrated data network for multimedia such as image, voice and etc.
For point-to-point computer data transmission
For computer data transmission network in a wide range of business application
For broadband campus network, cable TV and intelligent FTTB/FTTH data tape
In combination with switchboard or other computer network facilitates for: chain-type, star-type and ring-type network and other computer networks

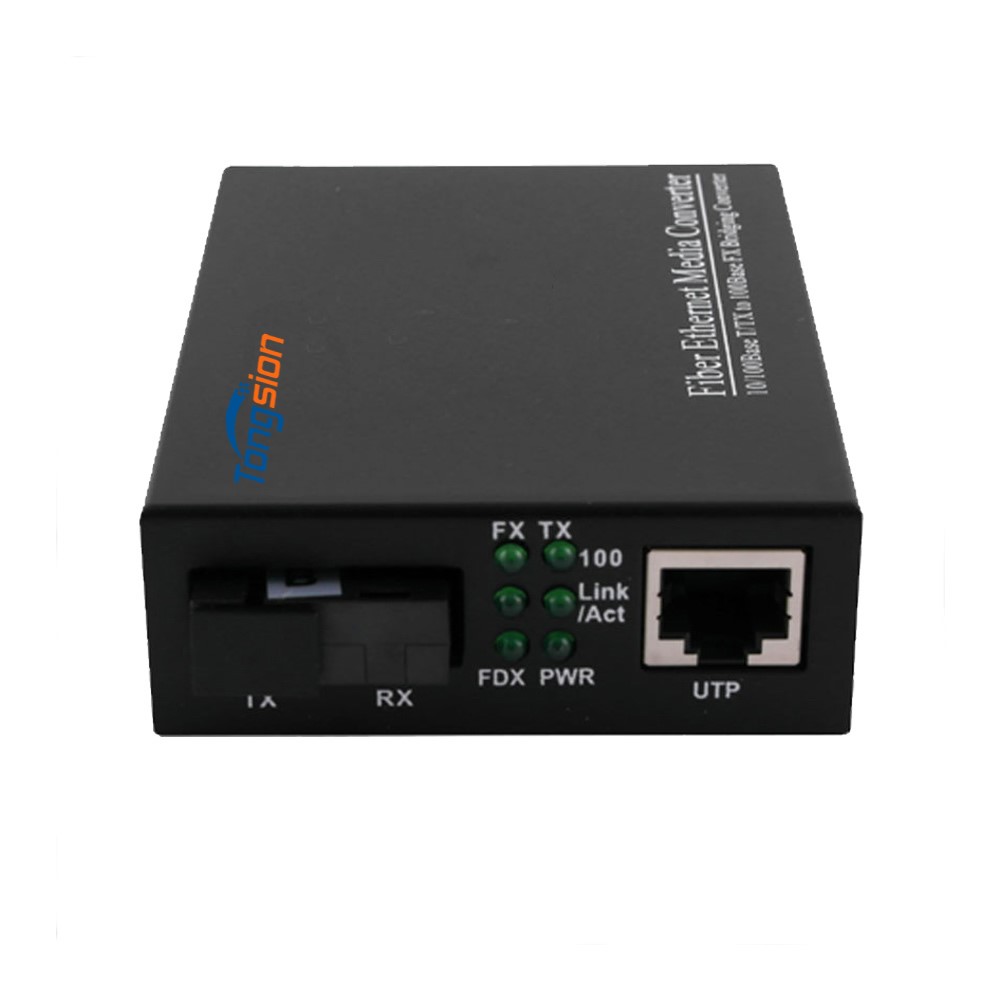

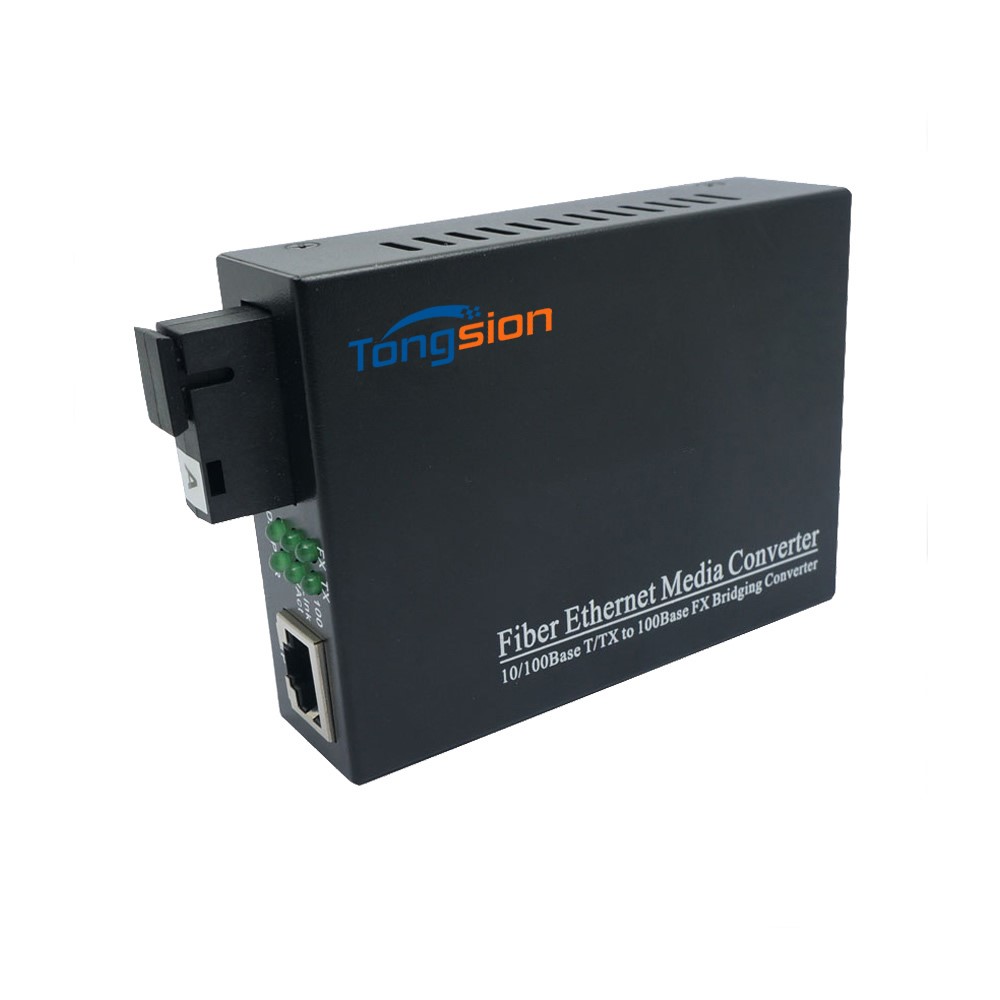

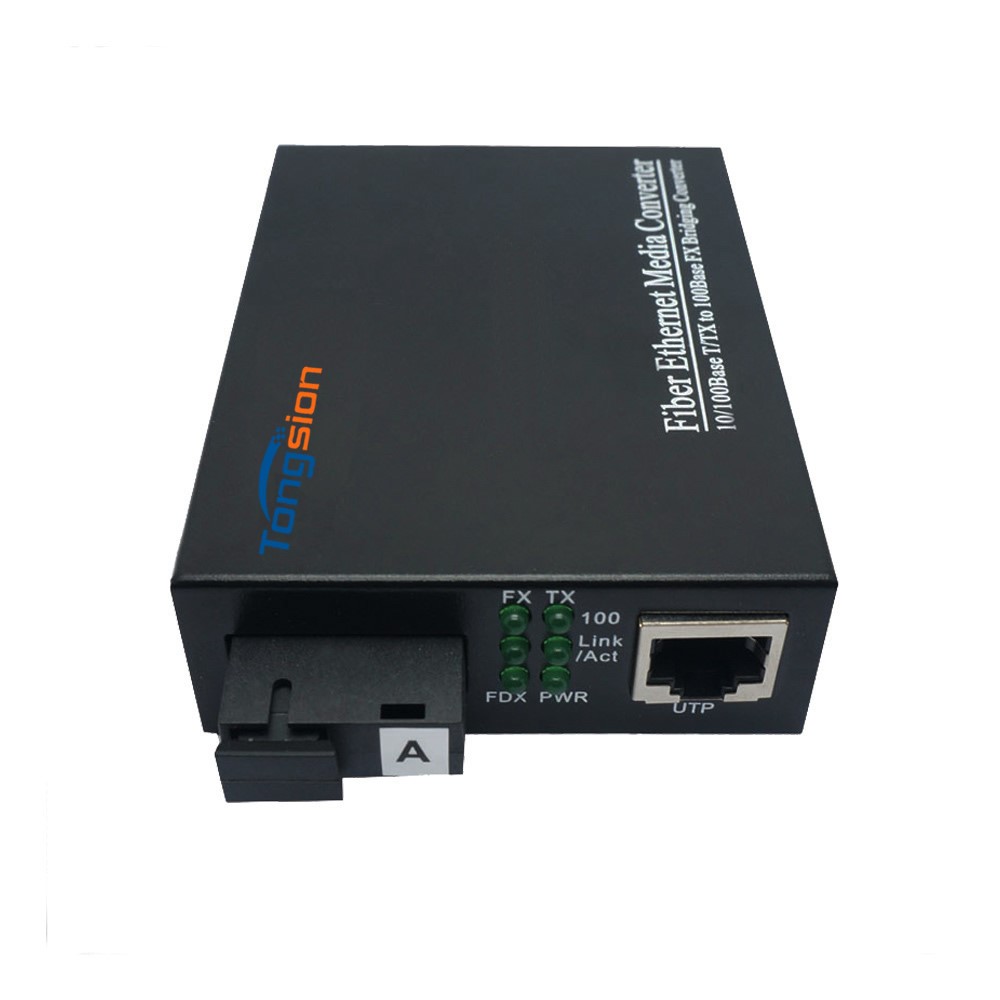

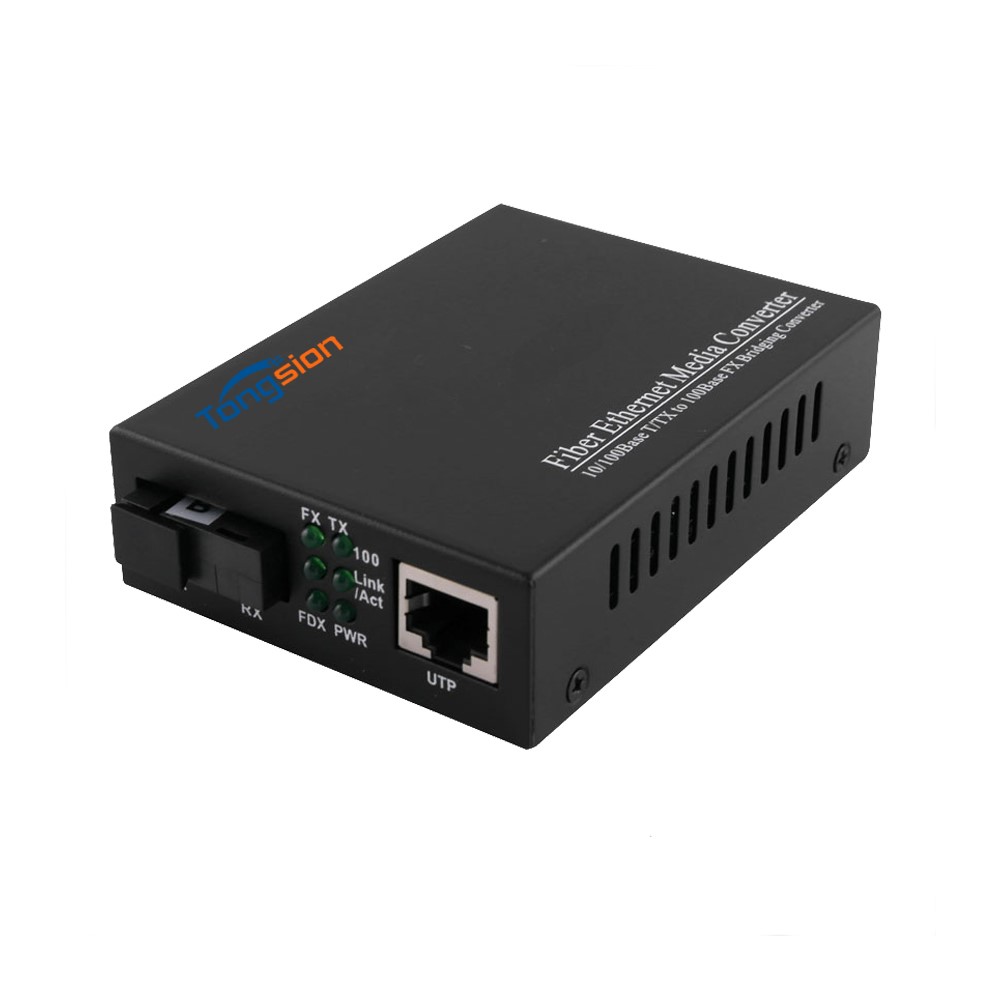

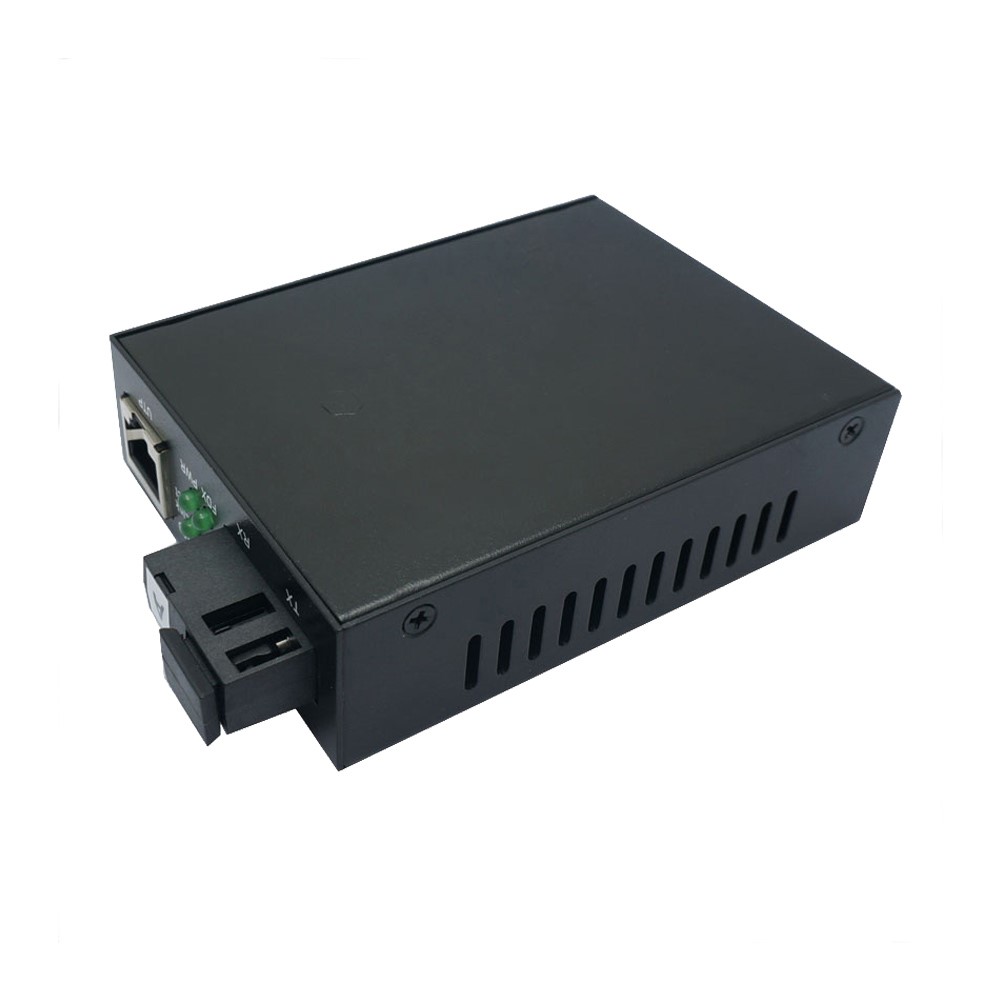

Product Pictures

Shipping and Payment

Company Information

FAQ

1.    Are you the real manufacturer?

Yes. We are direct manufacturers of optical transceiver, media converter, POE switch, DAC/AOC cables, Patch cord, Fast connector and so on.

2.    Do you offer Compatible Services?

Yes, we offer compatible service with Cisco, Nortel, Huawei, Extreme, Foundry, Alcatel, Allied, HP, 3COM, Juniper, Enterasys....

3.    Does Tongsion accept a small order?

Yes, it is available. Tongsion support new projects of our customers and a long-term trustworthy relationship always starts from a small order.

4.    Can you supply OEM products under our brand?

Yes, we are manufacturer, we accept OEM service, you just need send us your detailed requirements.

5.   What payment methods do you support?

The methods are followed: T/T, Trade Assurance, Western Union and PayPal.

6.   Do you support sample service?

Of course, all of our products support sample services, samples are divided into paid and free

7.  What if there is quality problem when we get the goods?

If there is quality problem, you can take pictures for our reference, our QC department will check the problem and give best solutions to you, refund or return.
