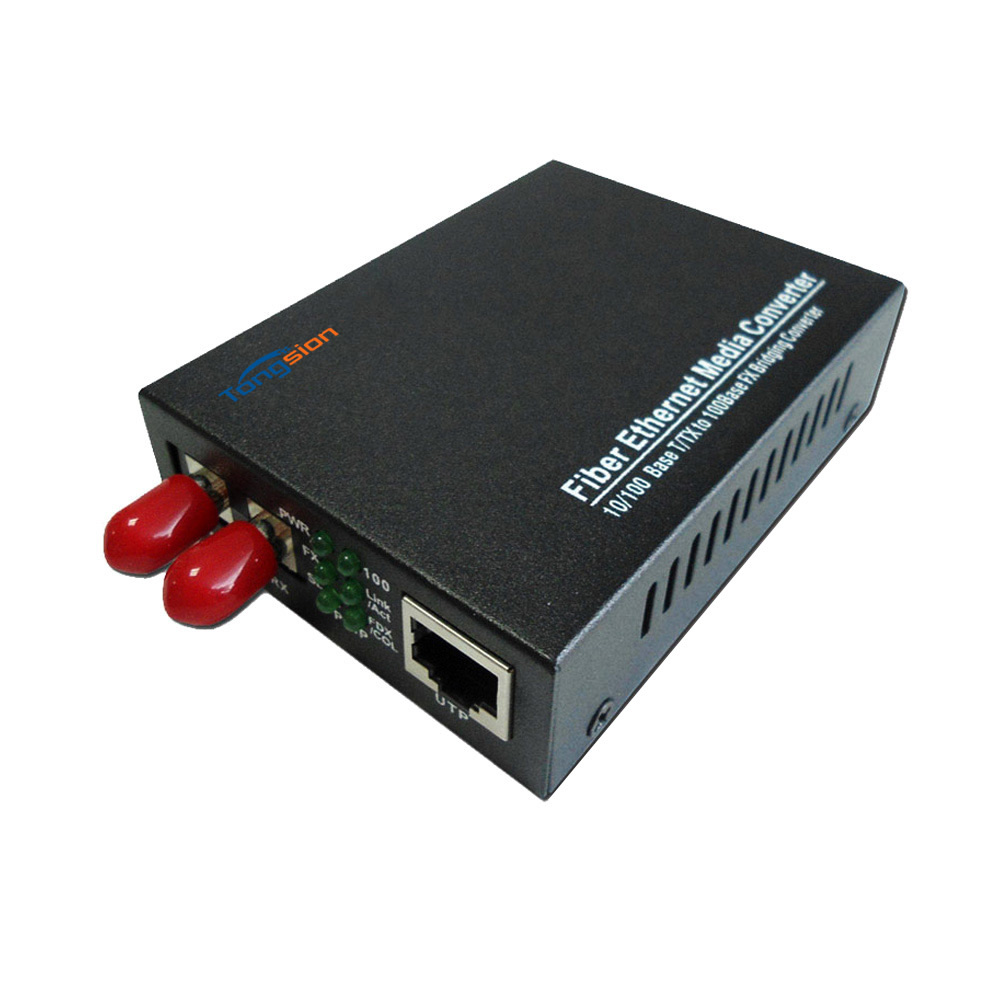

10/100M Duplex SM 1310nm ST Media Converter

Place of Original: China
Brand Name: Tongsion/OEM
Model Number: TS-1F1E-S20
MOQ: 1PC
Price: Negotiable
Packing Details: Plastic bag +inner box+outer carton
Delivery Time: 2-3 working days after payment
Payment Term: T/T, paypal, Western Union, Payoneer
Supply Ability: 50000pcs/Month


Ethernet Fiber Media Converter 10/100M Singlemode Dual Fiber To Rj45 Media Converter

Description

The media converter transforms the transmission media of Ethernet signal from CAT5 to optical fiber. it can extend the transmission distance to several kilometer or hundred kilometer.Using media converter is a economical solution to achieve long distance transmission base on current status.


Product NameMedia Converter, Fiber SwitchDatarate10/100M
Wavelength1310nmTransmission Distance20KM
ConnectorSC ST FCFiber TypeDuplex, Single Mode
Power SupplyExternal/internal Power SupplyWarranty3 Years
High Lightsfp media converter, 10/100M ethernet media converter, Fiber Switch



Technical Parameters

Technical Parameters for 10/100M Adaptive Fast Ethernet Optical Media Converter

Number of Network Ports1 channel
Number of Optical Ports2 channel1.jpg
NIC Transmission Rate10/100Mbit/s
NIC Transmission Mode10/100M adaptive with support for automatic inversion of MDI/MDIX
Optical Port Transmission Rate100Mbit/s
Operating VoltageAC 220V or DC +5V
Overall Power<3W
Network PortsRJ45 port
Optical SpecificationsOptical Port: SC, FC,ST (Optional)
Multi-Mode: 50/125, 62.5/125um Single-Mode: 8.3/125, 8.7/125um, 8/125,10/125um
Wavelength: Single-Mode: 1310/1550nm
Data ChannelIEEE802.3x and collision base backpressure supported
Working Mode: Full/half duplex supported Transmission Rate: 1000Mbit/s
with error rate of zero


Feature

10/100M Dual fiber
Connector typeSTSTSTSTST
Fiber typeMulti-modeSingle-modeSingle-modeSingle-modeSingle-mode
Wavelength850nm1310nm1310nm1550nm1550nm
Max Distance62.5µm: 224m20Km40Km60Km80Km
50µm: 550m
Min TX PWR-11.0dBm-9.0dBm-4.0dBm-8.0dBm-3.0dBm
Max TX PWR-6.0dBm-5.0dBm0dBm0dBm0dBm
Sensitivity< -18dBm< -21dBm< -24dBm< -25dBm< -25dBm
Link Budget7.0dBm12.0dBm20.0dBm17.0dBm22.0dBm




10/100M Single fiber
Connector typeSTSTSTST
Fiber typeSingle-modeSingle-modeSingle-modeSingle-mode
Wavelength1310/1550nm1310/1550nm1310/1550nm1490/1550nm
Max Distance20Km40Km60Km80Km
Min TX PWR-10.0dBm-4.0/-8dBm0/-5.0dBm-1dBm
Max TX PWR-4.0dBm0dBm3/0dBm3dBm
Sensitivity< -22dBm< -25dBm<-25dBm< -25dBm
Link Budget12.0dBm20/17dBm25/20dBm24.0dBm



Specificaion

In accordance with IEEE802.3 10Base-T, IEEE802.3u 100Base-T,
IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-FX

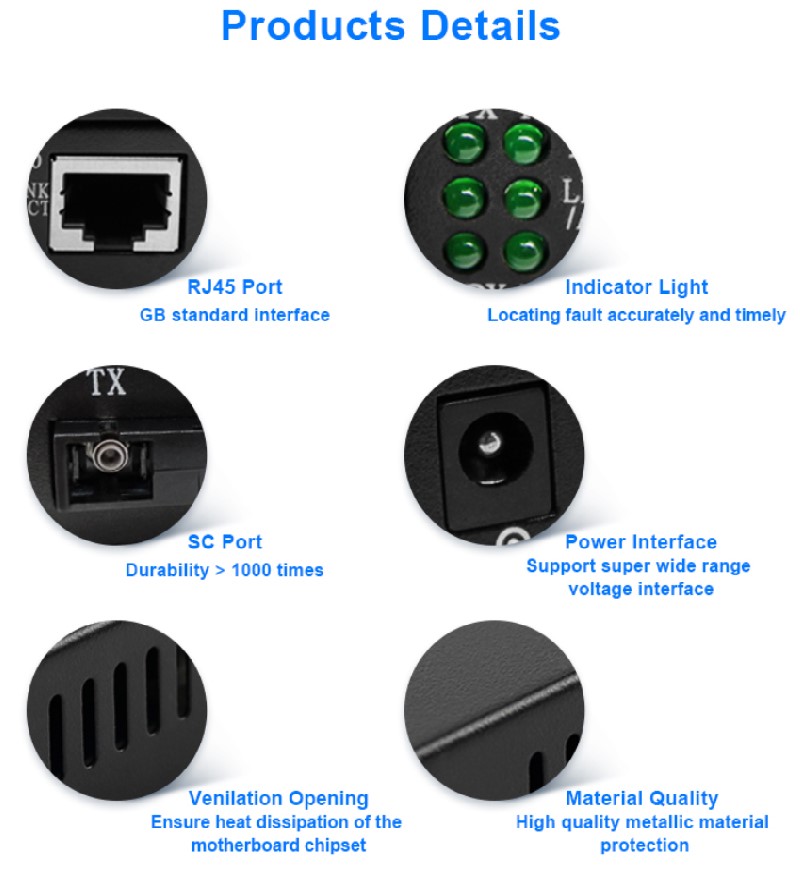

Supported Ports: SC for optical fiber; RJ45 for twisted pair
Auto-adaptation rate and full/half-duplex mode supported at twisted pair port
Auto MDI/MDIX supported without need of cable selection
Up to 6 LEDs for status indication of optical power port and UTP port

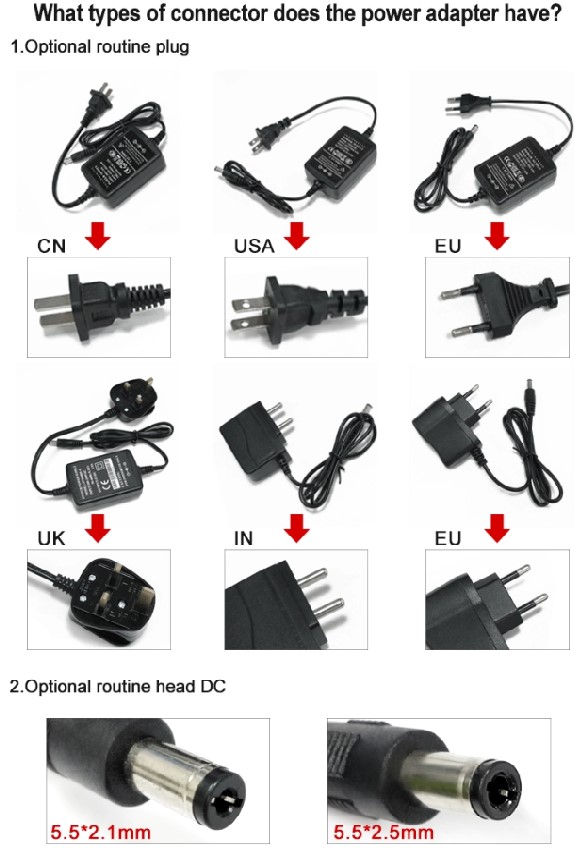

External and built-in DC power supplies provided
Up to 1024 MAC addresses supported
512 kb data storage integrated, and 802.1X original MAC address authentication supported
Conflicting frames detection in half-duplex and flow control in full duplex supported



Operating Environment

1) Operating Voltage

AC 220V/ DC +5V

2) Operating Humidity

Operating Temperature: 0℃ to +50℃
Storage Temperature: -20℃ to +70℃
Humidity: 5% to 90%



Application

For intranet prepared for expansion from 100M to 1000M
For integrated data network for multimedia such as image, voice and etc.
For point-to-point computer data transmission
For computer data transmission network in a wide range of business application
For broadband campus network, cable TV and intelligent FTTB/FTTH data tape
In combination with switchboard or other computer network facilitates for: chain-type, star-type and ring-type network and other computer networks
