10/100M 1Fiber+2RJ45 Ports Media Converter

Fiber Media Converter 100M 1 Fiber+2Rj45 Port Ethernet to Fiber Media Converter

Description

The series is Ethernet media converter that converts the copper UTP media to the multimode or single mode fiber with duplex SC, ST, and LC interface. The equipped auto-negotiation function enables the media converters to operate at 10 or 100Mbps copper Ethernet or Fast Ethernet and the 100Mbps fiber. This conversion complies with IEEE802.3 and IEEE802.3u standards with two different network connection media, 10/100Base-TX and 100Base-FX. The data transmission is realized by switching and store-and-forward technologies.
Link fault pass through capability is built inside the media converters. LEDs on the front panel therefore display the media converter status and the far end fault conditions for network diagnosis purpose.
This series of media converter can be used as a stand-alone device or be directly mounted into 2U 19”rack mount chassis. Fourteen/Sixteen media converter slots can be accommodated in this chassis.

Technical Parameters

Technical Parameters for 10/100M Adaptive Fast Ethernet Optical Media Converter
Number of Network Ports			2 channel
Number of Optical Ports			1 channel
NIC Transmission Rate			10/100 Mbit/s
NIC Transmission Mode			10/100M adaptive with support for automatic inversion of MDI/MDIX
Optical Port Transmission Rate			100Mbit/s
Operating Voltage			AC 220V or DC +5V
Overall Power			<1W
Network Ports			RJ45 port
Optical Specifications			Optical Port: SCMulti-Mode: 50/125, 62.5/125um Single-Mode: 8.3/125, 8.7/125um, 8/125,10/125um
Data Channel			IEEE802.3x and collision base backpressure supportedWorking Mode: Full/half duplex supported Transmission Rate: 100Mbit/swith error rate of zero
Desk Type Dual-Optical Single-Mode/Multi-Mode Media Converter
P/N		Wavelength (nm)		Optical Port	Electric Port		Optical Power (dBm)	Receiving Sensitivity (dBm)		Transmission Range (km)
1		850		SC	RJ-45		-8~ -3	≤-19		0.55
2		1,310		SC	RJ-45		-20~ -15	≤-34		2
3		1,550		SC	RJ-45		-15~ -8	≤-34		10
4		1,310		SC	RJ-45		-15~ -3	≤-34		20
5		1,310		SC	RJ-45		-8~ -3	≤-34		40
6		1,310		SC	RJ-45		-5~0	≤-34		60
7		1,550		SC	RJ-45		-5~0	≤-34		80
8		1,550		SC	RJ-45		-3~3	≤-36		100
9		1,550		SC	RJ-45		0~5	≤-36		120

 Feature

1. Complies with IEEE 802.3 10 Base-T standard.

2. Complies with IEEE 802.3u 10/100 Base-TX/FX standard

3. Complies with IEEE 802.3X standard.

4. 10/100Mbps port with full/half duplex auto-negotiation

5. Back pressure flow control for full duplex

6. Converter mode with auto-change-forward(Switch)function

7. Back pressure flow control for full/half duplex IEEE802.3X.

8. Automatic identification of MDI/MDI-X cross-line.

9. High-performance 155Mbps bandwidth.

10. Complies with FCC, 15 CLASS A ,Rosh and CE MARK

 Specificaion

Please Note:please tell us before order

1.Your quantity

2.Power adpter type:UK,US,EU ect

3.With our logo or OEM,with your logo

4.Other requirements

Net Weight:0.64kg/pc

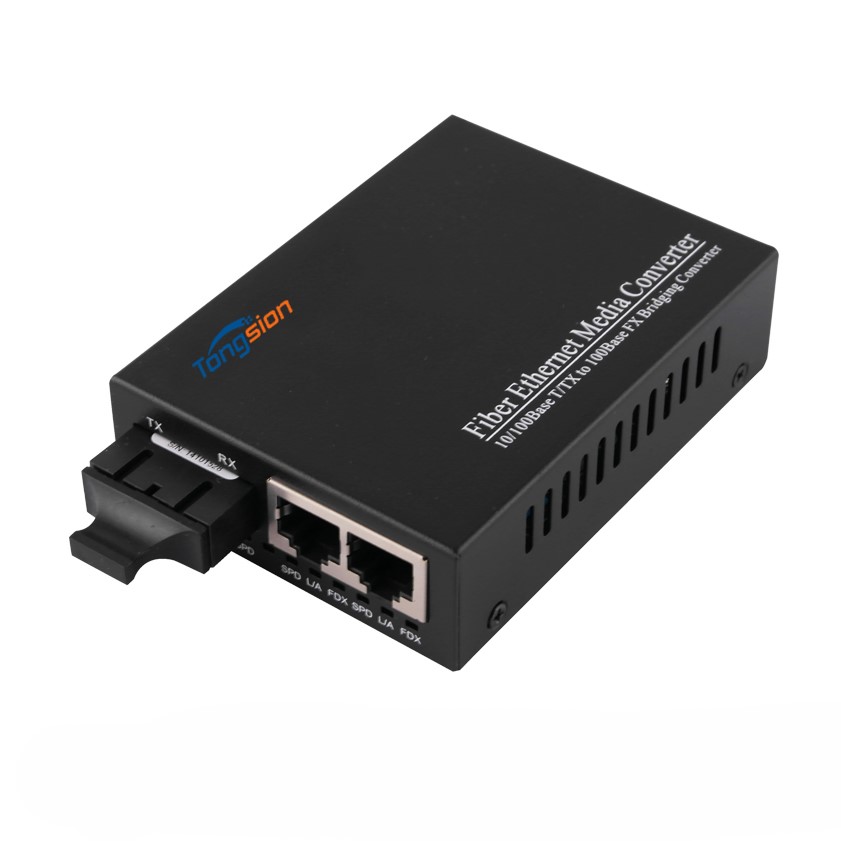

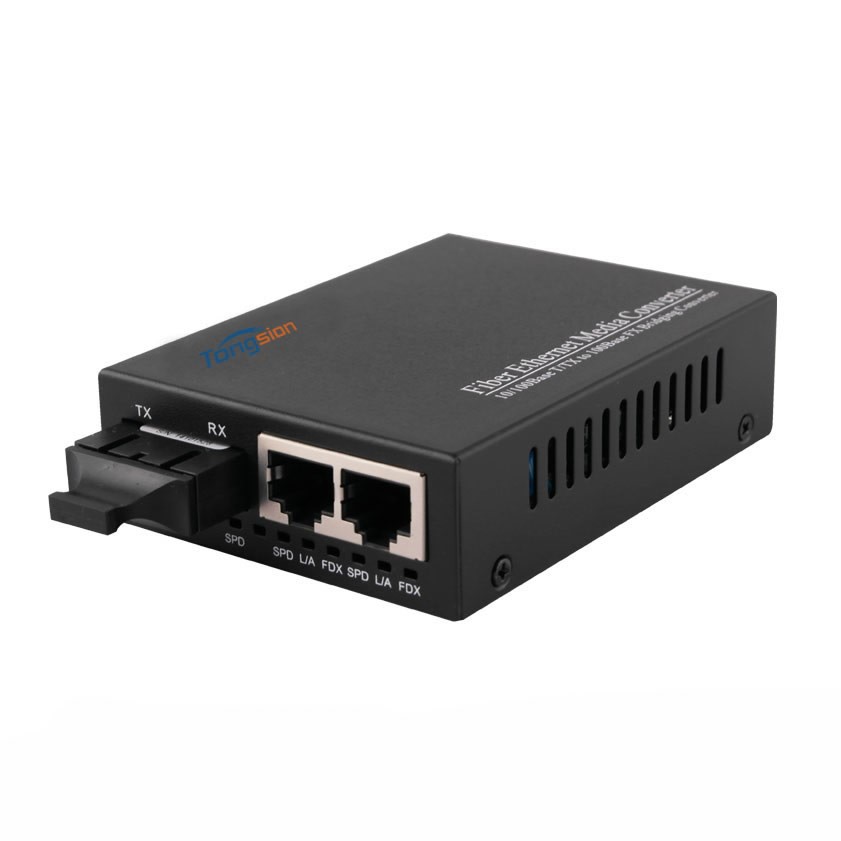

Product Picture
