100G QSFP28 20KM LC Optical Transceiver

Place of Original: China
Brand Name: Tongsion/OEM
Model Number: TS-QSFP28-LR4
MOQ: 1PC
Price: Negotiable
Packing Details: PVC box+plastic tray+outer carton
Delivery Time: 2-3 working days after payment
Payment Term: T/T, paypal, Western Union, Payoneer
Supply Ability: 50000pcs/Month

TS-Qsfp28-LR4

100Gb/s 20km QSFP28 Transceiver

Hot Pluggable, Duplex LC Connector, Single mode


Features:

² 4 lanes MUX/DEMUX design

² Integrated LAN WDM TOSA / ROSA for up to 10 km reach over SMF28

² Support 100GBASE-LR4 for line rate of 103.125Gbps and OTU4 for line rate of 111.81Gbps

² Aggregate bandwidth of > 100Gbps

² Duplex LC connector

²  Compliant with IEEE 802.3-2012 Clause 88 standard IEEE 802.3bm CAUI-4 chip to module electrical standard ITU-T G.959.1-2012-02 standard ·

² Single +3.3V power supply operating

² Built-in digital diagnostic functions

² Temperature range 0°C to 70°C

² RoHS Compliant Part

Applications:

² Local Area Network (LAN)

² Wide Area Network (WAN)

² Ethernet switches and router applications

Description:

The TS-QSFP28-LR4 is a transceiver module designed for 10km optical communication applications. The design is compliant to 100GbASE-LR4 of the IEEE 802.3-2012 Clause 88 standard IEEE 802.3bm CAUI-4 chip to module electrical standard ITU-T G.959.1-2012-02 standard. The module converts 4 inputs channels (ch) of 25.78 Gbps to 27.95Gbps electrical data to 4 lanes optical signals, and multiplexes them into a single channel for 100Gb/s optical transmission. Reversely, on the receiver side, the module optically de-multiplexes a 100 GB/s input into 4 lanes signals, and converts them to 4 lanes output electrical data.

The central wavelengths of the 4 lanes are 1296 nm, 1300 nm, 1305 nm and 1309 nm. It contains a duplex LC connector for the optical interface and a 38-pin connector for the electrical interface. To minimize the optical dispersion in the long-haul system, single-mode fiber (SMF) has to be applied in this module.

The product is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP28 Multi-Source Agreement (MSA). It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference.

The module operates from a single +3.3V power supply and LVCMOS/LVTTL global control signals such as Module Present, Reset, Interrupt and Low Power Mode are available with the modules. A 2-wire serial interface is available to send and receive more complex control signals and to obtain digital diagnostic information. Individual channels can be addressed and unused channels can be shut down for maximum design flexibility.

The TS-QSFP28-LR4 is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP28 Multi-Source Agreement (MSA). It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference. The module offers very high functionality and feature integration, accessible via a two-wire serial interface.


Product NameFiber Optical TransceiverDatarate100G QSFP28
Wavelength1310nmTransmission Distance20KM
ConnectorLCFiber TypeDual fiber, Single Mode
ApplicationGigabit Ethernet,Fiber Channel,Switch To Switch InterfaceWarranty3 Years
High Lightfiber optic transceiver, fiber optic sfp module.100G QSFP28 Transceiver


Ordering information

Part NumberProduct Description
TS-QSFP28-SR4optical transceiver,100Gb/s,QSFP28 MMF,850nm,100m, SR4 MPO
TS-QSFP28-LR4optical transceiver,100Gb/s,QSFP28 SMF, 1310nm, 10KM, LR4 LC CWDM4
TS-QSFP28-LR4optical transceiver,100Gb/s,QSFP28 SMF, 1310nm, 10KM, LR4 LC
TS-QSFP28-LR4optical transceiver,100Gb/s,QSFP28 SMF, 1310nm, 20KM, LR4 LC
TS-QSFP28-ER4optical transceiver,100Gb/s,QSFP28 SMF, 1310nm, 40KM, LR4 LC Lite



Competitive advantage:
1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Full compatible (CISCO/HP/Extreme/Juniper/H3C…)
4. OEM/ODM  Customized label
5. Keep stock,Fast delivery

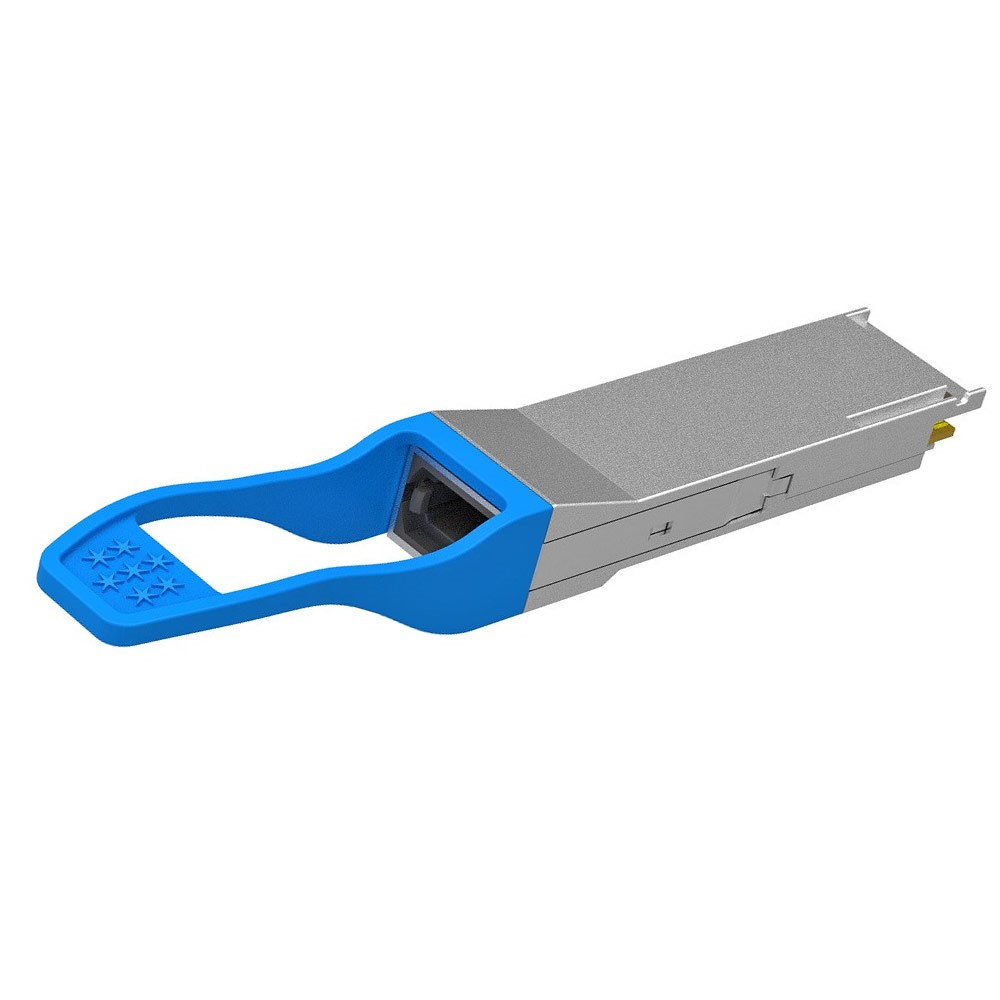

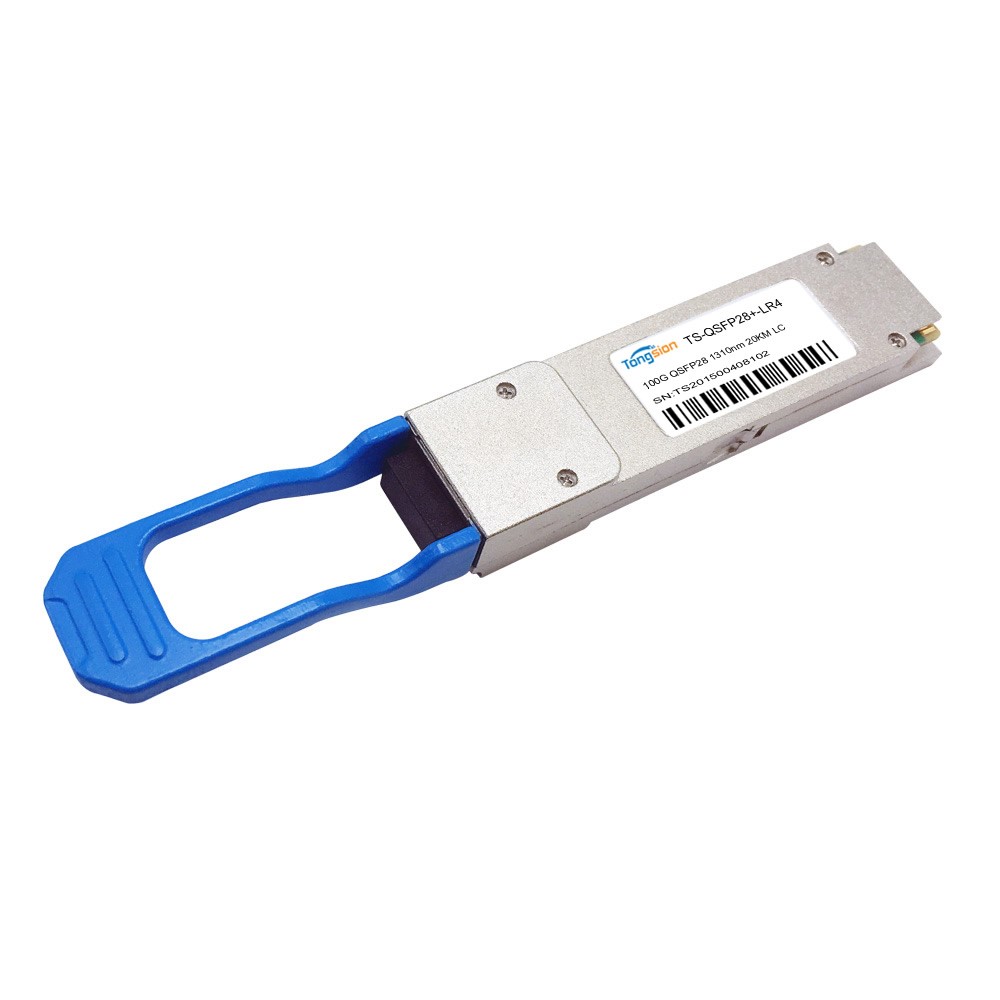

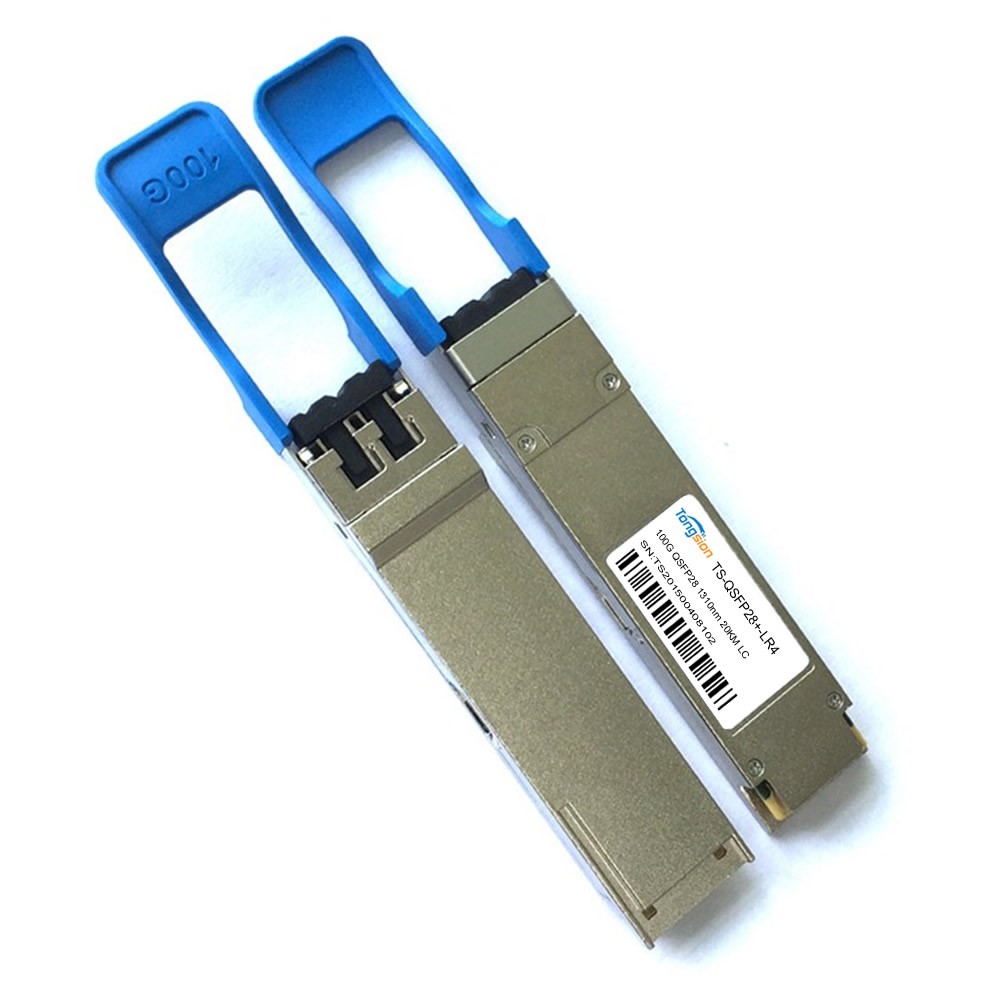

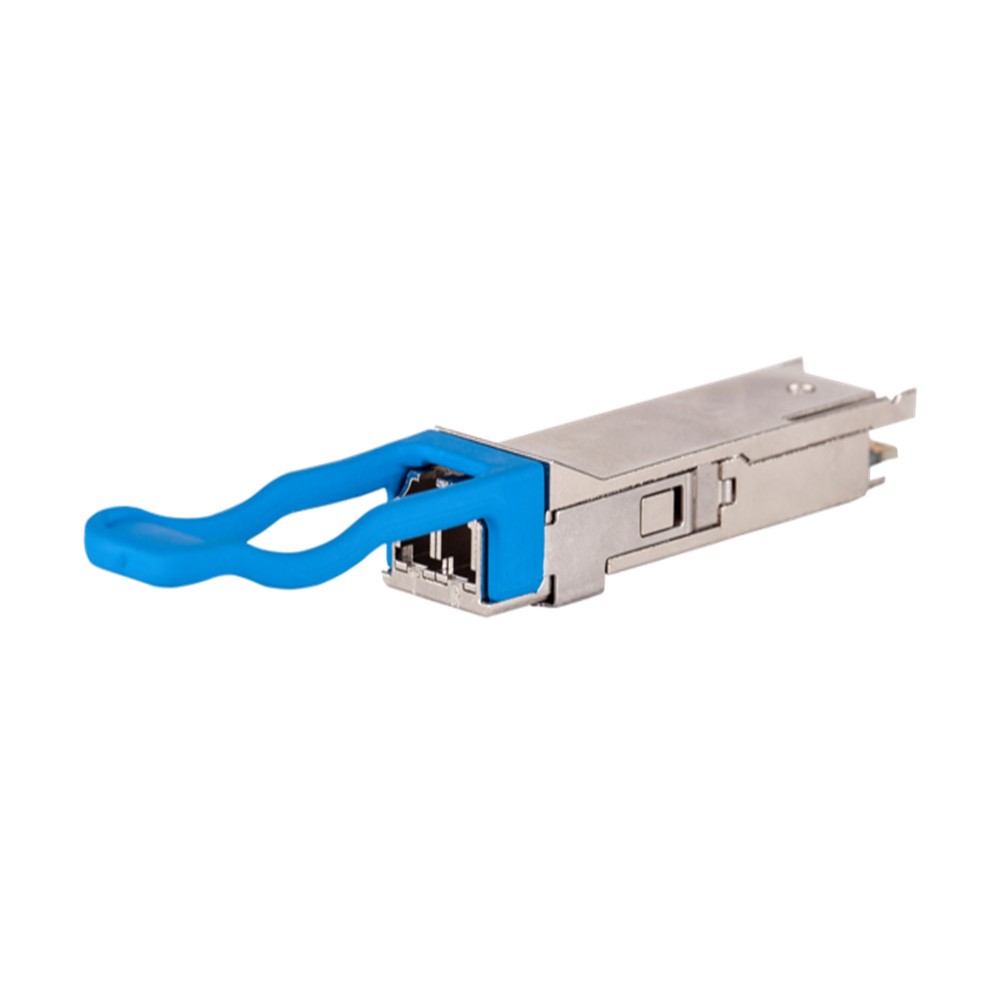

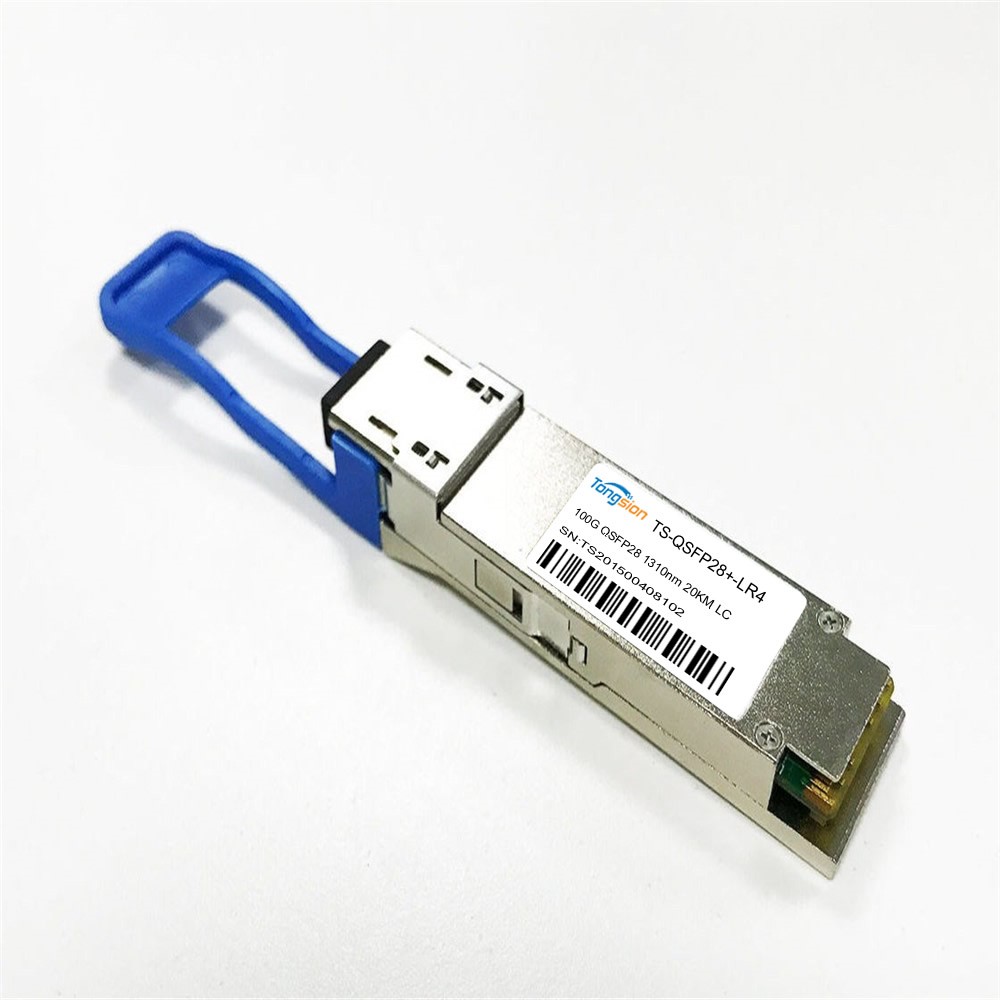

Product Picture

QSFP-100G-LR4 20KM LC4_副本.jpg



Payment and shipping


Shipping*Shipment: DHL, UPS, FedEx, TNT, EMS, by air or by sea
*Delivery time: 3-7 working days after received payment receipt
*Packing: standard export packing or customized packing as your request
*Port: Shenzhen or Hongkong
*Professional goods shipping forwarder
*Service: 7x24 hours reply
Payment* Payment terms: T/T, Paypal, Western Union, Payoneer

FAQ

1.    Are you the real manufacturer?

Yes. We are direct manufacturers of optical transceiver, media converter, POE switch, DAC/AOC cables, Patch cord, Fast connector and so on.

2.    Do you offer Compatible Services?

Yes, we offer compatible service with Cisco, Nortel, Huawei, Extreme, Foundry, Alcatel, Allied, HP, 3COM, Juniper, Enterasys....

3.    Does Tongsion accept a small order?

Yes, it is available. Tongsion support new projects of our customers and a long-term trustworthy relationship always starts from a small order.

4.    Can you supply OEM products under our brand?

Yes, we are manufacturer, we accept OEM service, you just need send us your detailed requirements.

5.   What payment methods do you support?

The methods are followed: T/T, Trade Assurance, Western Union and PayPal.

6.   Do you support sample service?

Of course, all of our products support sample services, samples are divided into paid and free

7.  What if there is quality problem when we get the goods?

If there is quality problem, you can take pictures for our reference, our QC department will check the problem and give best solutions to you, refund or return.
