100G QSFP28 to 4SFP28 DAC 1M AWG30 Twinax Passive Direct Attach Copper Cable

100G QSFP28 to 4SFP28 DAC 1M AWG30 Twinax Passive Direct Attach Copper Cable

Place of Original: China
Brand Name: Neutral/OEM
Model Number: TS-QSFP28-4SFP28-DAC-30-1
MOQ: 1PC
Price: Negotiable
Packing Details: Plastic bag
Delivery Time: 2-4 working days after payment
Payment Term: T/T, paypal, Western Union, Payoneer
Supply Ability: 50000pcs/Month

100G Qsfp28 to 4SFP28 Direct Attach Cable (DAC) 100G Breakout PCC cable 1M
Compatible cisco 100Gbps QSFP28 to 4SFP28 Direct Attach Copper Cable

General Description

QSFP28 Direct Attach Cables are compliant with the SFF-8665 specifications. Various choices of wire gauge are available from 30 to 24 AWG with various choices of cable length (up to 5m).

Product Name	DAC Cable 100G QSFP28	Length	1M
Cable Type	Direct Attach Copper Cable	Form Factor	QSFP28 to 4SFP28
Transfer Date	100G	Application	Gigabit Ethernet
Cable Color	Black	Warranty	3 Years
High Light	DAC Copper Cable, Direct Attached Copper Cable

Features and Benefits

1. Compatible with IEEE 802.3bj, IEEE 802.3by and InfiniBand EDR
2. Supports aggregate data rates of 100Gbps
3. Optimized construction to minimize insertion loss and cross talk
4. Backward compatible with existing QSFP+ connectors and cages
5. Pull-to-release slide latch design
6. 26AWG through 30AWG cable
7. Straight and break out assembly configurations available
8. Customized cable braid termination limits EMI radiation
9. Customizable EEPROM mapping for cable signature
10. RoHS compliant

Product Applications
1. Switches, servers and routers
2. Data Center networks
3. Storage area networks
4. High performance computing
5. Telecommunication and wireless infrastructure
6. Medical diagnostics and networking
7. Test and measurement equipment

Industry Standards
1. 100G Ethernet(IEEE 802.3by)
2. 25G Ethernet(IEEE 802.3by)
3. InfiniBand EDR
4. SFF-8665 QSFP+ 28G 4X Pluggable Transceiver Solution(QSFP28)
5. SFF-8402 SFP+ 1X 28Gb/s Pluggable Transceiver Solution(SFP28)

Parameter

Package(Form Factor)	100G QSFP28 to 4SFP28 Copper Cable
Data Rate(typical)	Breakout 25.78 Gbps/CH
Distance	Up to 5m Copper Cable Passive
Low/High Case Temperature	0°C~70°C
Voltage Supply	3.3V (Typical)
Connector	QSFP28 100G TO 4SFP28 25G

Products Series:

Direct Attach Copper Cables

100Gb/s QSFP28 to QSFP28 DAC 1-5m

100Gb/s QSFP28 to 4*25G Dac 1-6m

40Gb/s QSFP+ DAC 1-10m

40Gb/s QSFP+ to 4*10G SFP+ DAC 1-10m

40Gb/s QSFP+ 8*LC Dac Cable 1-10m

10Gb/s SFP+ Passive Cable 1-10m

Competitive advantage:

1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Full compatible (CISCO/HP/Extreme/Juniper/H3C…)
4. OEM/ODM Customized label
5. Keep stock,Fast delivery

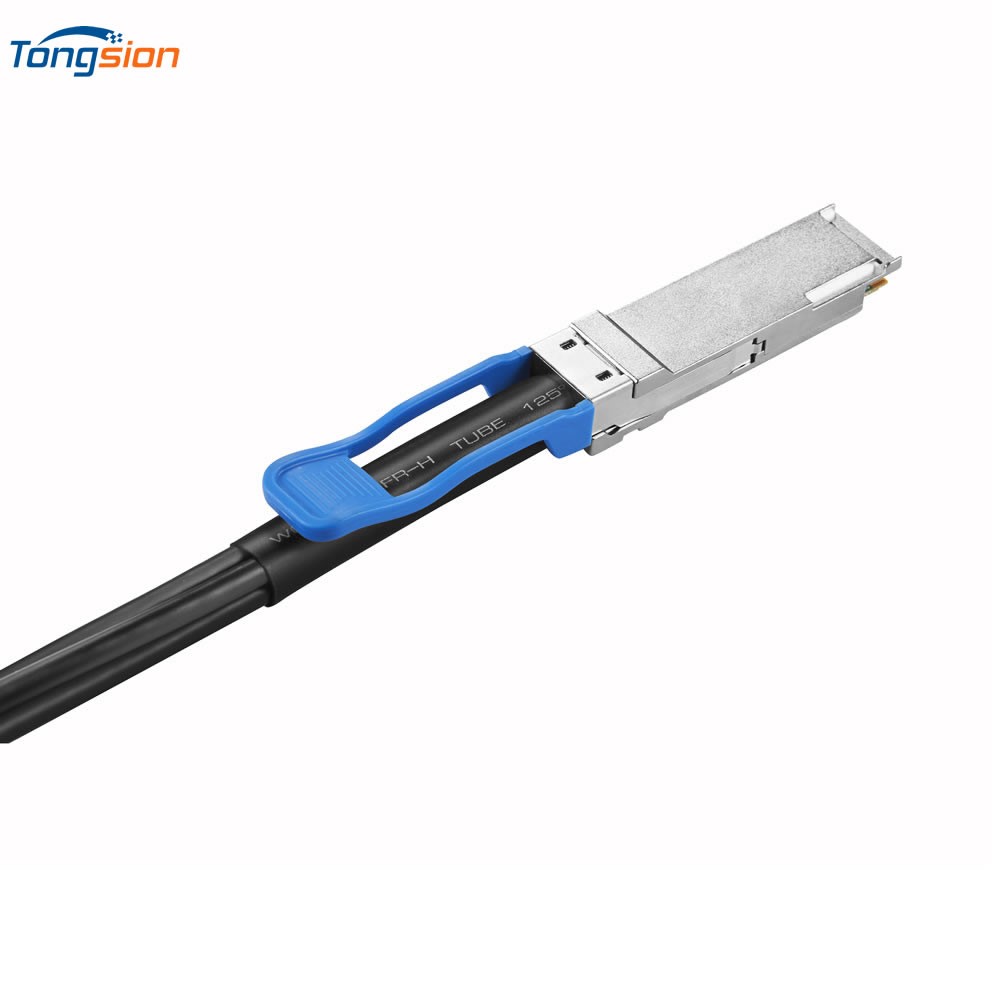

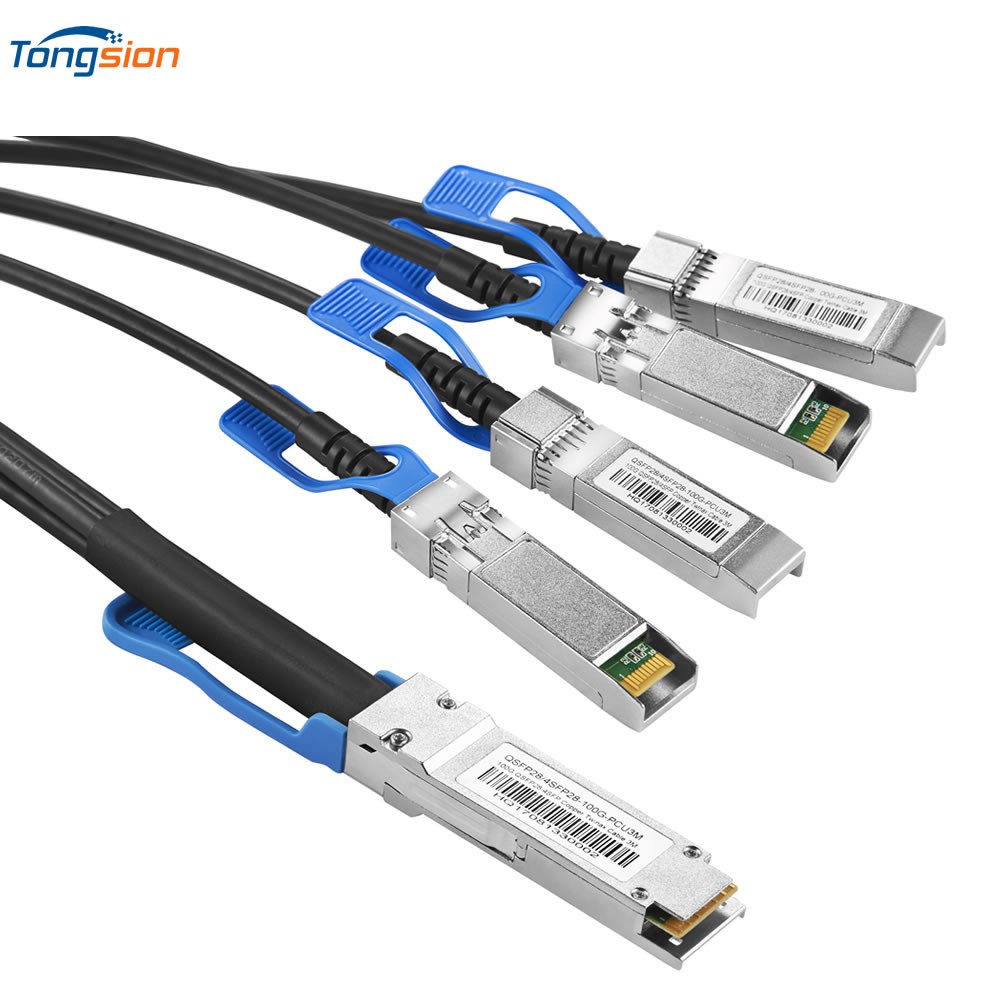

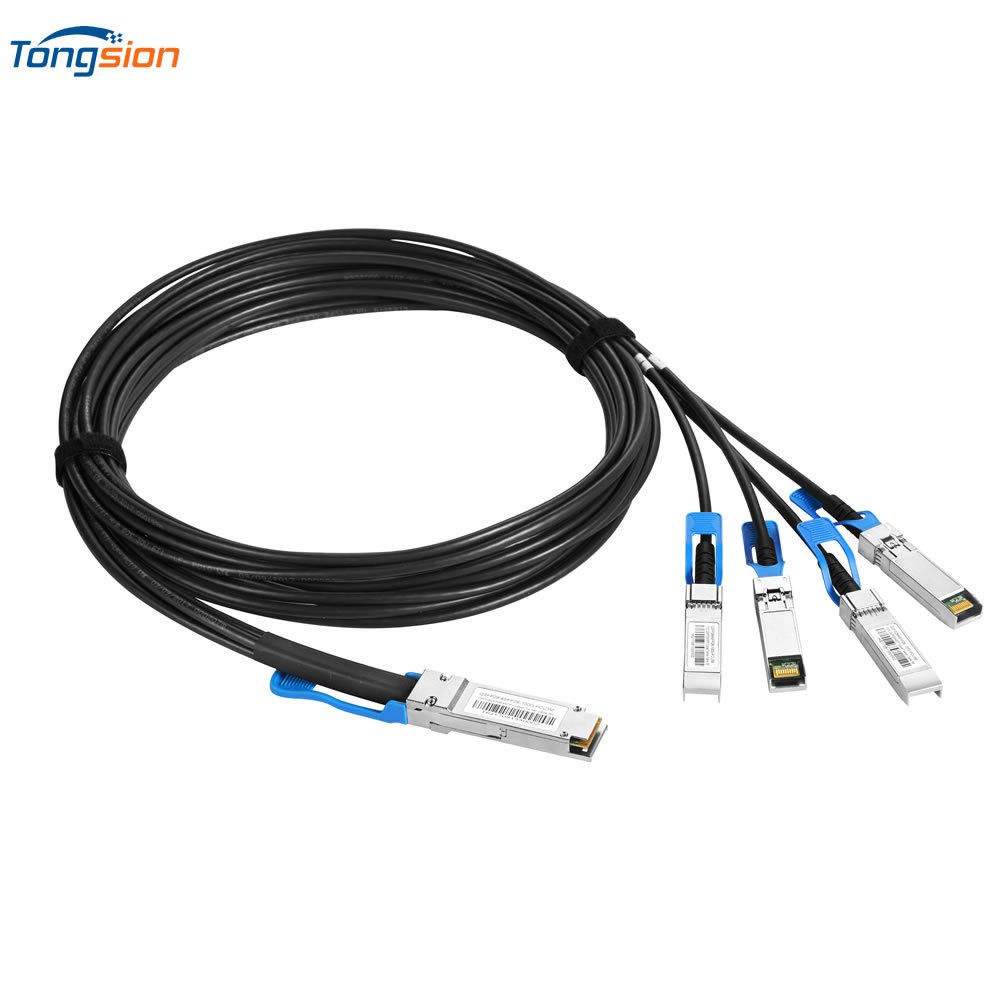

Product Picture

Ordering information

SFP+ Cable SFF8432 to SFP10G	0.5M	1M	2M	3M	5M	7M
SFP+ Active Cable SFF-8432		1M	2M	3M	5M	7M	10M	12M	15M
XFP Active Cable	0.5M	1M	2M	3M	5M	7M	10M
QSFP+ to QSFP Cable	0.5M	1M	2M	3M	5M	7M
QSFP+ to 4SFP+ Cable	0.5M	1M	2M	3M	5M
Mini SAS 8644 Cable	0.5M	1M	2M	3M	5M	7M	10M
Mini SAS 8088 Cable	0.5M	1M	2M	3M	5M	7M	10M	12M
SFP+ AOC Cable	1M	2M	3M	5M	10M	15M	20M	50M	100M

SFP compatible brand: Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Arista, Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.


Shipping and Payment

Shipping

Shipment: DHL, UPS, FedEx, TNT, EMS, By air or by sea

Delivery time: 3-7 working days after received payment receipt

Packing: standard export packing or customized packing as your request

Port: Shenzhen or Hongkong

Professional goods shipping forwarder

Service:7x24 hours reply

Payment

Payment Terms: T/T, Paypal, Western Union, Payoneer, MoneyGram

Company Information

FAQ

1.    Are you the real manufacturer?
Yes. We are direct manufacturers of optical transceiver, media converter, POE switch, DAC/AOC cables, Patch cord, Fast connector and so on.
2.    Do you offer Compatible Services?
Yes, we offer compatible service with Cisco, Nortel, Huawei, Extreme, Foundry, Alcatel, Allied, HP, 3COM, Juniper, Enterasys....
3.    Does Tongsion accept a small order?
Yes, it is available. Tongsion support new projects of our customers and a long-term trustworthy relationship always starts from a small order.
4.    Can you supply OEM products under our brand?
Yes, we are manufacturer, we accept OEM service, you just need send us your detailed requirements.
5.   What payment methods do you support?
The methods are followed: T/T, Trade Assurance, Western Union and PayPal, Payoneer, MoneyGram.
6.   Do you support sample service?
Of course, all of our products support sample services, samples are divided into paid and free
7. What if there is quality problem when we get the goods?
If there is quality problem, you can take pictures for our reference, our QC department will check the problem and give best solutions to you, refund or return.
