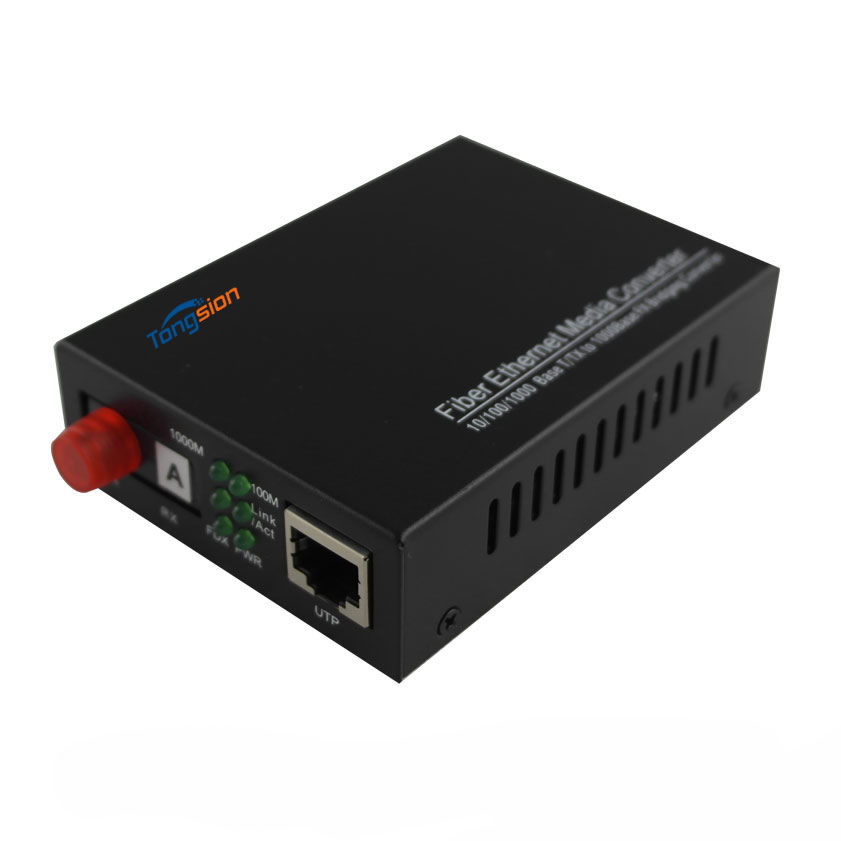

10/100/1000M Simplex SM 20KM FC Media Converter

Place of Original: China
Brand Name: Tongsion/OEM
Model Number: TS-1G1E-A/B20
MOQ: 1Pair
Price: Negotiable
Packing Details: Plastic bag +inner box+outer carton
Delivery Time: 4-5 working days after payment
Payment Term: T/T, paypal, Western Union, Payoneer
Supply Ability: 50000pcs/Month


Ethernet Fiber Media Converter 10/100/1000M Singlemode Single Fiber To Rj45 Media Converter

Description

10/100/1000M adaptive fast Ethernet optical Media Converter is a new product used for optical transmission via high-speed Ethernet. It is capable of switching between twisted pair and optical and relaying across 10/100/1000Base-TX to 1000Base-FX network segments, meeting long-distance, high-speed and high-broadband fast Ethernet workgroup users’ needs, achieving high-speed remote interconnection for up to 100 km's relay-free computer data network. With steady and reliable performance, design in accordance with Ethernet standard and lightning protection, it is particularly applicable to a wide range of fields requiring a variety of broadband data network and high-reliability data transmission or dedicated IP data transfer network, such as telecommunication, cable television, railway, military, finance and securities, customs, civil aviation, shipping, power, water conservancy and oilfield etc, and is an ideal type of facility to build broadband campus network, cable TV and intelligent broadband FTTB/FTTH networks.

Product NameMedia Converter, Fiber SwitchDatarate10/100/1000M
Wavelength1310/1550nmTransmission Distance20KM/40KM/60KM/80KM/100KM/120KM
ConnectorSC ST FCFiber TypeSimplex, Single Mode
Power SupplyExternal/internal Power SupplyWarranty3 Years
High Lightsfp media converter, gigabit ethernet media converter



Technical Parameters

Technical Parameters for 10/100/1000M Adaptive Fast Ethernet Optical Media Converter

Number of Network Ports1 channel
Number of Optical Ports1 channel1.jpg
NIC Transmission Rate10/100/1000Mbit/s
NIC Transmission Mode10/100/1000M adaptive with support for automatic inversion of MDI/MDIX
Optical Port Transmission Rate1000Mbit/s
Operating VoltageAC 220V or DC +5V
Overall Power<3W
Network PortsRJ45 port
Optical SpecificationsOptical Port: SC, FC,ST (Optional)
Multi-Mode: 50/125, 62.5/125um Single-Mode: 8.3/125, 8.7/125um, 8/125,10/125um
Wavelength: Single-Mode: 1310/1550nm
Data ChannelIEEE802.3x and collision base backpressure supported
Working Mode: Full/half duplex supported Transmission Rate: 1000Mbit/s
with error rate of zero


Feature

10/100/1000M Dual fiber
Connector typeSCSCSCSCSC
Fiber typeMulti-modeSingle-modeSingle-modeSingle-modeSingle-mode
Wavelength850nm1310nm1310nm1550nm1550nm
Max Distance62.5µm: 224m20Km40Km60Km80Km
50µm: 550m
Min TX PWR-11.0dBm-9.0dBm-4.0dBm-8.0dBm-3.0dBm
Max TX PWR-6.0dBm-5.0dBm0dBm0dBm0dBm
Sensitivity< -18dBm< -21dBm< -24dBm< -25dBm< -25dBm
Link Budget7.0dBm12.0dBm20.0dBm17.0dBm22.0dBm




10/100/1000M Single fiber
Connector typeSCSCSCSC
Fiber typeSingle-modeSingle-modeSingle-modeSingle-mode
Wavelength1310/1550nm1310/1550nm1310/1550nm1490/1550nm
Max Distance20Km40Km60Km80Km
Min TX PWR-10.0dBm-4.0/-8dBm0/-5.0dBm-1dBm
Max TX PWR-4.0dBm0dBm3/0dBm3dBm
Sensitivity< -22dBm< -25dBm<-25dBm< -25dBm
Link Budget12.0dBm20/17dBm25/20dBm24.0dBm



Specificaion

1. Operating standards: IEEE802.3z/AB, 1000Base-T and 1000Base-SX/LX

2. Ambient temperature: 0 ~ +50°C Storage temperature: -20 ~ +70°C Humidity: 5% ~ 90%

3. Connector: UTP: RJ-45,10/100/1000Mbps; Fiber: SC,1000Mbps

4. Cable : UTP cable: Cat 5e or Cat 6 (the max distance up to 100m)
Fiber : singlemode : 8.3/125, 8.7/125, 9/125μm (distance 20-100km)

5. Flow control: Full Duplex: IEEE802.3x Half Duplex: back pressure

6. Power: DC 48V to DC 5V
7. MAC address table: 4K

8. Data Buffer: 256K



Operating Environment

1) Operating Voltage

AC 220V/ DC +5V

2) Operating Humidity

Operating Temperature: 0℃ to +50℃
Storage Temperature: -20℃ to +70℃
Humidity: 5% to 90%



Application

For intranet prepared for expansion from 100M to 1000M
For integrated data network for multimedia such as image, voice and etc.
For point-to-point computer data transmission
For computer data transmission network in a wide range of business application
For broadband campus network, cable TV and intelligent FTTB/FTTH data tape
In combination with switchboard or other computer network facilitates for: chain-type, star-type and ring-type network and other computer networks

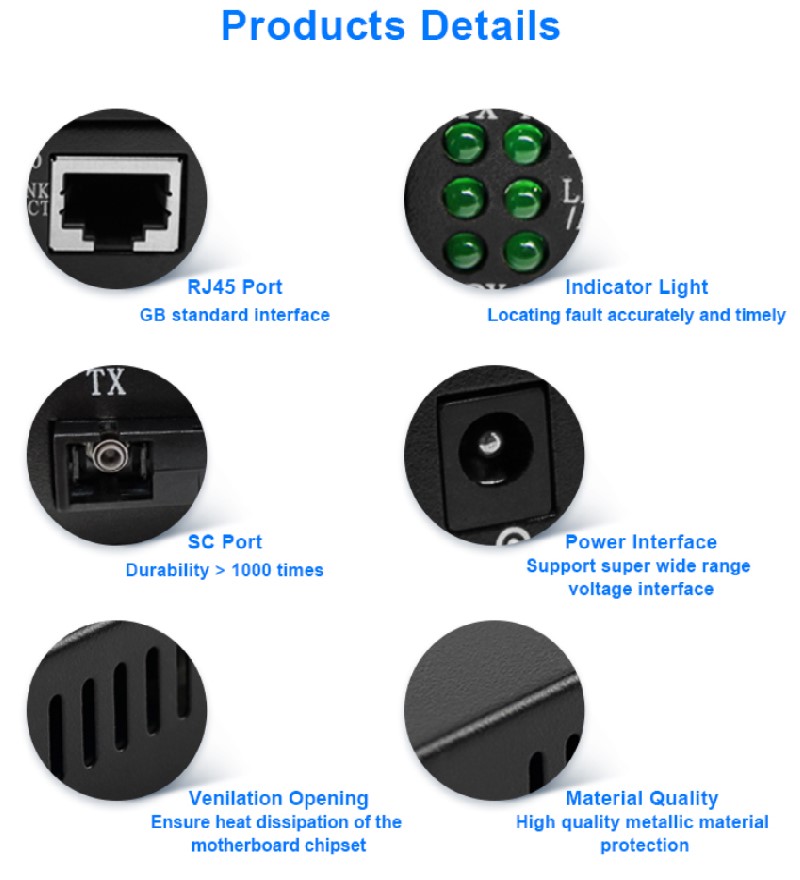

Product Pictures



Shipping and Payment




SHIPPING

*Shipment: DHL, UPS, FedEx, TNT, EMS, by air or by sea

*Delivery time: 3-7 working days after received payment receipt

*Packing: standard export packing or customized packing as your request

*Port: Shenzhen or Hongkong

*Professional goods shipping forwarder

*Service: 7x24 hours reply

PAYMENT

* Payment terms: T/T, Paypal, Western Union
* Online trade assurance order


Company Information



FAQ

1.    Are you the real manufacturer?

Yes. We are direct manufacturers of optical transceiver, media converter, POE switch, DAC/AOC cables, Patch cord, Fast connector and so on.

2.    Do you offer Compatible Services?

Yes, we offer compatible service with Cisco, Nortel, Huawei, Extreme, Foundry, Alcatel, Allied, HP, 3COM, Juniper, Enterasys....

3.    Does Tongsion accept a small order?

Yes, it is available. Tongsion support new projects of our customers and a long-term trustworthy relationship always starts from a small order.

4.    Can you supply OEM products under our brand?

Yes, we are manufacturer, we accept OEM service, you just need send us your detailed requirements.

5.   What payment methods do you support?

The methods are followed: T/T, Trade Assurance, Western Union and PayPal.

6.   Do you support sample service?

Of course, all of our products support sample services, samples are divided into paid and free

7.  What if there is quality problem when we get the goods?

If there is quality problem, you can take pictures for our reference, our QC department will check the problem and give best solutions to you, refund or return.
