1.25G 1310nm 10KM SFP Module

Place of Original: China
Brand Name: Tongsion/OEM
Model Number: TS-SFP-0210
MOQ: 1 PC
Price: Negotiable
Packing Details: 10pcs/plastic tray
Delivery Time: 3-5 working days after payment
Payment Term: T/T, Paypal, Western Union, Payoneer
Supply Ability: 50000pcs/Month



1.25G sfp Modules 1310nm 10KM LC Dual Fiber Optic Transceiver Compatible With Cisco Huawei HP

Description



The SFP transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps and 20km transmission distance with SMF.The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472.



Specification



1. Dual data-rate of 1.25Gbps/1.063Gbps operation

2. 1310nm FP laser and PIN photodetector for 10/20/40km transmission

3. Compliant with SFP MSA and SFF-8472 with duplex LC receptacle

4. Digital Diagnostic Monitoring:

5. Internal Calibration or External Calibration

6. Compatible with SONET OC-24-LR-1

7. Operating case temperature: Standard: 0 to +70°C, Industrial: -40 to +85°C

8. Compatible with RoHS

9. +3.3V single power supply

Feature

Multi-sourced SFP package with dual LC/PC receptacles;
Single mode dual fibers transmission
Up to 10~80Km with 9/125μm SMF;
AC coupled for Rx and Tx side
Two temperature ranges: 0°C to +70°C for commercial level, -40°C to +85°C for industrial level;
operates at data rate 1.25Gbps;
Complies with MIL-STD-883/GR-468
Complies with lots of brands of switch such as cisco h3c…….
Can be with or without DDM

Data Rate1.25GFiber ModeSingle Mode Fiber (SMF)
Types of InterfaceLCTypes of LaserFP
Operating TemperatureStandard 0~70°COperating Humidity0%~90% RH (non condensing)
Transmission distance10/20/40kmModes of CommunicationsDuplex
Wavelength1310nmHot Pluggable Times200
Receiver Sensitivity<-23dBmExtinction Ratio>9dB
Saturated Optical Power-3dBmPower Consumption<3W
Weight0.024kgPower Supply+3.3V
Hot Pluggable Times200Average Output Power-9 ~ -3dBm



Product parameters:

Part No.WavelengthConnectorTemp.

TX Power

(dBm)

RX Sens

(Max.) (dBm)

DDMIDistance
TS-SFP-0210T 1310FP/rx 1100~1610LC-20 to 70-9 to-1-22F10km
TS-SFP-0220T 1310FP/rx 1100~1610LC-20 to 70-9 to-0-23F20km
TS-SFP-0240T 1550DFP /R 1100~1610LC-20 to 70-5~0-24T40Km
TS-SFP-0280T 1610 CWDM/ R 1100~1610LC-20 to 70-3 to 2-26T80km



Applications

1. Gigabit Ethernet

2. Fiber Channel

3. Switch to Switch interface

4. Switched backplane applications

5. Router/Server interface

6. Other optical transmission systems

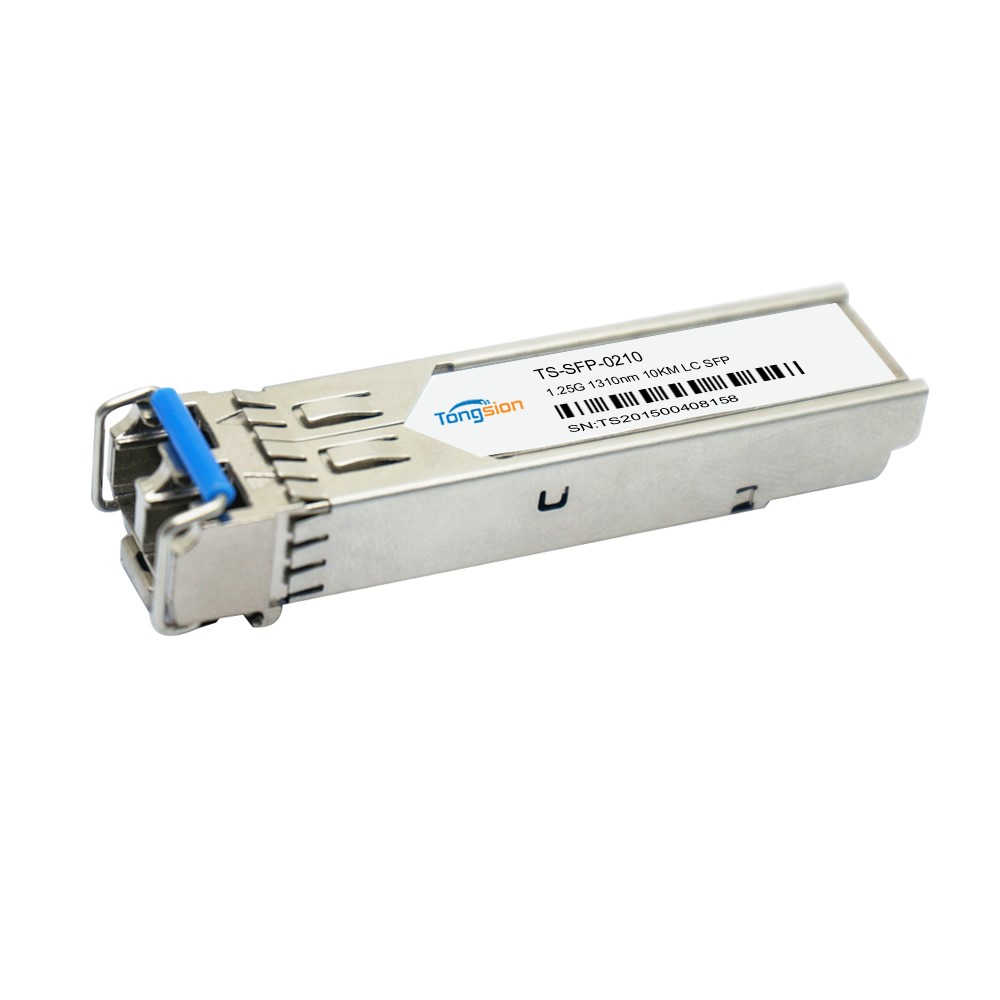

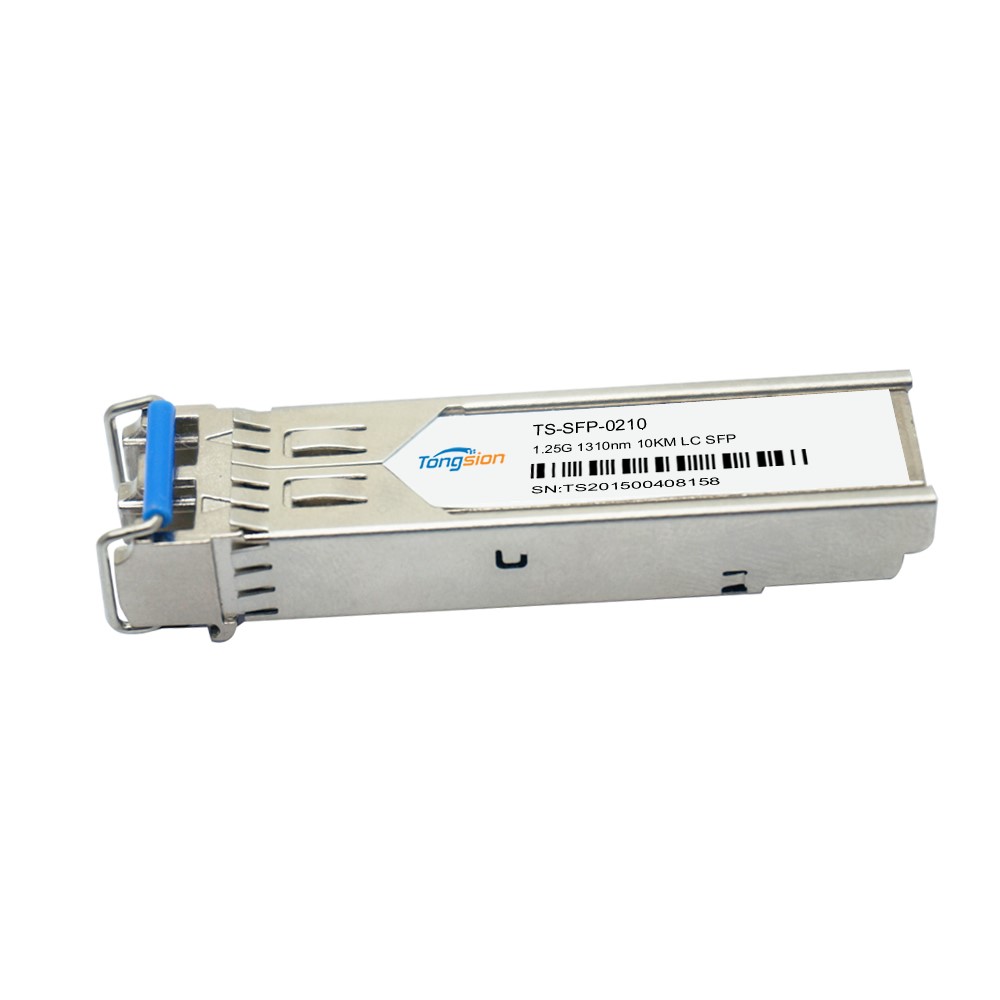

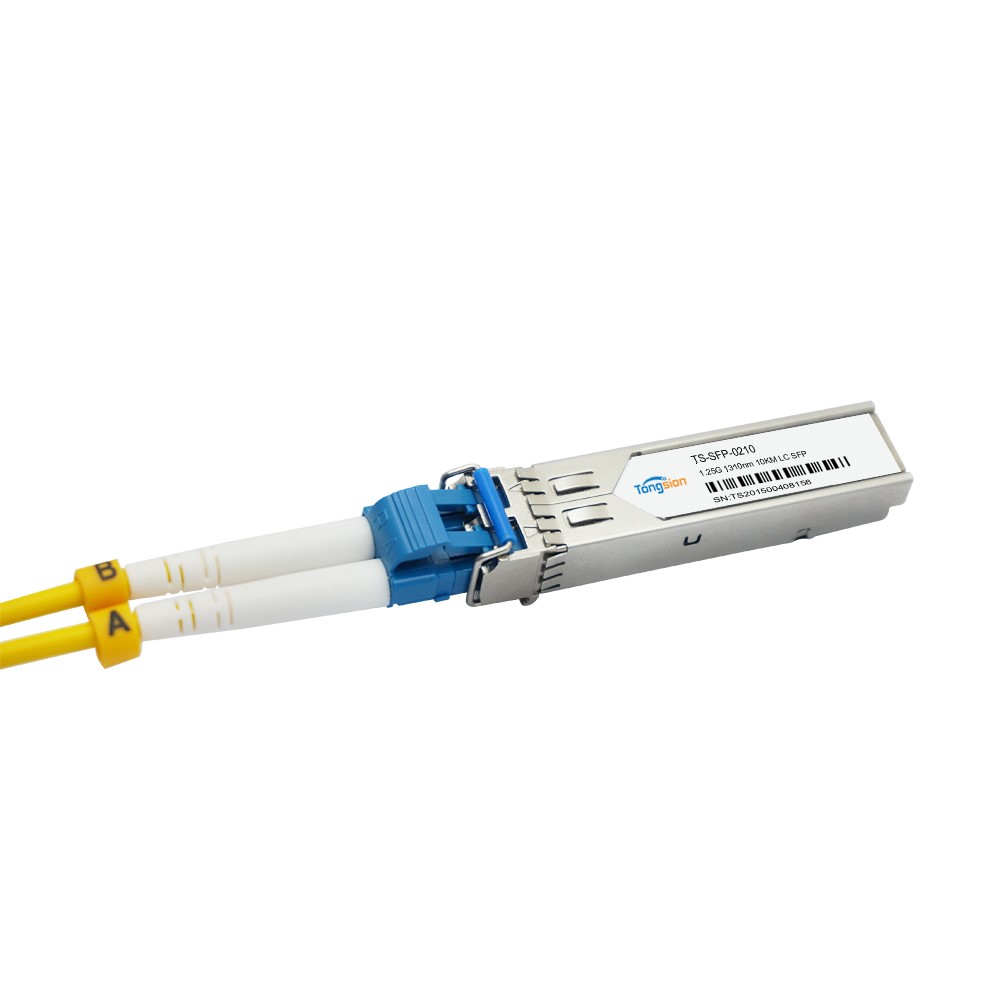

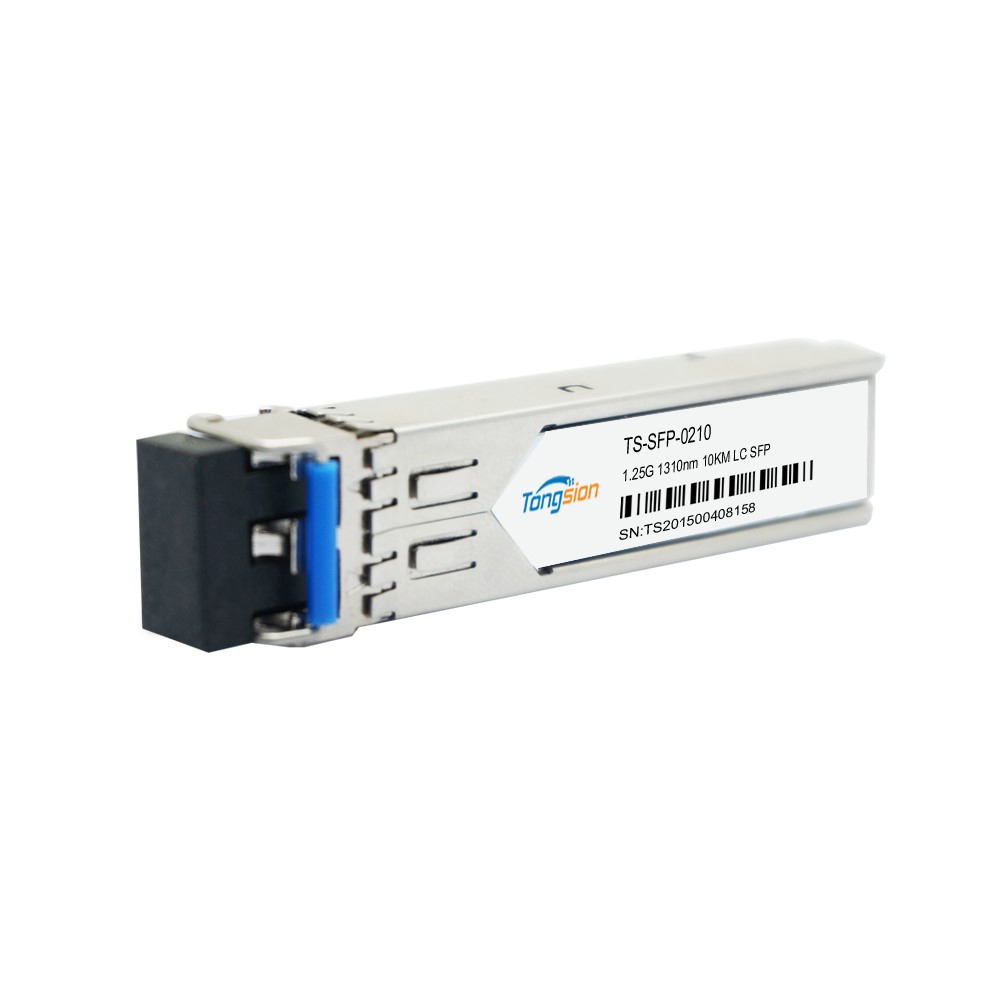

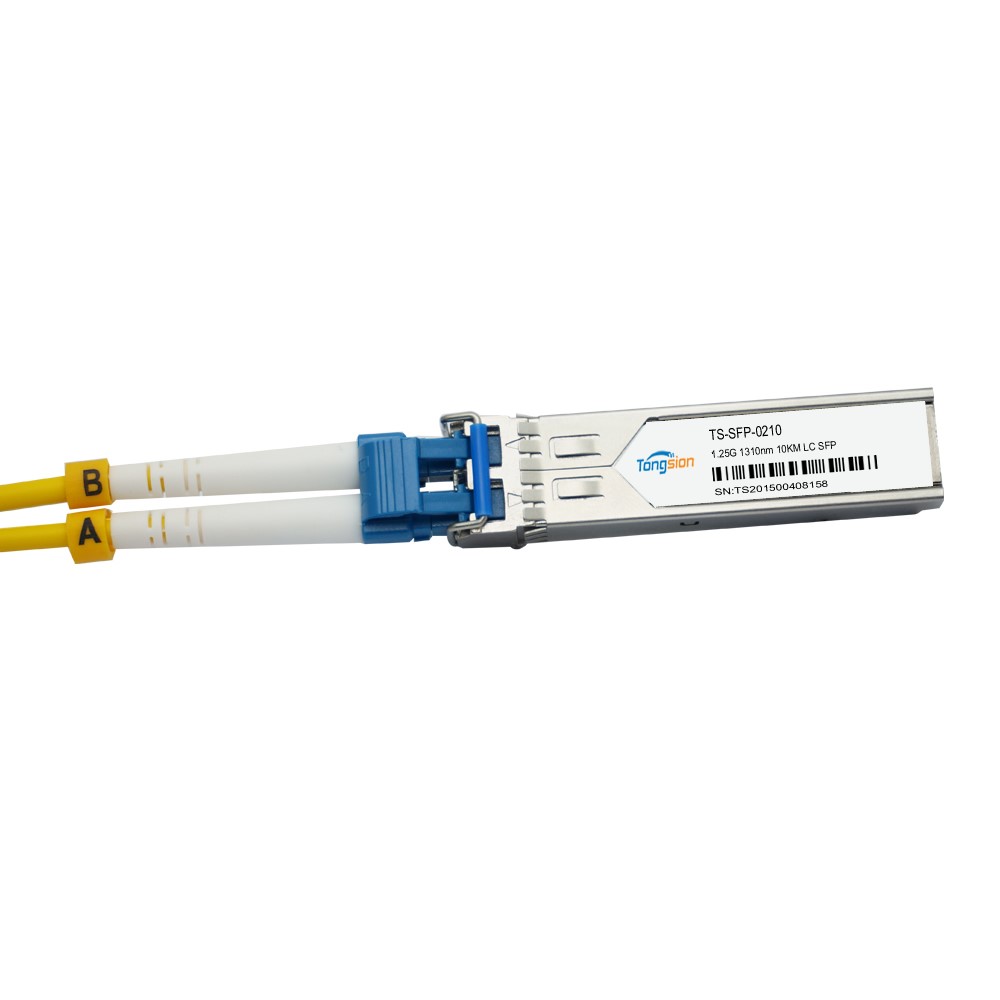

Product Pictures







FAQ

1.    Are you the real manufacturer?

Yes. We are direct manufacturers of optical transceiver, media converter, POE switch, DAC/AOC cables, Patch cord, Fast connector and so on.

2.    Do you offer Compatible Services?

Yes, we offer compatible service with Cisco, Nortel, Huawei, Extreme, Foundry, Alcatel, Allied, HP, 3COM, Juniper, Enterasys....

3.    Does Tongsion accept a small order?

Yes, it is available. Tongsion support new projects of our customers and a long-term trustworthy relationship always starts from a small order.

4.    Can you supply OEM products under our brand?

Yes, we are manufacturer, we accept OEM service, you just need send us your detailed requirements.

5.   What payment methods do you support?

The methods are followed: T/T, Trade Assurance, Western Union and PayPal.

6.   Do you support sample service?

Of course, all of our products support sample services, samples are divided into paid and free

7. What if there is quality problem when we get the goods?

If there is quality problem, you can take pictures for our reference, our QC department will check the problem and give best solutions to you, refund or return.
